RC-63DLN – Overview 5
3.1 The RC-63DLN Room Controller Front Panel
This section defines the front panel of the RC-63DLN.

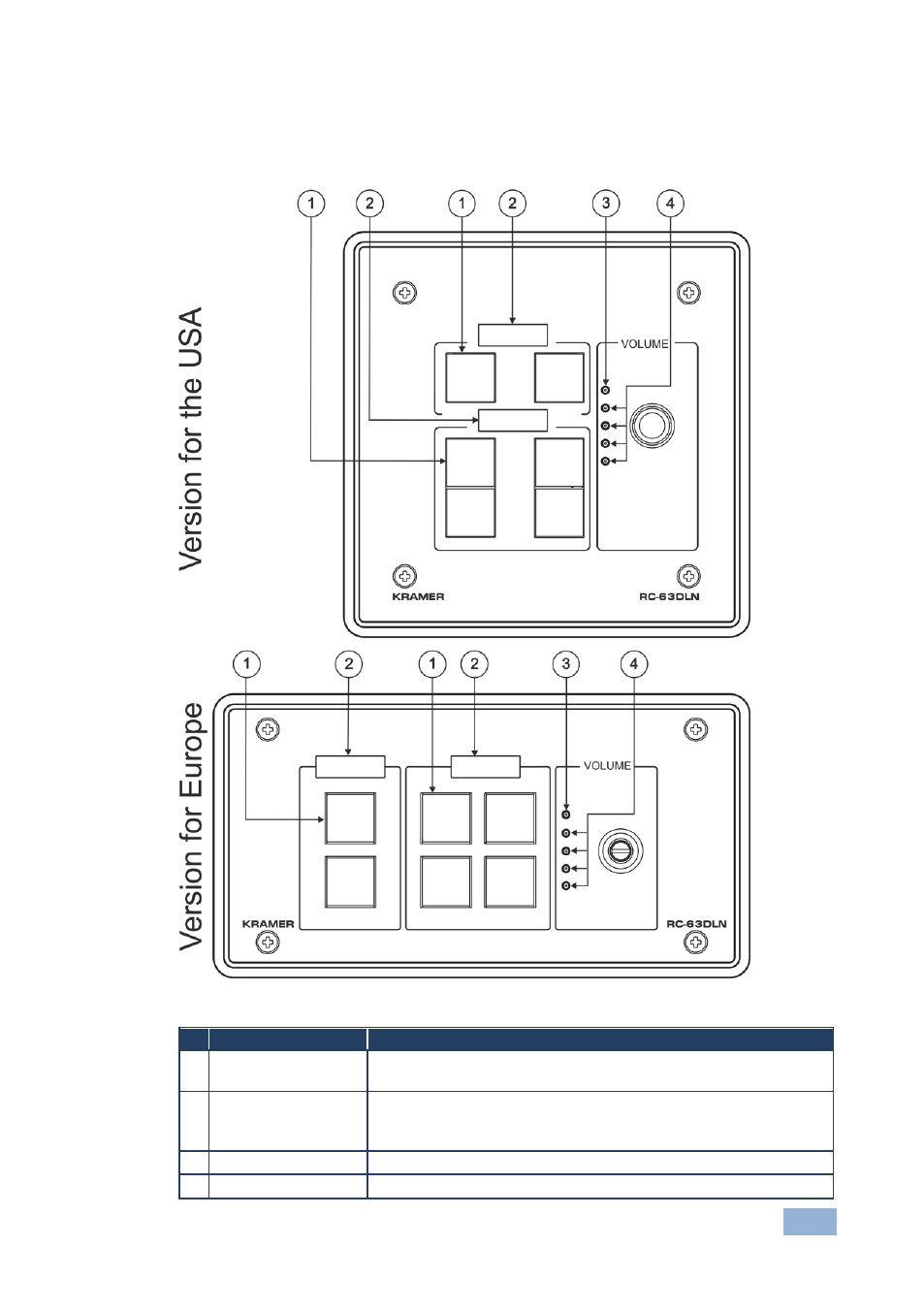

Figure 1: RC-63DLN Front Panel
# Feature Function
1 6 Configurable
Buttons
A 2-button group and a 4-button group. Function is programmed
by the K-Config Configuration software
2 2 LCD Labels LCD on a blue background, displays up to 8 characters at once
(programmed via the USB port). Set by the K-Config configuration
software
3 VOLUME LED Lights red, indicating maximum volume
4 VOLUME LEDs Light green, indicating volume level
