10 RC-63DLN - Connecting the RC-63DLN Room Controller
4 Connecting the RC-63DLN Room Controller
Always switch off the power to each device before connecting it to your
RC-63DLN. After connecting your RC-63DLN, connect its power and then
switch on the power to each device.
To connect the RC-63DLN, as shown in the example in Figure 5 , do the following:
1. Connect the RELAY terminal block connectors as follows:
 Connect REL 1 and COM to the screen
 Connect REL 2 (for example, to a lighting system, not shown in Figure 5 )
2. Connect the IR port (IR and GND terminal blocks) to an IR emitter and
attach the emitter to an auxiliary device (for example, a DVD player).
3. Connect the RS-232 port (GND, Tx and Rx) to the projector (see Section
4.1
).
4. Connect the K-NET ports to any RC devices with K-NET (for example, the
Kramer RC-74DL and SL-12), see Section 4.2 .
Note that the RC-63DLN receives power over the K-NET port via the connected master
room controller.

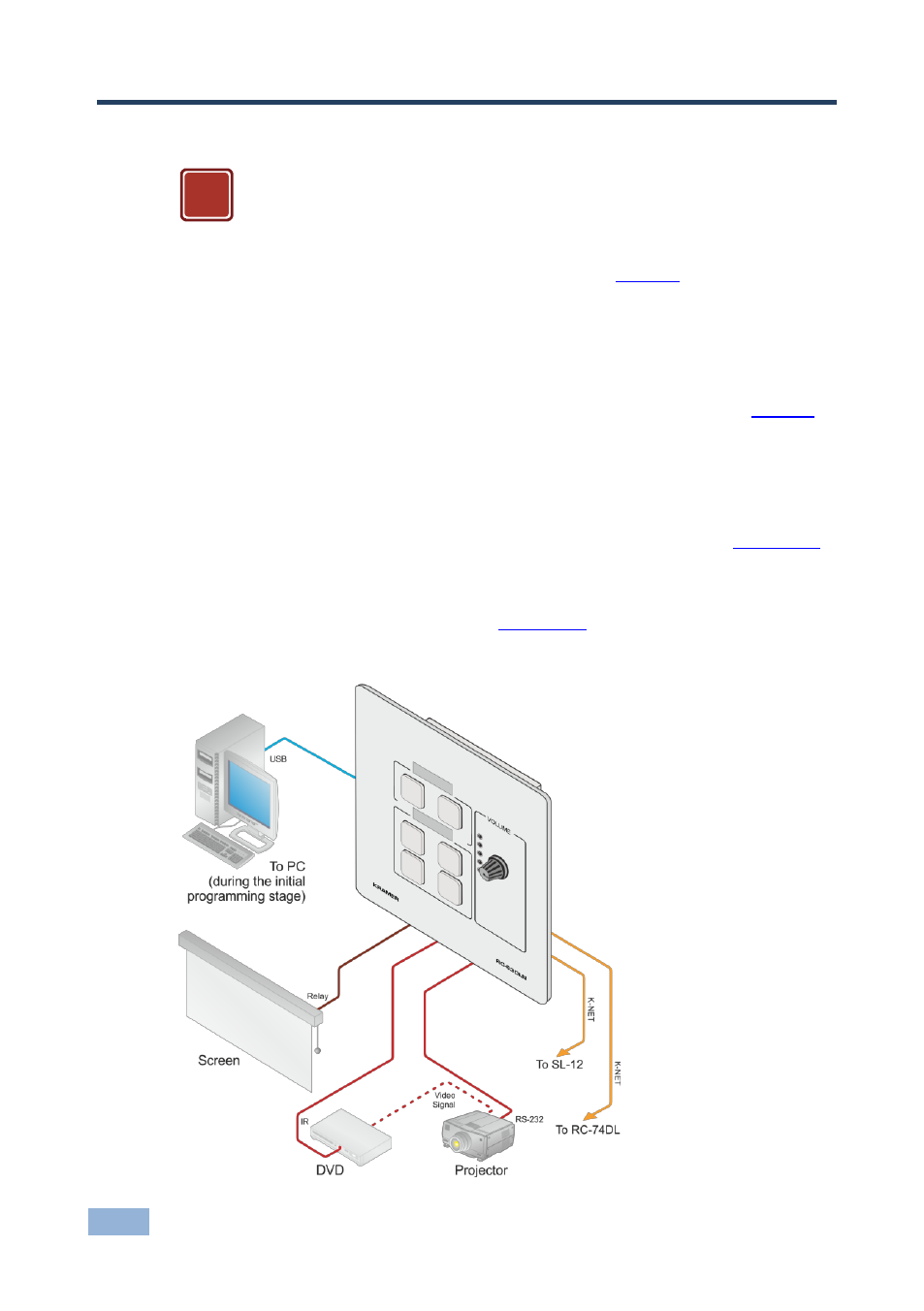

Figure 5: Connecting the RC-63DLN
!
