3.5 Your VS-81X 8x1 Balanced Audio Switcher
The Kramer VS-81X, 8x1 Balanced Audio Switcher is a high quality
mechanical 8x1 switcher for mono balanced audio using XLR connectors.
The VS-81X is designed for applications requiring a compact desktop unit
for routing audio signals. High quality switching components provide
excellent isolation between inputs. Its unpowered passive design is
advantageous for applications in which various regulatory compliances
would otherwise be required. The "hard-wired" signal path can also switch
other signal formats.
Figure 5 and Table 9 define the VS-81X, 8x1 Balanced Audio Switcher.
Table 10 gives the technical specifications for the VS-81X.

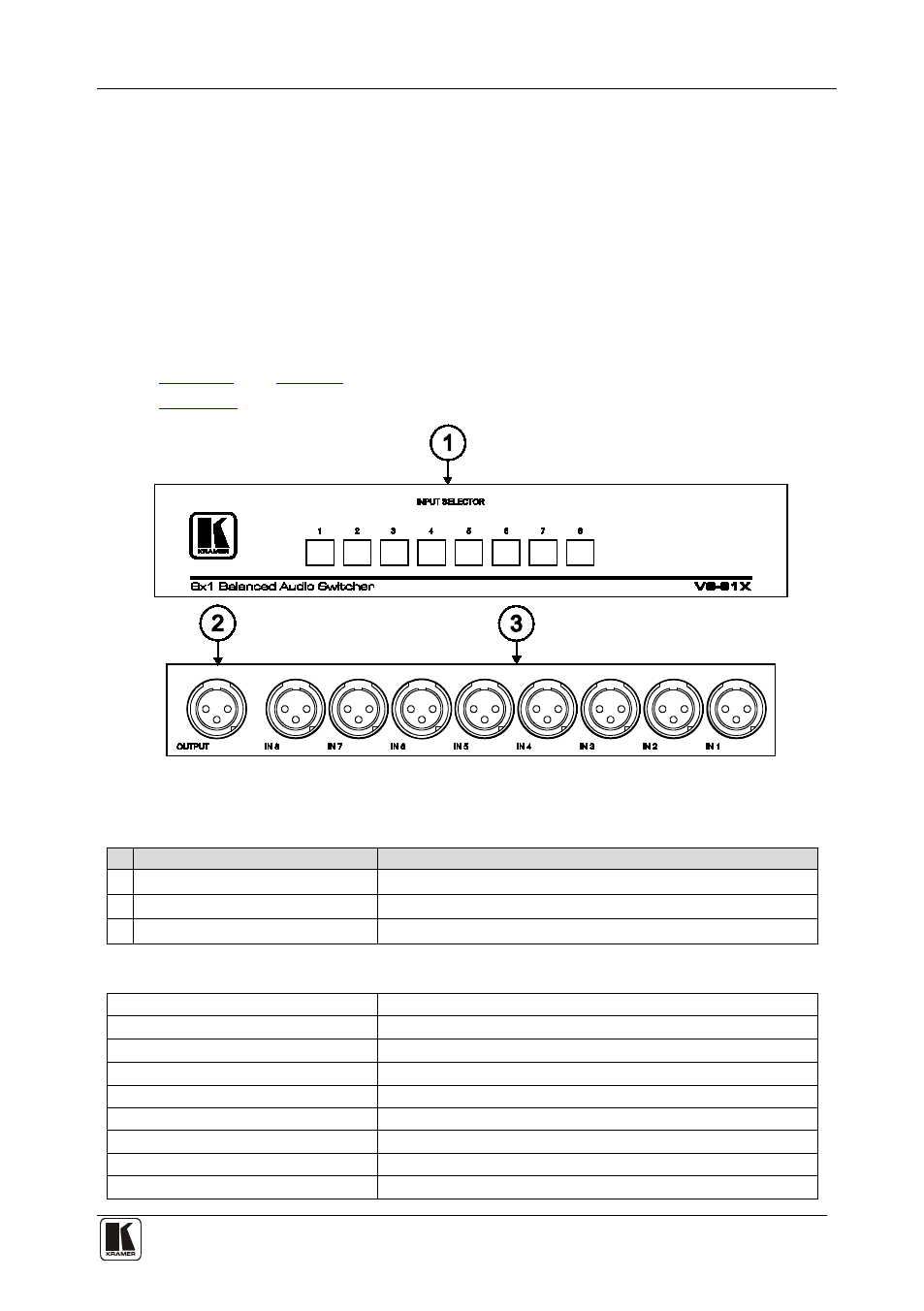

Figure 5: VS-81X 8x1 Balanced Audio Switcher
Table 9: VS-81X Functions
# Feature Function
1 INPUT Selector Buttons Select the audio source (from 1 to 8) to route to the output
2 AUDIO OUTPUT XLR connector Connect to the audio acceptor
3 AUDIO input XLR connectors Connect to the audio sources (from 1 to 8)
Table 10: VS-81X Technical Specifications
INPUTS: 8 balanced audio, line or mic level, on XLR connectors
OUTPUT: 1 balanced audio, line or mic level, on an XLR connector
SWITCHING SYSTEM: Mechanical, break-before-make
CROSSPOINTS: 1 of 8
SIGNAL LEVELS: Up to 36Vpp
BANDWIDTH (-3dB): 25kHz
DIMENSIONS: 25.5cm x 10.2cm x 4.5cm (10" x 4" x 1.7") W, D, H.
WEIGHT: 0.82kg (1.8lbs) approx.
OPTIONS: RK-81X 19" rack adapter
