Table 2: VS-44AV Technical Specifications
INPUTS: 4 video, 1Vpp/75
Ω on BNC connectors
4 audio stereo, 1Vpp nominal on RCA connectors
OUTPUTS: 4 video, 1Vpp/75
Ω on BNC connectors
4 audio stereo, 1Vpp nominal on RCA connectors
SWITCHING SYSTEM: Mechanical, break-before-make
CROSSPOINTS: 16 for video, 16x2 for audio, 4 active at any given time
CROSSTALK: -42dB @5MHz
BANDWIDTH (-3dB): 220MHz (video), 100kHz (audio)
SIGNAL LEVELS: Up to 3Vpp video, 36Vpp audio
DIMENSIONS: 19" x 7" x 1U W, D, H rack mountable
WEIGHT: 1.6kg (3.5lbs) approx.
3.2 Your VS-81AV 8x1 Video/Audio-Stereo Switcher
The Kramer VS-81AV, 8x1 Video/Audio-Stereo Switcher is a high-quality
mechanical 8x1 switcher for composite video and stereo audio signals.
The VS-81AV is designed for applications requiring an unpowered rack-
mountable unit for routing of video and stereo audio signals. Audio is
always switched together with the corresponding video signal and
unselected video inputs are terminated via 75
Ω resistors. High-quality
switching components provide excellent isolation between inputs. Its
unpowered passive design is advantageous for applications in which various
regulatory compliances would otherwise be required. The "hard-wired"
signal path offers excellent bandwidth, and can even switch other signal
formats.
Figure 2 and Table 3 define the VS-81AV 8x1 Video/Audio-Stereo
Switcher. Table 4 gives the technical specifications for the VS-81AV.

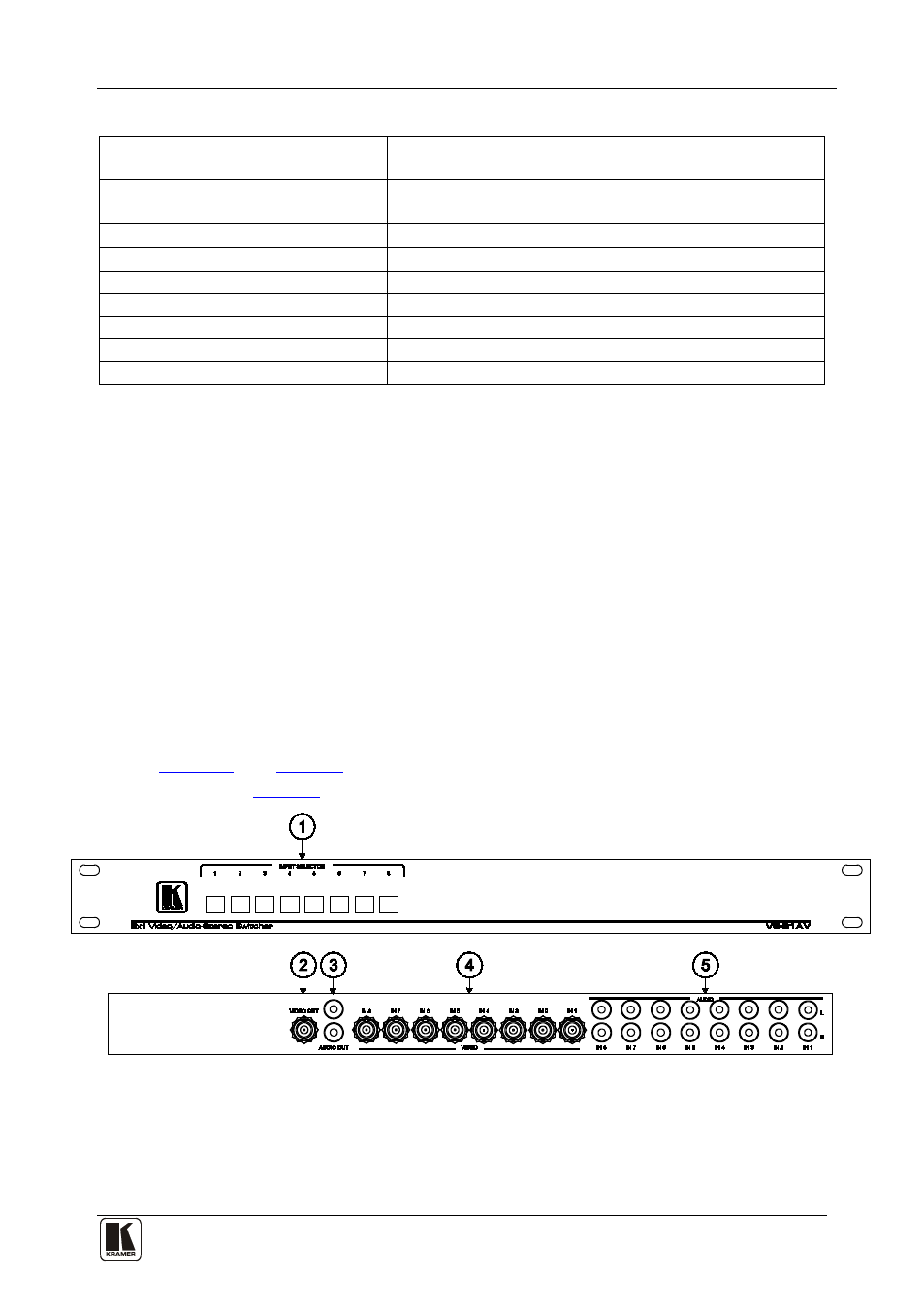

Figure 2: VS-81AV 8x1 Video/Audio-Stereo Switcher
