Connecting Kramer Mechanical Switchers
10
4.3 Connecting a VS-81AV 8x1 Video/Audio-Stereo Switcher
To connect your VS-81AV 8x1 Video/Audio-Stereo Switcher , as the
example in Figure 8 illustrates:
1. Connect up to 8 composite video sources to the VIDEO IN BNC
connectors.
2. Connect up to 8 audio sources to the AUDIO IN RCA connectors making
sure that the audio and video inputs match (that is, from Player 1, connect
the video to VIDEO IN 1 and the audio to AUDIO IN 1, and so on.)
3. Connect the VIDEO OUT BNC connector to the video acceptor (for
example, a composite video display).
4. Connect the AUDIO OUT RCA connectors to the audio acceptor (for
example, a composite video display with speakers).
Pushing a front panel INPUT selector button routes the selected AV source
to the AV acceptor.

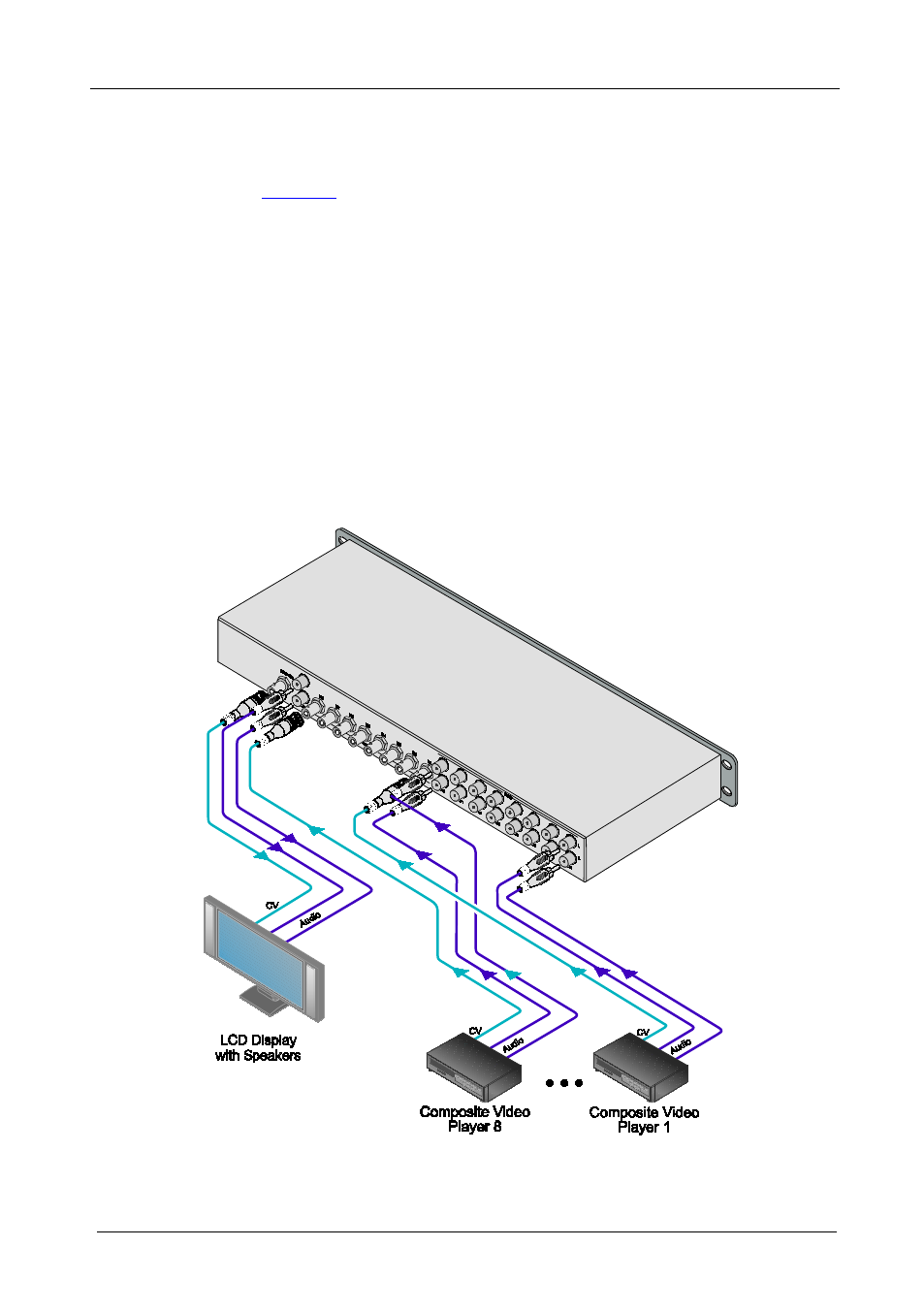

Figure 8: Connecting a VS-81AV 8x1 Video/Audio-Stereo Switcher
