Connecting Kramer Mechanical Switchers
9
9
4.2 Connecting a VS-81X Balanced Audio Switcher
To connect your VS-81X Balanced Audio Switcher, as the example in
Figure 7 illustrates:
1. Connect up to 8 balanced audio sources to the 8 XLR input connectors.
2. Connect the XLR OUTPUT connector to the audio acceptor.
Pushing a front panel INPUT selector button routes that balanced audio
source to the balanced audio acceptor.

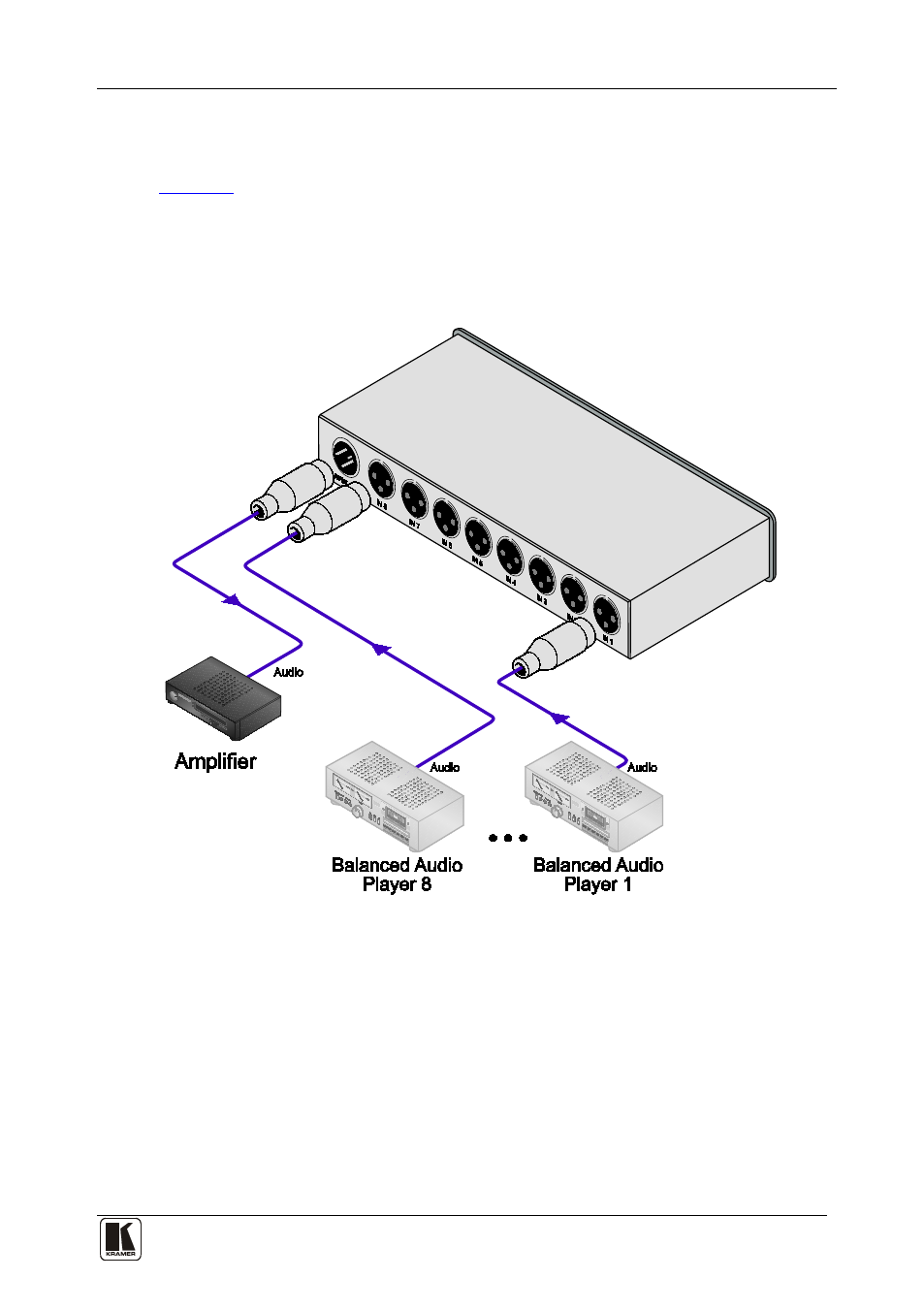

Figure 7: Connecting a VS-81X Balanced Audio Switcher
