14

VS-4228 - Operating the VS-4228

5

Operating the VS-4228

Referring to the connection diagram in

Figure 5

, you see the following setup:

Master devices: Port 1 – PC

Port 2 – VTR Serial Controller

Slave devices: Port 3 – Video Player 1

Port 4 – Video Player 2

Port 8 – Video Recorder

The following examples show how to operate the VS-4228:

1. To connect the PC to Video Player 2:

Press SLAVE 4, then MASTER 1.

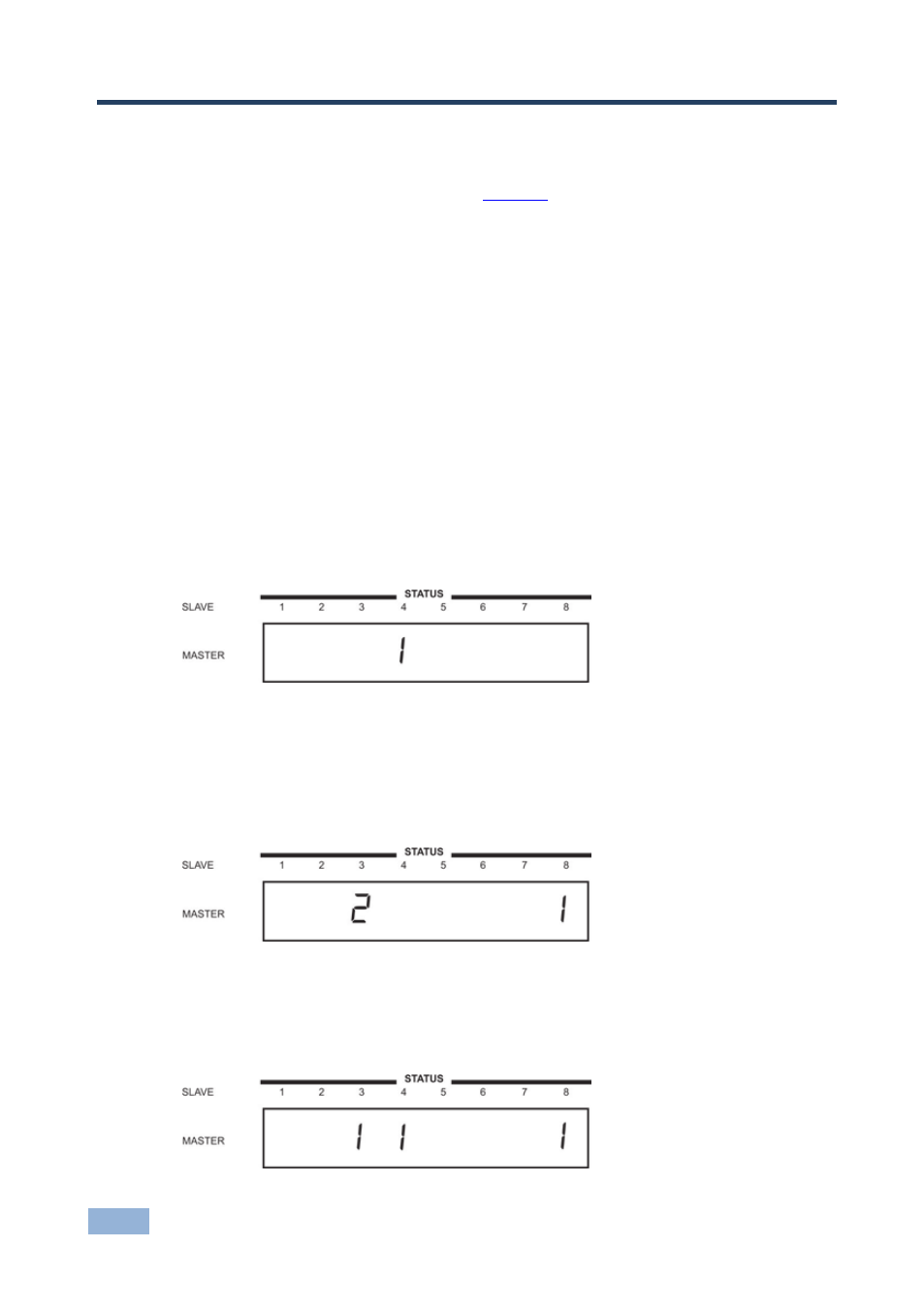

The following status displays:

2. To connect the VTR Serial Controller to Video Player 1 and PC to the Video

Recorder:

Press SLAVE 3, MASTER 2, SLAVE 8 and MASTER 1.

The following status displays:

3. To connect the PC to all slaves:

Press ALL, then MASTER 1.

The following status displays:
