P/N: 2900 - 0020021 A1
ADDENDUM: VS-1211, VS-1011, VS-811, VS-611, VS-411 User Manual
The following section is added to the manual as follows:
Connecting the Balanced/Unbalanced Stereo Audio Input/Output
The VS-1211 1 has two sets of balanced inputs (IN 1 to IN 12) that create a
balanced stereo input (left and right) and two sets of balanced outputs that
create a balanced stereo output (left and right), see Figure 4 in the user manual.

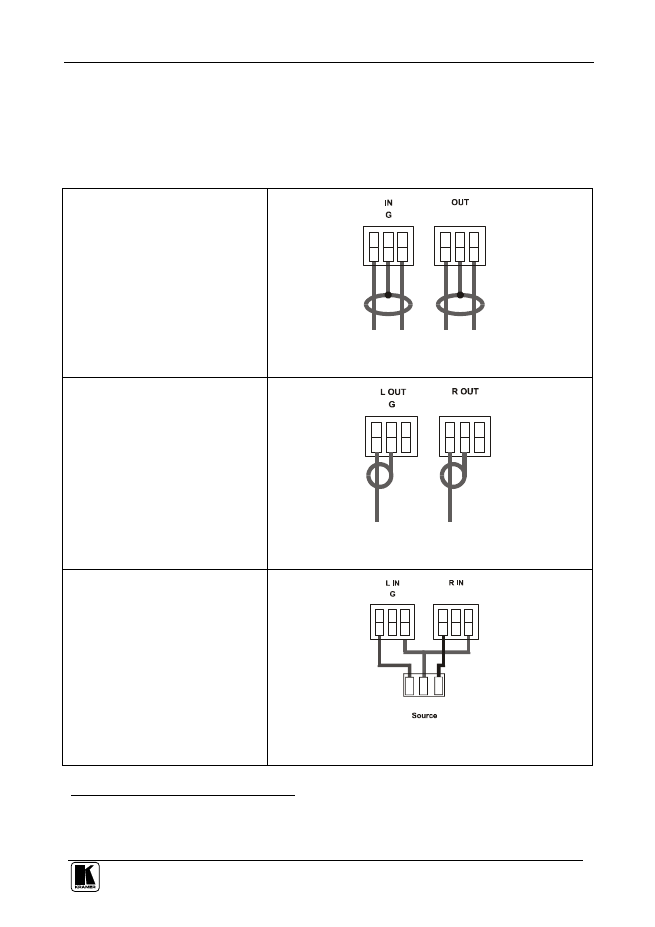

Figure 1 shows an example
of how to wire a balanced
stereo audio input/output
connection
+ - + G -
Figure 1: Connecting the Balanced Stereo Audio
Input/Output
Figure 2 illustrates how to
wire an unbalanced
acceptor to the balanced
stereo audio output of the
unit:
+ - + G -
Figure 2: Connecting the Unbalanced Stereo Audio
Output
Figure 3 illustrates how to
connect an unbalanced
source to the balanced
stereo audio input on the
VS-1211:
G R L
+ - + G -
Figure 3: Connecting an Unbalanced Source to the
Balanced Stereo Audio VS-1211 Input
1 Although only VS-1211 is mentioned, this section also applies to the VS-1011, VS-811, VS-611 and VS-411 (the user
manual also includes the VS-1201xl, VS-1001xlm, VS-801xlm, VS-601xlm and VS-401xlm to which this addendum does not
apply)
