5.1 Getting to Know Your Switcher
Most front/rear panel features of the switchers described in this manual are very similar. Therefore, only the VS-
1211 and the VS-1201xl are described and they represent the rest of the switchers. The main difference is that
the “
11” group has snap fit terminal block connectors for balanced audio and the “01xl” group has RCA
connectors for unbalanced audio.
Front/rear panel features of the VS-1211 and VS-1201xl/VS-1001xlm switchers are described in Figure 2, Table
and Table .

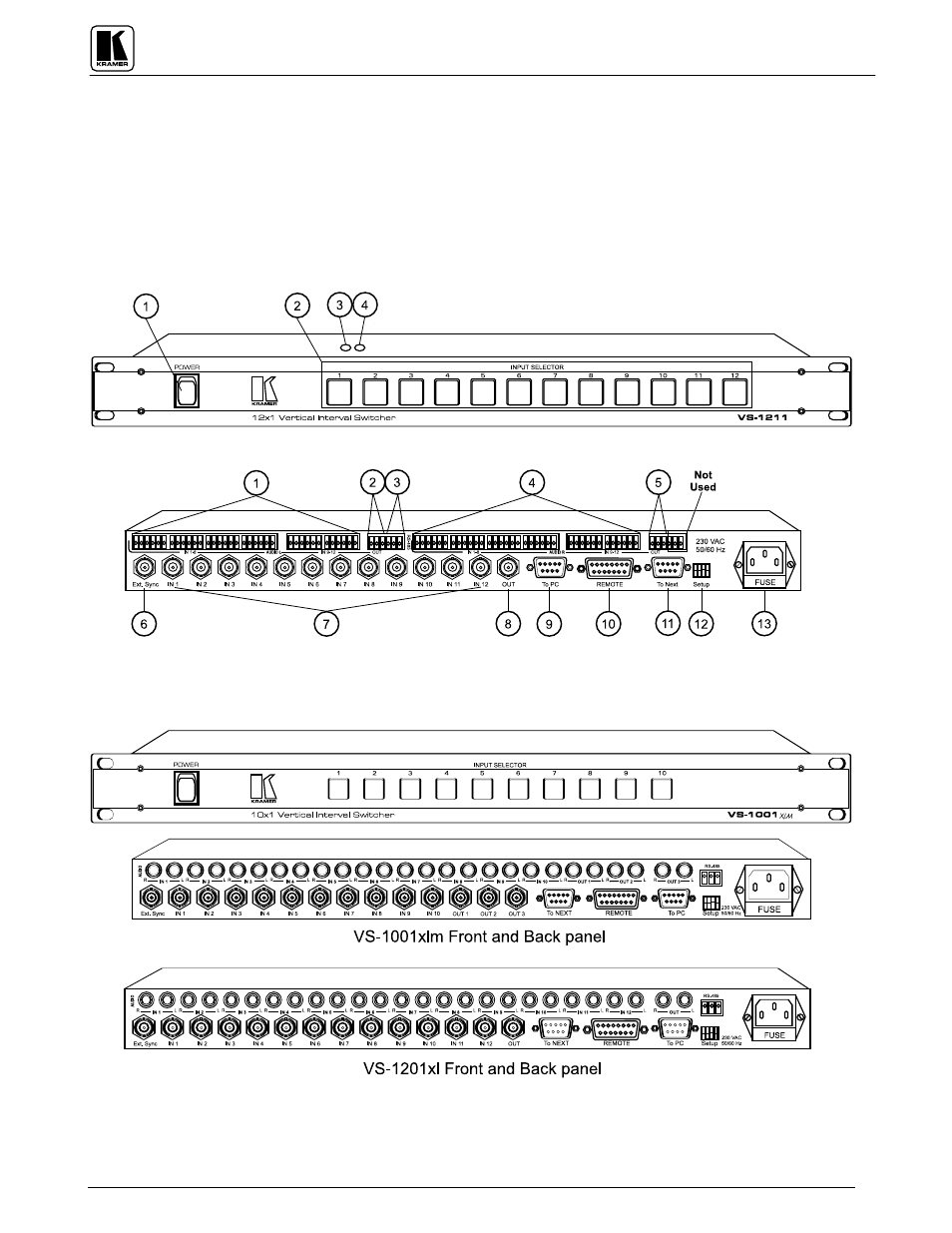

Figure 2: VS-1011xlm/VS-1201xl Front/Rear Panel Features
