Tri-Rod
Orientation
Electr. Box
ADAPTER ASSEMBLY
10, 20 & 30 gal. Tanks
Discharge
Discharge
5 GAL. ASSEMBLY
Tri-Rod
Orientation
Elect. Box
AIR MOTOR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

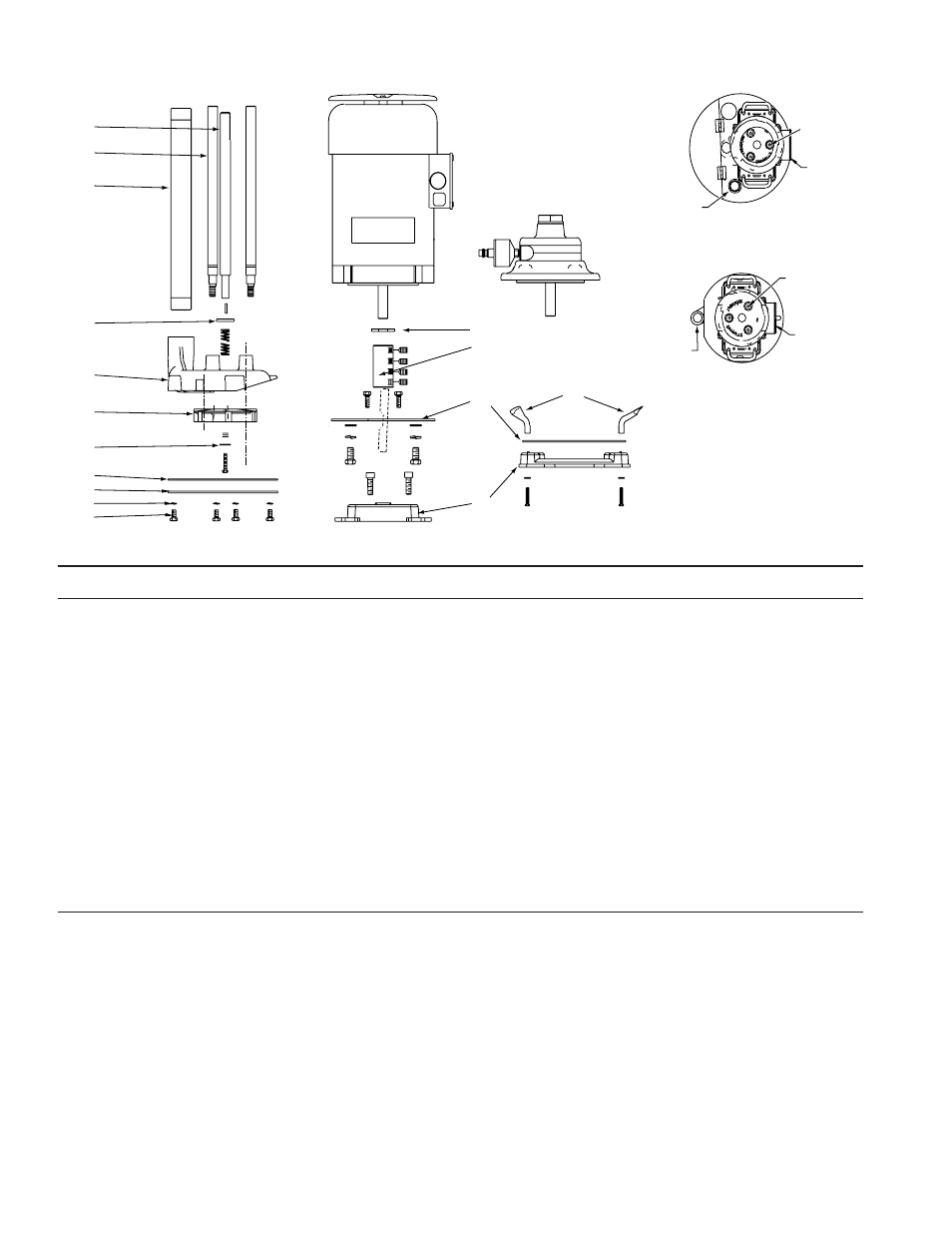

PARTS LIST
M3/MW3 SERIES PUMPS – Electric or Air Motor
PART NUMBERS
REF DESCRIPTION M3 SERIES MW3 SERIES
1 Shaft 560-33895-86 560-37544-86
2 Rod 562-29995-86 562-37545-86
3 Discharge (1” NPT) 720-90562-23 720-90562-23
4 Slinger 573-32123 573-32123
5 Volute 521-37267-23 521-37546-23
6 Replacement impeller kit 401-32759 401-32761
(includes impeller, key, spring, shim washers, hex head screws)
7 Flat washer 754-08123-81 754-08123-81
8 Gasket 744-11817 744-37289
9 Cover plate 660-37288-81 660-37288-81
9A Agitor Cover plate (not shown) 660-37710-81 660-37710-81
10 Lock washers 754-00595-88 754-00595M81
11 Hex head screw, stainless steel 752-90405-81 752-90405M81
12 Slinger 744-11817 744-37548
13 Coupling 573-12029-86 573-37543-86
14 Adapter plate 620-37287-81 620-37542-81
15 Flange 521M37282 521M37282
16 Handle 766-90390 766-90390
