3. Commissioning
3−10
Festo P.BE−CPX−CEC−E N en 1004a
3.5.1
Parameterisation via control configuration in CoDeSys
Detailed information on parameterisation can be found in the
online help.
You can easily parameterise the CPX terminal with the control
configuration. Parameterisation can be undertaken for:
ć
the setpoint configuration (logout): parameters are
transferred when the project is loaded.
When the relevant dialogue has been opened, you can view
and modify the individual parameters.
Parameters cannot be changed in the online mode.
In the following, parameterisation is described using the
example of the Root node:
·
Click in "PLC Configuration" on the symbol for the
CPX−CEC.
Settings
·
Set the following parameters in the "Settings" tab,
if necessary:

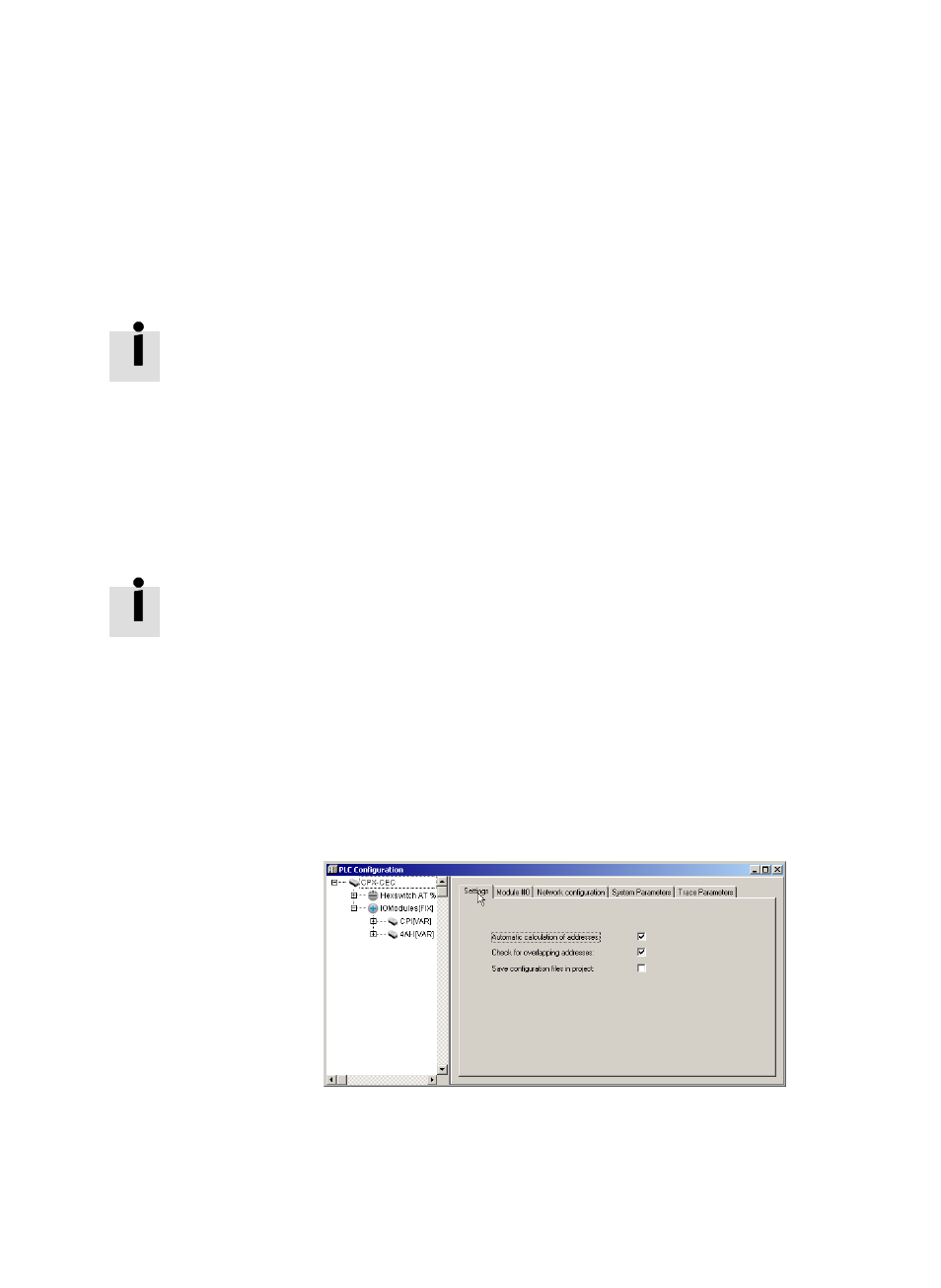

Fig. 3/4:
"Settings" tab
