2.4 Setting the switches of the CoDeSys controller
2.4.1 RUN/STOP rotary switch
Note
Leave the RUN/STOP rotary switch at position "0" (STOP)
during installation.
The switch setting of the RUN/STOP rotary switch with
four internal digital inputs is passed on to the controller and
can be evaluated there.

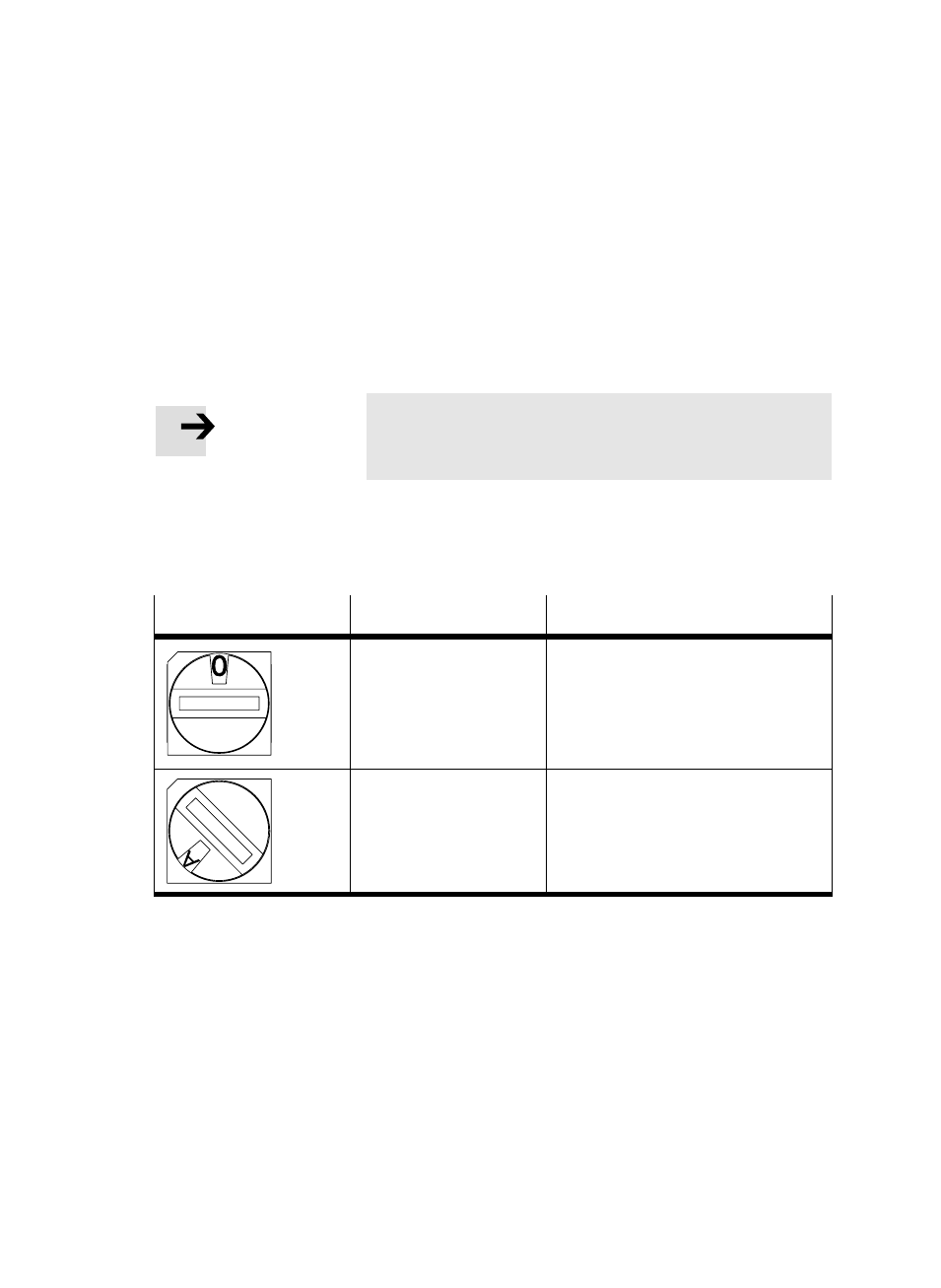

Rotary switch Setting Meaning
0 STOP
CoDeSys controller stopped
The STOP LED lights up yellow
1 ... F RUN
CoDeSys controller started
The RUN LED lights up green
Tab. 2/1: Switch settings of the RUN/STOP rotary switch
