1.3 The operating modes of the CoDeSys controller
The CoDeSys controllers can be operated in various operating
modes, depending on the demand:
ć Stand Alone
ć Remote Controller Ethernet
ć Remote Controller Fieldbus (fieldbus node required)
The individual operating modes are briefly presented in the
following:
Stand Alone operating mode
1 2
1
CPX−CEC/CPX−CEC−...
2
CPX terminal controlled by the CPX−CEC/CPX−CEC−...

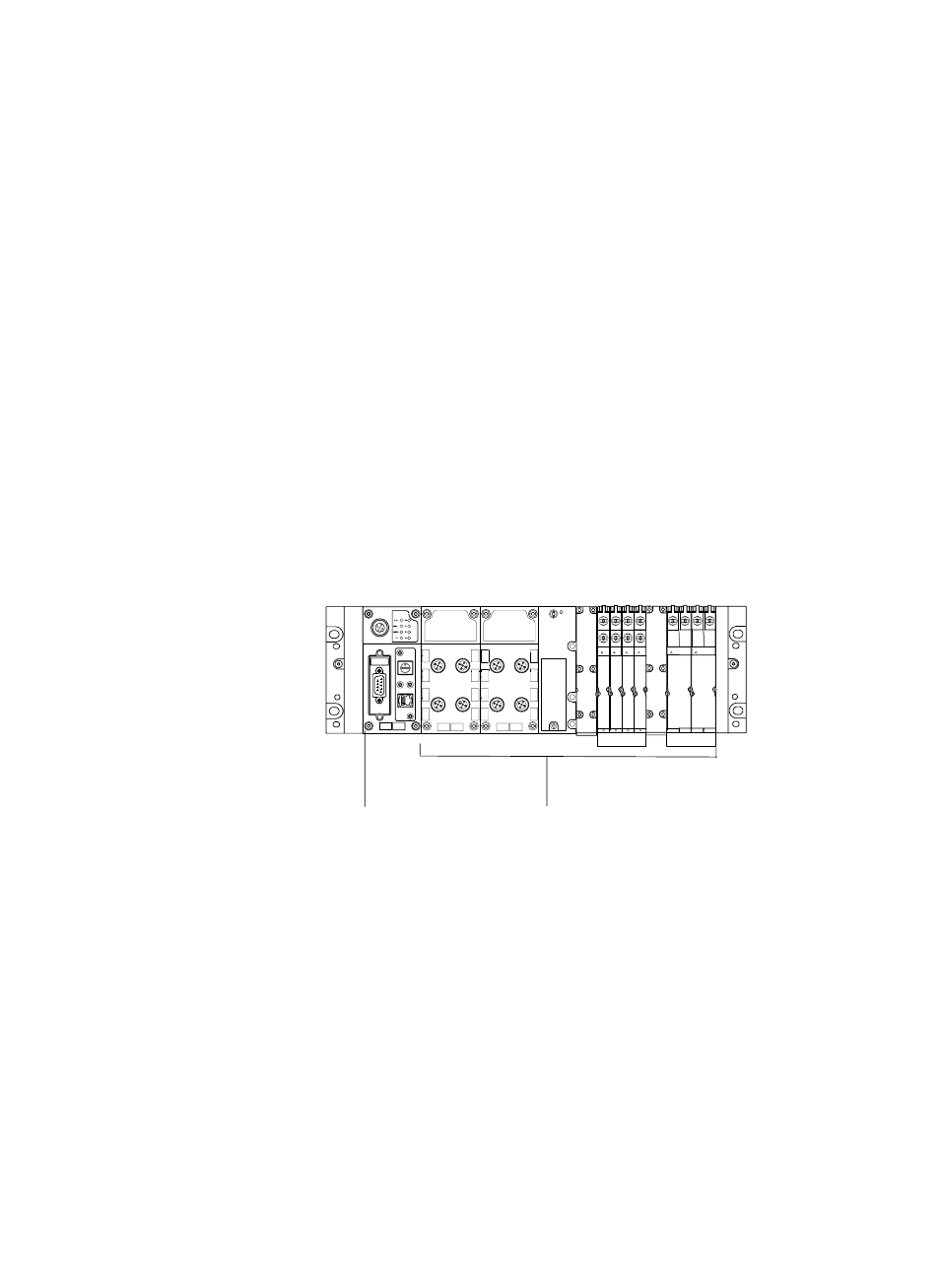

Fig. 1/1: Stand Alone operating mode
