2. Installation
2−19
Festo P.BE−CPX−CEC−EN en 1004a
2.8
Connection of a handheld type CPX−MMI
The 5−pin M12 socket serves to connect a CPX−MMI for fast
preliminary commissioning, diagnosis or parameterising.

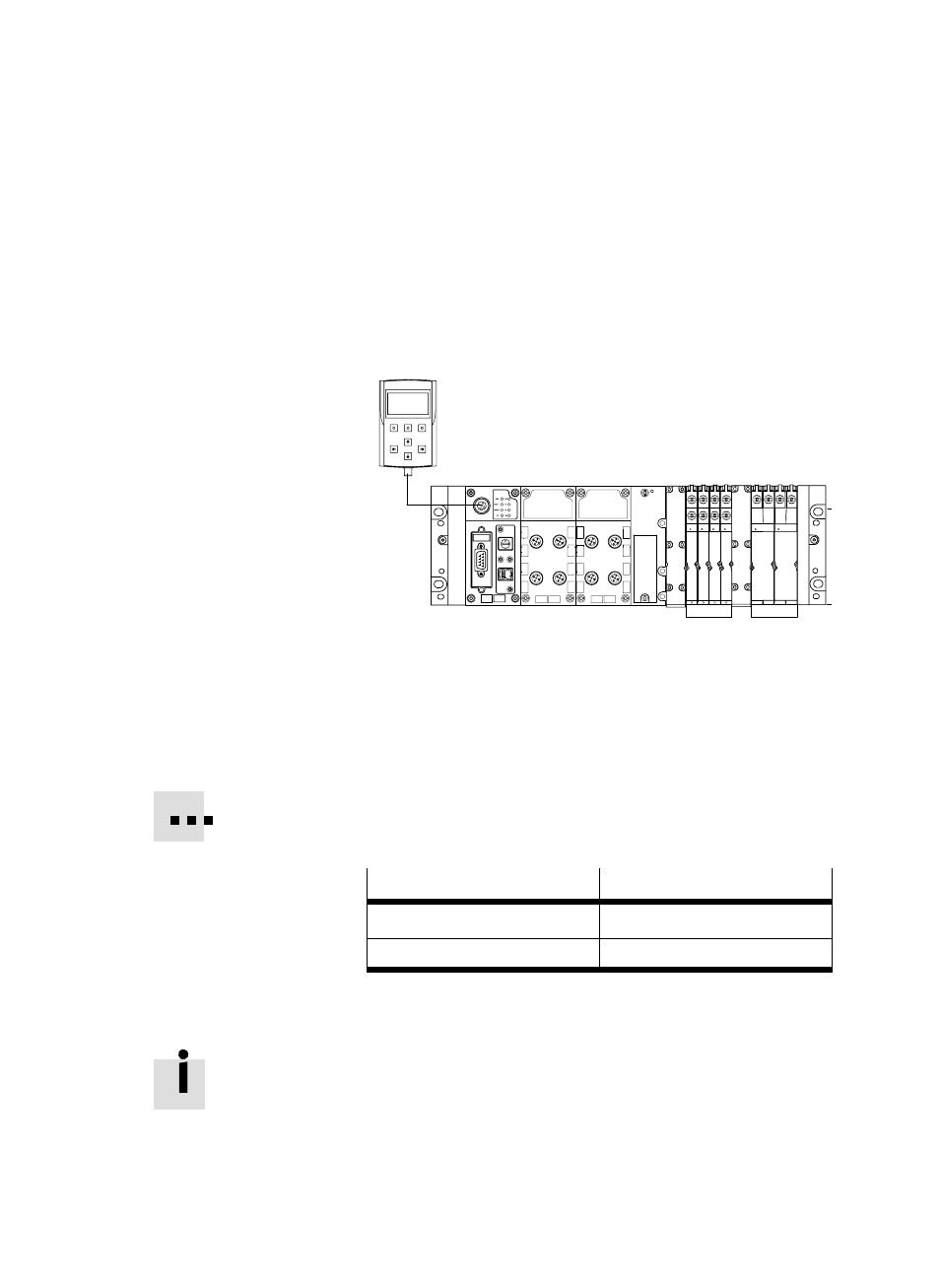

Fig. 2/6:
CPX terminal with handheld type CPX−MMI
The connection with the CPX−MMI is interrupted during a
program download if parameters have been changed via the
CoDeSys provided by Festo software. This guarantees the
consistency of the displayed data.
Use only the following original cables
(è www.festo.com/catalogue) for connecting the CPX−MMI:
Type
Cable length in [m]
KV−M12−M12−3,5
3.5
KV−M12−M12−1,5
1.5
Tab. 2/7:
Connection cable for handheld type CPX−MMI
Further information on parameterisation via CPX−MMI can be
found in the section 3.5.2.
General information on the CPX−MMI can be found in the
manual P.BE−CPX−MMI−1−...
