2.2 Dismantling and fitting
The controller is fitted in an interlinking block of the CPX
terminal (see Fig. 2/1).
2.2.1 Dismantling
Dismantle the controller as follows:
1. Loosen the four screws of the controller with a TORX
screwdriver size T10.
2. Pull the controller carefully and without tilting away from
the contact rails of the interlinking block.
1
CPX−CEC/
CPX−CEC−...
2
Interlinking block
3
Contact rails
4
Screws
3
4
1
2

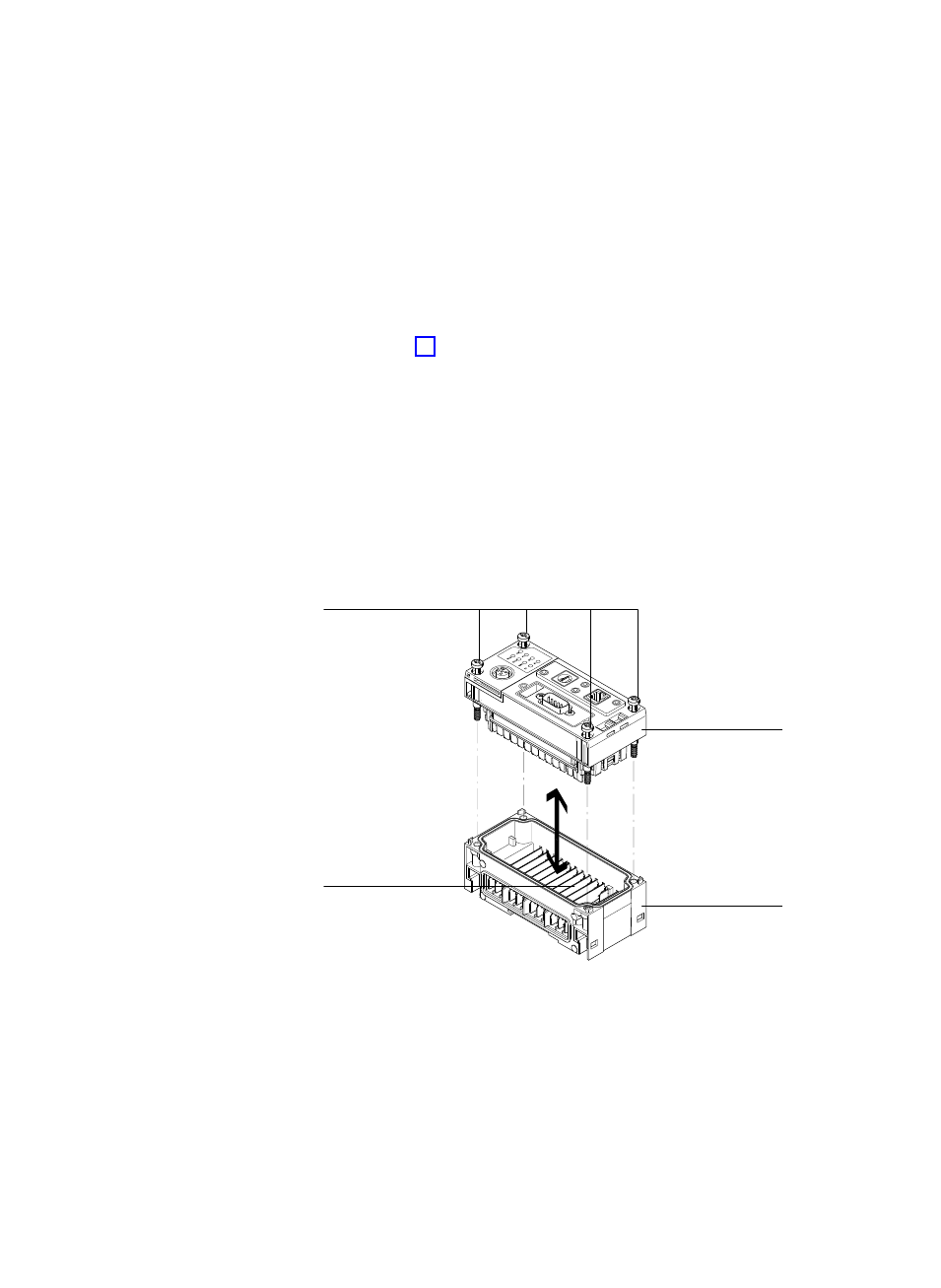

Fig. 2/1: Dismantling/fitting of the controller (here CPX−CEC−C1/−M1 as an example)
