S Carry out the following steps:
1. Exhaust linear module type HMP−...−B.
2. Push the guide tube into the desired end
position.
3. Loosen all four/five stop screws with a
hexagon socket wrench until the stop
retainer
aF can be shifted.
4. First shift the stop retainer
ć until the stop touches the head of the
shock absorber, then
ć further over length X of the shock
absorber stroke.
HMP−... 16 20/25 32
Length X 12 mm 18 mm 24 mm

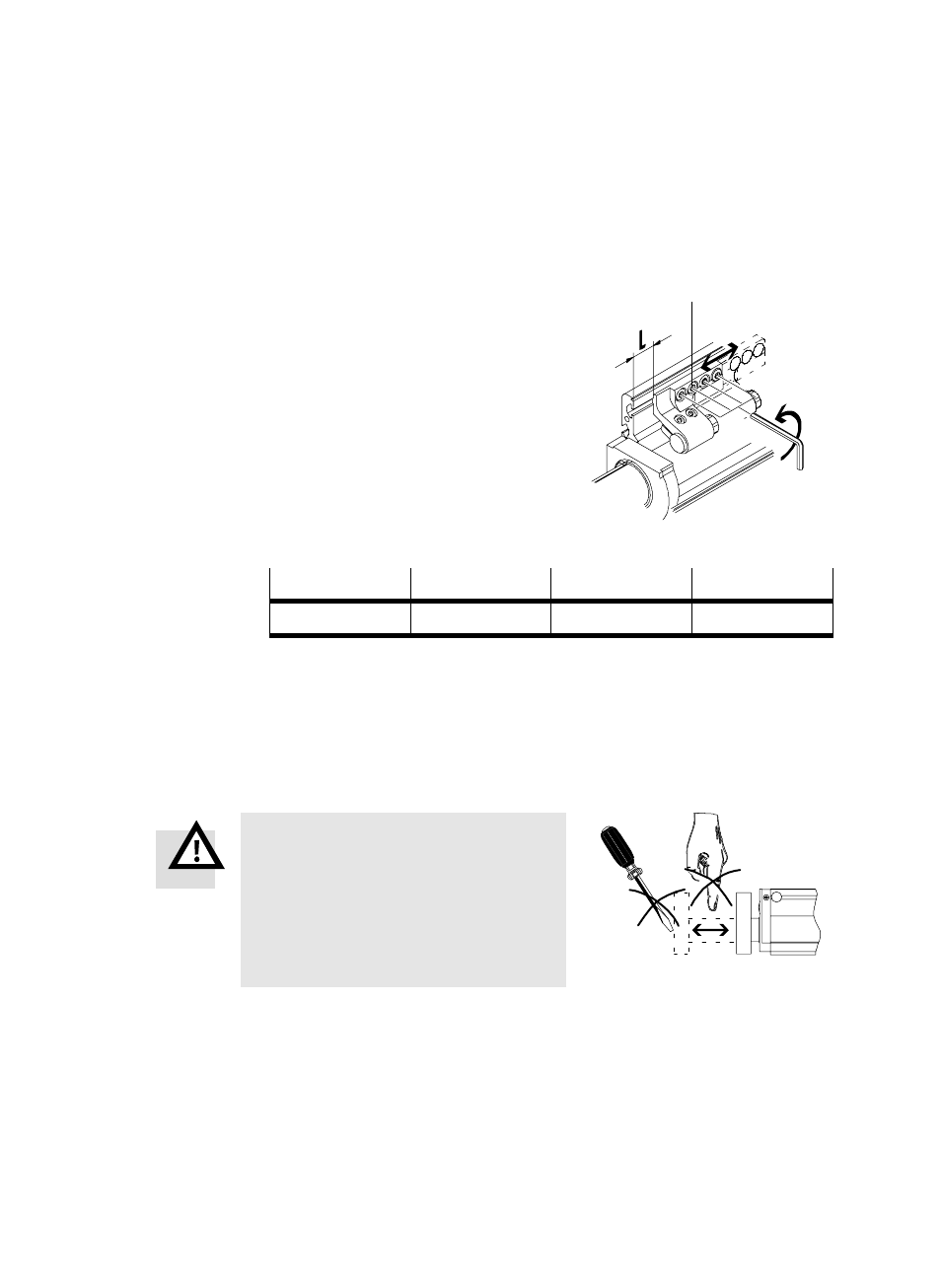

Fig. 28
5. Tighten all four stop screws again with a tightening torque of 5.3 ... 6.5 Nm.
6. Repat the settings for the opposite end position.
Commissioning ć carrying out
Warning
S Make sure that:
ć nobody can place his/her hand in
the path of the moving parts (e.g. by
providing a protective screen)
ć there are no objects within the path
of the moving parts.
Fig. 27
aF
Fig. 29
