For Con-Tech Lighting Ceramic Metal Halide and Compact Fluorescent Decorative Stemlight Pendant Series:

CGM8, CGF8, CGM12 and CGF12

www.con-techlighting.com

All specifications subject to change without notice.

1-847-559-5500

This document can be recycled.

DECOSTMLT INST

White

to

White

Black to Black

Green to Green

(Ground Wire)

2

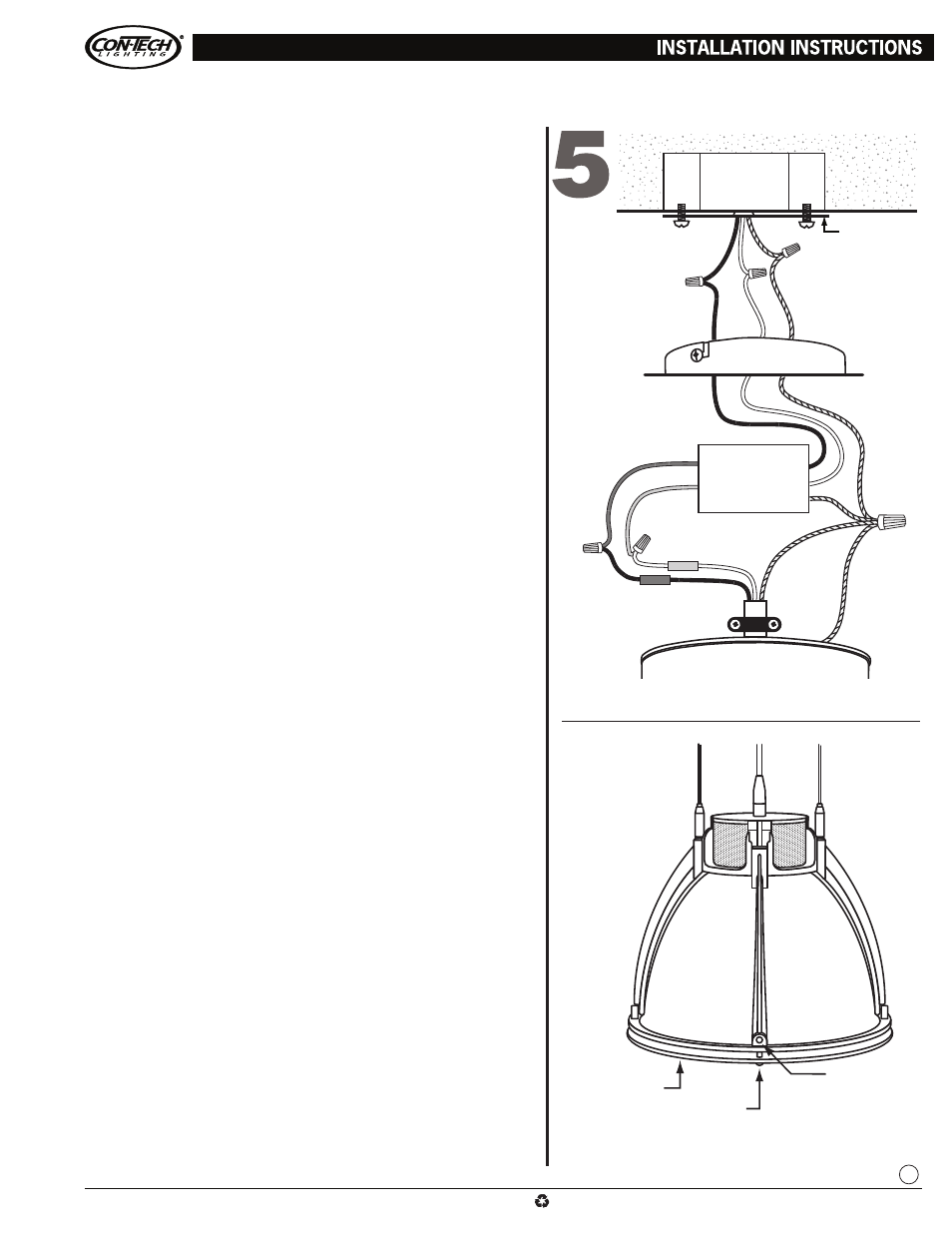

WIRING INSTRUCTIONS:

Mono-Point Mount: Connect the socket leads (Black/Blue) to Blue, (White/Red) to

Red and the Green Ground Lead to the ballast leads. (Figure 5) Connect the primary

leads (Black-to-Black, White-to-White, and Green-to-Green) on the Ballast/Supply side.

Take the ballast plate and attach the (4) Brass screws through the slots into the

threaded brackets. Connect the primary leads from the junction box to the primary

leads of the fixture (Black-to-Black, White-to-White, and Green-to-Green). Attach the top

round wiring compartment to the junction box and tighten the (2) Philips/Straight

Blade screws.
The white socket lead with the Red identification marker gets connected to the red

ballast lead. The black socket lead with the blue identification marker gets

connected to the blue ballast lead. The green socket lead wiring gets connected to

the green ballast lead and green housing lead. Warning: When cutting the jacketed

socket lead wiring, avoid slitting the individual wire conductor’s insulation which

could cause arcing.
Per UL1598 and NEC 300.14, “at least 150mm (6in.) of free conductors and less

than 8 in., measure from the point in the box where it emerges from its raceway or

cable sheath shall be left at each outlet, junction and switch point for splices or the

connector of luminaires or devices”.

SHADE ASSEMBLY INSTRUCTIONS:

Loosen the (4) 3.0mm Hex Head Screws from the arms of the cast frame. (Figure 6)

Insert the correct wattage lamp(s) into the socket(s). Rest the decorative shade into

the bottom cast ring, then reattach the (4) Hex Head Screws into the cast arms.

Unpack the floating glass and attach to the bottom of the cast frame using the (4)

floating ring attachment mechanisms: screw in the double threaded bolt with the

center ribbed collar, then attach the glass. To lock the glass in place, screw on the

knurled nut.

IMPORTANT SAFETY INSTRUCTIONS:

• Read all the instructions before installation. Save instructions for later use.

• Turn off power at fuse or circuit breaker box before installation of before doing any

maintenance work.

• Wear rubber soled shoes and work should be done on a sturdy wooden or

non-conductive ladder.

• Product must be mounted in locations and at heights in a manner consistent with

its intended use, and in compliance with National Electrical Code and local building

codes. For indoor use only.

• Product must be grounded to avoid potential electric shock and any other potential

hazards.

• Do not exceed the nominal supply voltage or amperage ratings.

• Make sure all screws are properly tightened.

• Do not install any lamp holder closer than 6” from any curtain or similar combus-

tible material.

• Use only fixtures and fittings intended for use with Con-Tech Decorative Stemlight

Pendant systems.

• Installing contrary to instructions may cause unsafe conditions.

• Warning: Risk of fire. Most dwellings built before 1985 have supply wire rated at

60˚C. Consult a qualified electrician before installation.

• Warning: Risk of burns. Lamps are extremely hot when lit. Allow lamps to cool

down in temperature before handling.

• To avoid hazards to children, account for all parts and properly dispose of all

packing materials.

• Call the Technical Support department at Con-Tech Lighting with any installation

questions: 847-559-5500.

6

Red

Green

Green

White

White

Black

Black

Green

Green

Red

Identification

Marker

Blue

Blue

Identification

Marker

18-3 Cable

Strain Relief

Bracket

12" Decorative Stemlight

3.0mm

Hex Head Screw

Floating Glass

Knurled Nut

Junction Box

Ceiling

Mounting Bar

Ballast

Canopy
