LAMP SEASONING REQUIREMENTS
Some fluorescent lamp manufacturers recommend that new fluorescent lamps
be operated at full output (“seasoned”) before they can be dimmed to ensure
proper dimming performance and average rated lamp life. Please contact your
lamp manufacturer for seasoning requirements.
PENDANT ASSEMBLY INSTRUCTIONS
1. With the included Allen wrench, loosen the screw in the strain relief near the
socket. Unscrew strain relief from threaded nipple; slide it off the cable.
2. Slide (1) one washer off the cable.
3. Insert cable into the bottom of selected glass; slide glass so it sits on the
washer near the socket.
4. Reinstall the first washer and strain relief so it sits on the top of the glass.
5. Screw strain relief back onto threaded nipple; tighten Allen screw. Due to
different glass thicknesses, use adjustment nut to adjust height of the
washers to achieve a snug fit between the strain relief, washers and glass.
(Figure 1)
6. Run cable through canopy strain relief to connect socket wiring to the ballast
using the correct wiring diagram. (Figure 2)
7. Tighten the canopy strain relief with the included Allen wrench
8. Screw the Lutron EcoSystem® Digital ballast into the canopy.
9. Install canopy mounting base to junction box with included screws.
10. Connect ballast wires along with the ballast disconnect and canopy ground
wire to input power wires from junction box.
11. Secure canopy to mounting base using “L” shaped slots; tighten screws.
12. Insert lamp.
PENDANT HEIGHT ADJUSTMENT
1. Disconnect ballast from pendant wiring and remove ballast from canopy.
2. Unscrew canopy strain relief with included Allen wrench, slide canopy off of
bicycle cable.
3. Loosen Allen screw on strain relief near the socket and unscrew the strain
relief from the threaded nipple.
4. Pull the bicycle cable off of the pendant.
5. Cut bicycle cable to desired length making sure to remove any sharp edges
on the inside of the bicycle cable with a small round file.
6. Insert pendant red and blue wires back into bicycle cable, slide bicycle cable
through strain relief into threaded nipple near the socket.
7. Screw strain relief to threaded nipple for a snug fit between the strain relief,
washers and glass.
8. Tighten the Allen screw in the strain relief.
9. Cut the red and blue pendant wires, allowing enough length to insert into the
ballast canopy and to wire to the ballast.
10. Insert the bicycle cable through the canopy strain relief and rewire the
ballast using the correct wiring diagram. (Figure 2)
11. Tighten the canopy strain relief with the included Allen wrench
12. Reinstall the ballast into the canopy with two screws.
13. Continue with steps 9-12 above.
IMPORTANT SAFETY INSTRUCTIONS
• Read all the instructions before installation. Save instructions for later use.
• Turn off power at fuse or circuit breaker box before installation or maintenance work.
• Wear rubber soled shoes and work on a sturdy wooden or non-conductive ladder.
• Product must be mounted in locations and at heights in compliance with National Electrical
Code and local building codes. For indoor, dry location use only.
• Do not exceed the nominal supply voltage or amperage ratings.
• Do not install any pendants closer than 6" from any curtain or similar combustible material.
• Installing contrary to instructions may cause unsafe conditions.
• Warning: Risk of fire. Most dwellings built before 1985 have supply wire rated at 60°C.
Consult a qualified electrician before installation.
• Avoid hazards to children: account for all parts and properly dispose of all packing materials.
• Call the Technical Support department at Con-Tech Lighting with any installation questions.

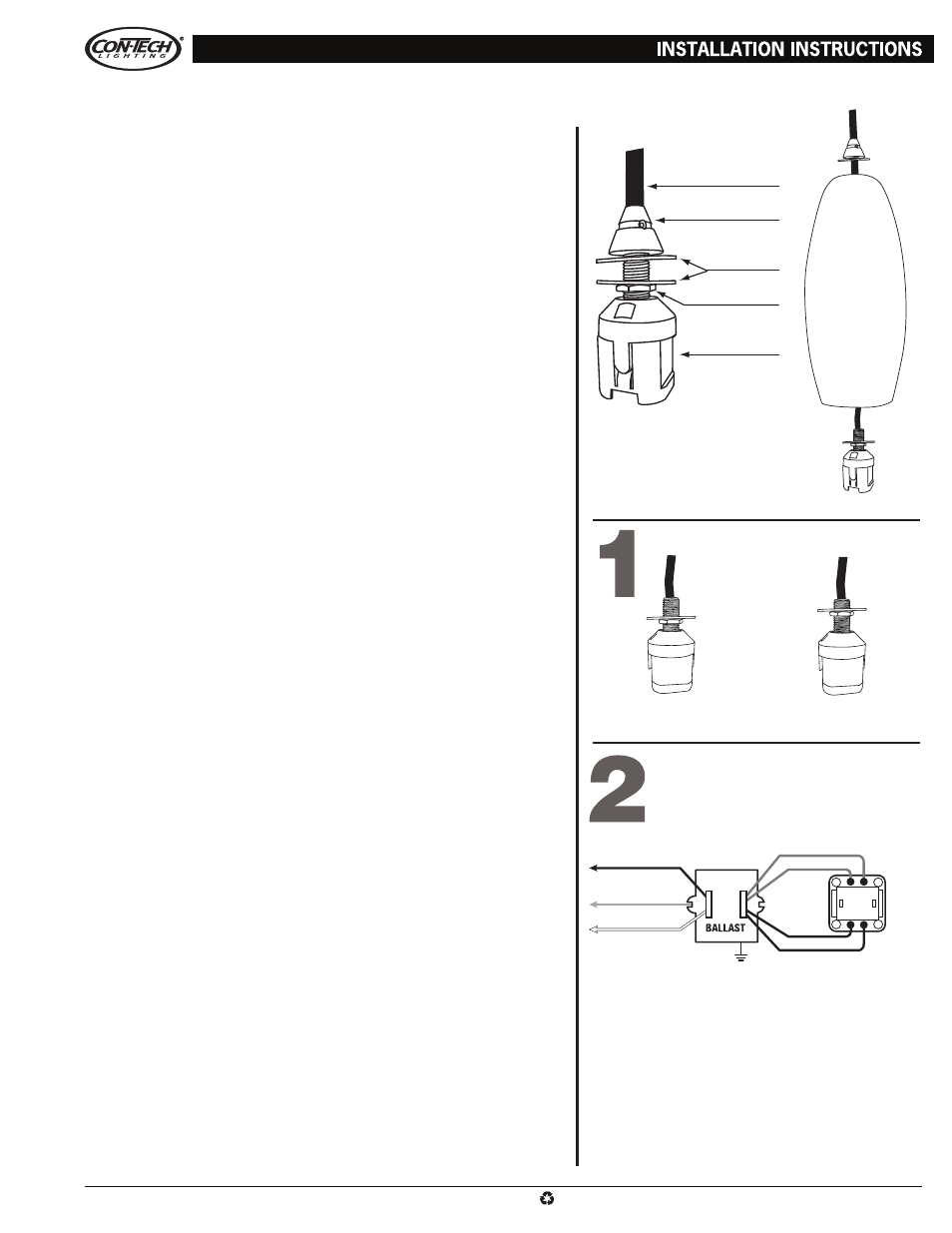

Completed Assembly
Adjustment nut positioned
for thick-topped glass
Adjustment nut positioned
for thin-topped glass
Strain Relief
Flexible Bicycle Cable
Washers
Adjustment Nut
Socket
Glass seats between
the two washers
Red Black
(Switched Hot) 1
Orange
(Dimmed Hot) 1
4-pin
Lamp
Holder
Red
Blue
Blue
Neutral
Ground 2
1 Wire colors shown are for Lutron controls and ballasts only.
Dimming control wires may not match ballast wire colors.
2 Ballast is grounded via the case or terminal.
Note: For T4 compact lamps, maximum lamp-to-ballast wire
length is 4 feet to guarantee proper performance.
