For Con-Tech Lighting LED Decorative Stemlight Pendant Series: CGL8
CGL8 INST
www.contechlighting.com
All specifications subject to change without notice.
1-847-559-5500
This document can be recycled.
2
Canopy/LED Driver Compartment
There should not be any excess cable in the ballast
compartment. Leave only 6-8" for wiring available.
(2) Philips
Screws
Top
Mounting
Plate
Red (+)
White
Green
Black
Black (−)
18-3 Cable
Strain Relief
Bracket
LED Driver
Canopy

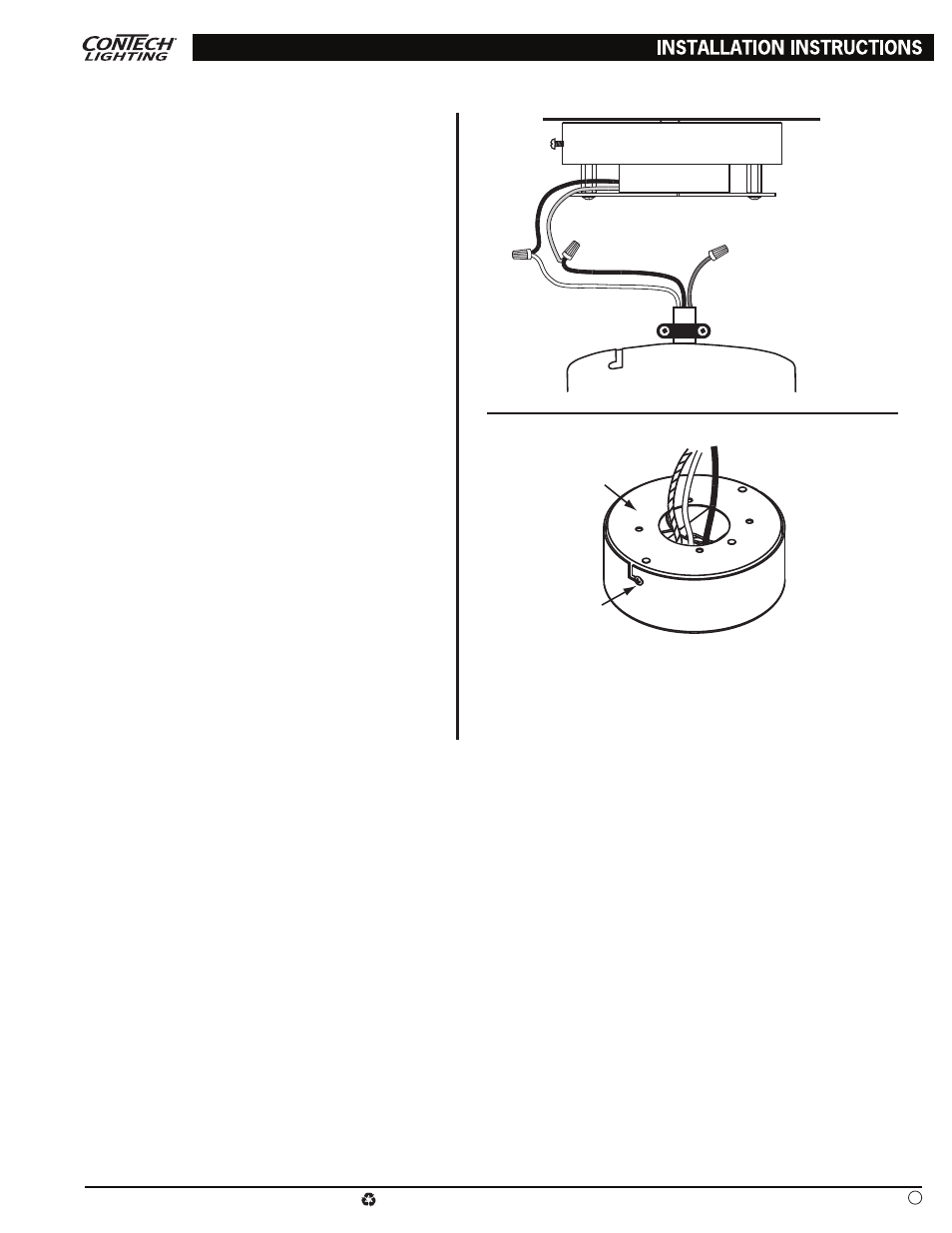

LED DRIVER INSTALLATION:
The white fixture lead gets connected to the black LED
driver lead. The black fixture lead gets connected to the
red LED driver lead. Cap off the green wire. (Figure 5)
Top Mounting Plate
6
5
FIXTURE CANOPY INSTALLATION:
Using the (2) Philips Head Screws, twist and lock the fixture
canopy to the top mounting plate while carefully tucking
wires out of the way. (Figure 6)
Tighten screws to ensure fixture assembly is safely
attached to the Top Mounting Plate.
IMPORTANT SAFETY INSTRUCTIONS:
• Read all the instructions before installation. Save instructions for later use.
• Turn off power at fuse or circuit breaker box before installation of before doing any maintenance work.
• Wear rubber soled shoes and work should be done on a sturdy wooden or non-conductive ladder.
• Product must be mounted in locations and at heights in a manner consistent with its intended use, and in compliance with National
Electrical Code and local building codes. For indoor use only.
• Product must be grounded to avoid potential electric shock and any other potential hazards.
• Do not exceed the nominal supply voltage or amperage ratings.
• Make sure all screws are properly tightened.
• Do not install any lamp holder closer than 6” from any curtain or similar combustible material.
• Use only fixtures and fittings intended for use with Con-Tech Decorative Stemlight Pendant systems.
• Installing contrary to instructions may cause unsafe conditions.
• Warning: Risk of fire. Most dwellings built before 1985 have supply wire rated at 60˚C. Consult a qualified electrician before installation.
• Warning: Risk of burns. Lamps are extremely hot when lit. Allow lamps to cool down in temperature before handling.
• To avoid hazards to children, account for all parts and properly dispose of all packing materials.
• Call the Technical Support department at Con-Tech Lighting with any installation questions: 847-559-5500.
