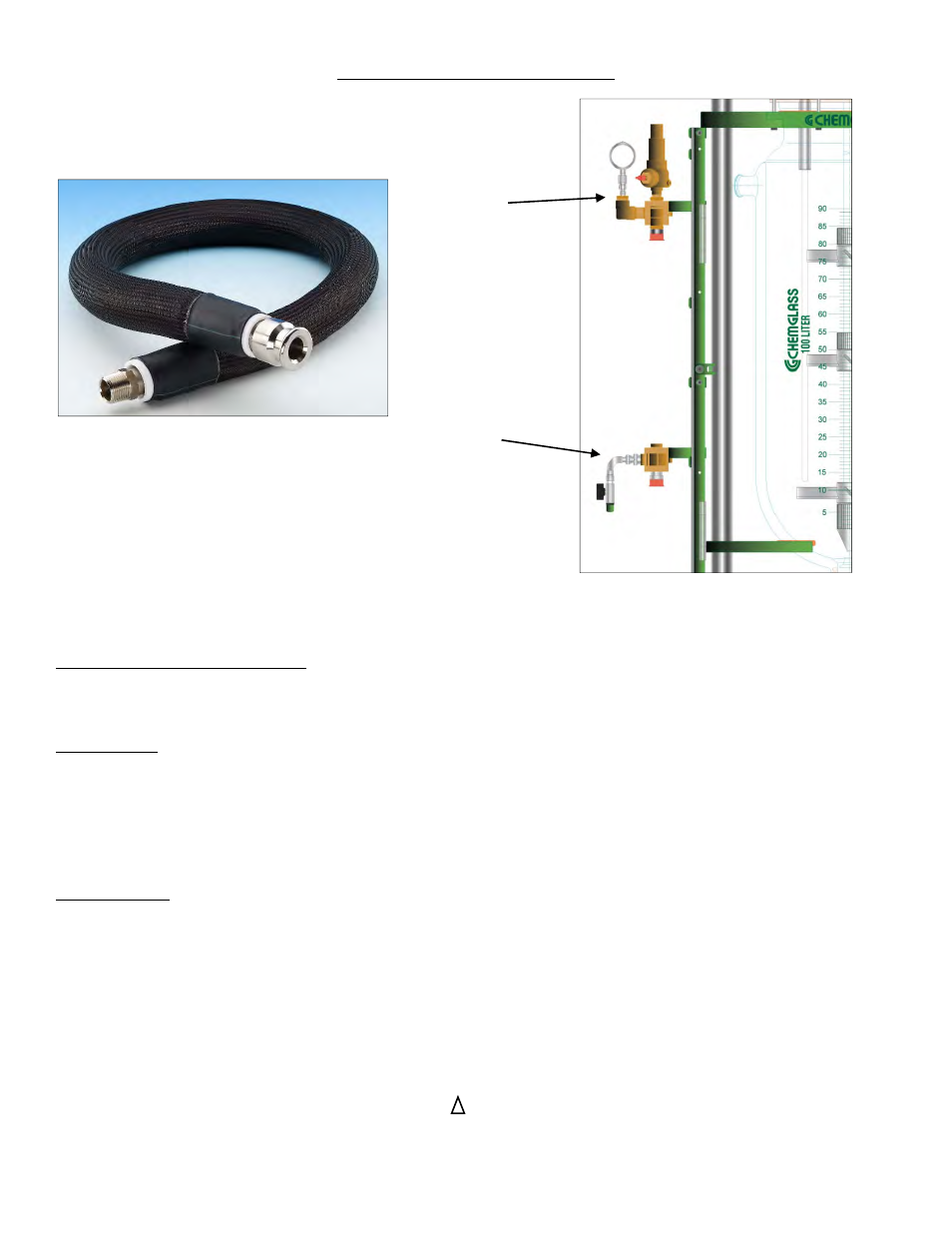

Inlet/Outlet Jacket Connections
The high flow manifold system and triple insulated flexible hoses are assembled and attached to the inlet/outlet jacket
connections when shipped. Use the following instructions should you need to remove or adjust these components.
Components Needed for Inlet/Outlet:
1ea CG-1969-M
High Flow Manifold System
2ea CG-1968-69 1-1/2”Beaded Pipe Couplings
Inlet Manifold:
1. Attach the supplied 3ft green triple insulated hose to brass elbow on manifold block.
2. Mount the inlet manifold to right S.S. upright.
3. Attach the hose to the reactor inlet using a beaded pipe coupling (sold separately). Tighten the beaded pipe
coupling to 50in-lbs using a torque wrench.
4. Attach circulator hose (sold separately) to bottom of inlet manifold block via the M16 or M30 thread. Hand tighten
plus 1/4 turn with wrench.
Outlet Manifold:
1. Attach the supplied 4ft long triple insulated flexible hose to port of manifold block.
2. Mount outlet manifold to right S.S. upright.
3. Attach the hose to the reactor outlet using a beaded pipe coupling (sold separately). Tighten the beaded pipe
coupling to 50in-lbs using a torque wrench.
4. Attach circulator hose (sold separately) to bottom of outlet manifold block via the M16 or M30 thread. Hand
tighten plus 1/4 turn with wrench.
TEMPERATURE LIMITATIONS ON MANIFOLD = -60 TO 200°C
MAX JACKET PRESSURE = 12 PSI
MAX T = 60°C
TEMPERATURE RANGE = -60 to 200°C
Outlet
Manifold
Inlet
Manifold
3/4" ID Triple Insulated Flexible Hose has
Welded On S.S. Beaded Pipe Fitting for
Direct Connection to Inlet/Outlet.
Opposite End is a 3/4" Male NPT for
Connection to Manifold Block
