Read Entire Assembly Instructions Before You Begin. Familiarize Yourself with All of the Parts,
and Pay Close Attention to All Notes and Highlights.
Support frames are shipped via common carrier and require loading dock access with a fork lift or jack. If you
do not have a loading dock, then a lift gate-equipped truck must be requested at the time of order.
For your convenience, the jacketed process reactor, the fully assembled reactor head, stirrer shaft & agitators,
PTFE stirrer bearing, temperature probe & adapter, high flow manifold blocks, and safety shields are shipped
assembled on the support frame. PTFE sleeves and keck clips are available separately.
Unpack all of the parts and check against the packing slip to make sure you have received all necessary
components. If possible, keep some of the packaging materials from the wood crates in case you need to return
items for repair or replacement.
Crate # 1:
 Unpack the lower half of the support frame with the reactor and components by removing the packing
material from around the reactor. Retighten all Allen screws with supplied wrenches. CHECK ALL
ALLEN SCREWS BEFORE PROCEEDING. SCREWS CAN LOOSEN DURING SHIPMENT.
Crate # 2:
 Contains the upper universal motor mount, 1/4 HP electric stirrer motor, condenser, zero dead space
drain valve, temperature monitor, motor controller, and other miscellaneous parts.
Move the reactor assembly and parts near the hood or area where the reactor will be used, but allow enough
space to move freely around the support frame. During setup, preparation, and process, it is best to keep the
wheels in their locked position by stepping down on the tab. Begin by attaching the upper universal motor
mount arm to the lower half of the support frame that houses the reactor. Tighten all Allen screws with supplied
wrenches.

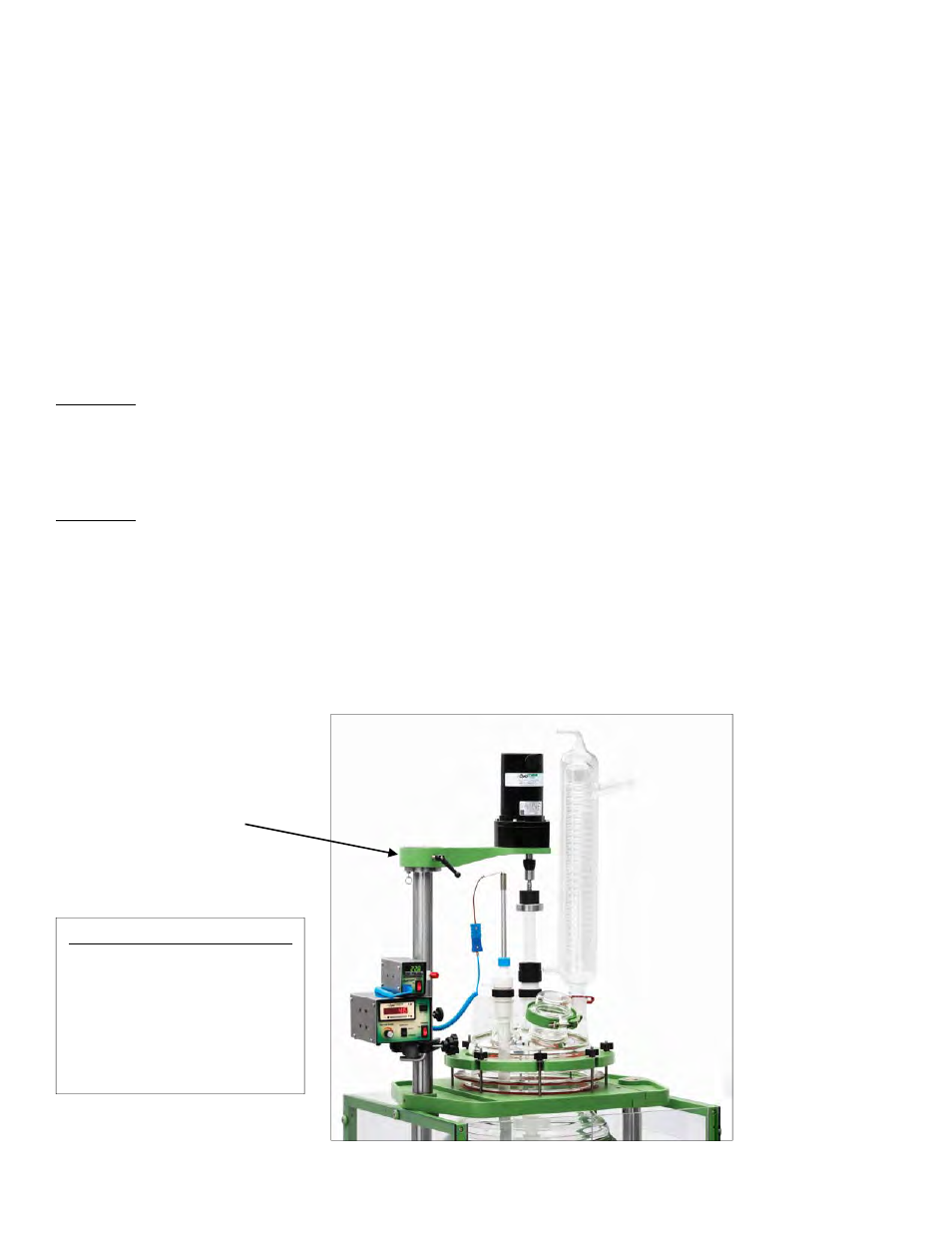

Upper Universal
Motor Mount Arm
Universal Motor Mount Arm
The mount is shipped
assembled but must be
attached to the lower portion
of the support frame. Tighten
all Allen screws with
supplied wrenches.
