RMS Technologies R256 CONTROLLER/DRIVER User Manual
Page 9
6
Green
2 (GND connect to Power
Supply Ground)
3
Brown
3 (RS485B)
Table 4

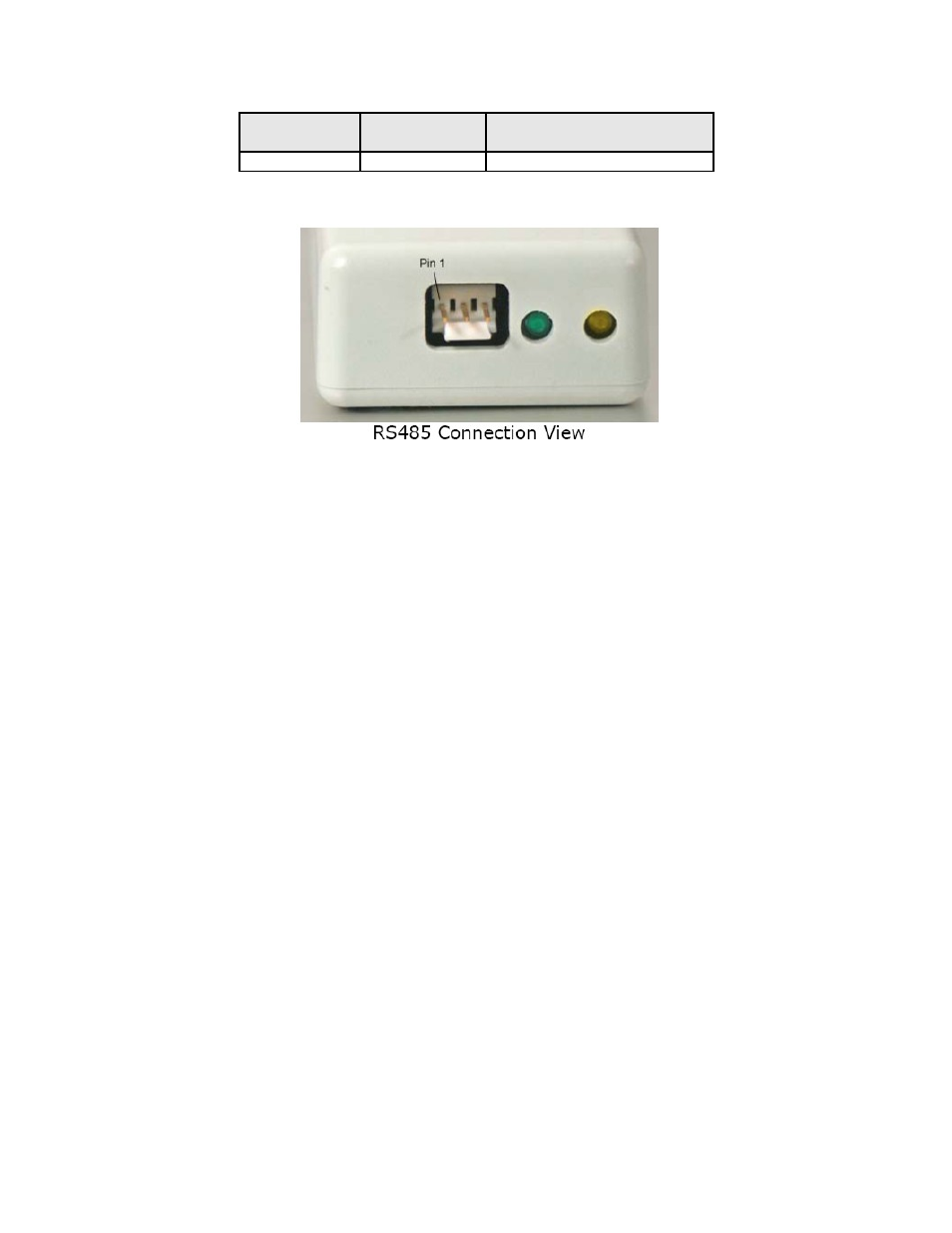

*Where Pin #1 is located here:
Figure 4
The USB converter card does not require power (it receives power from the PC). Power is still needed for
the R256 controller/driver.
