RMS Technologies R256 CONTROLLER/DRIVER - Manual (Page 12)

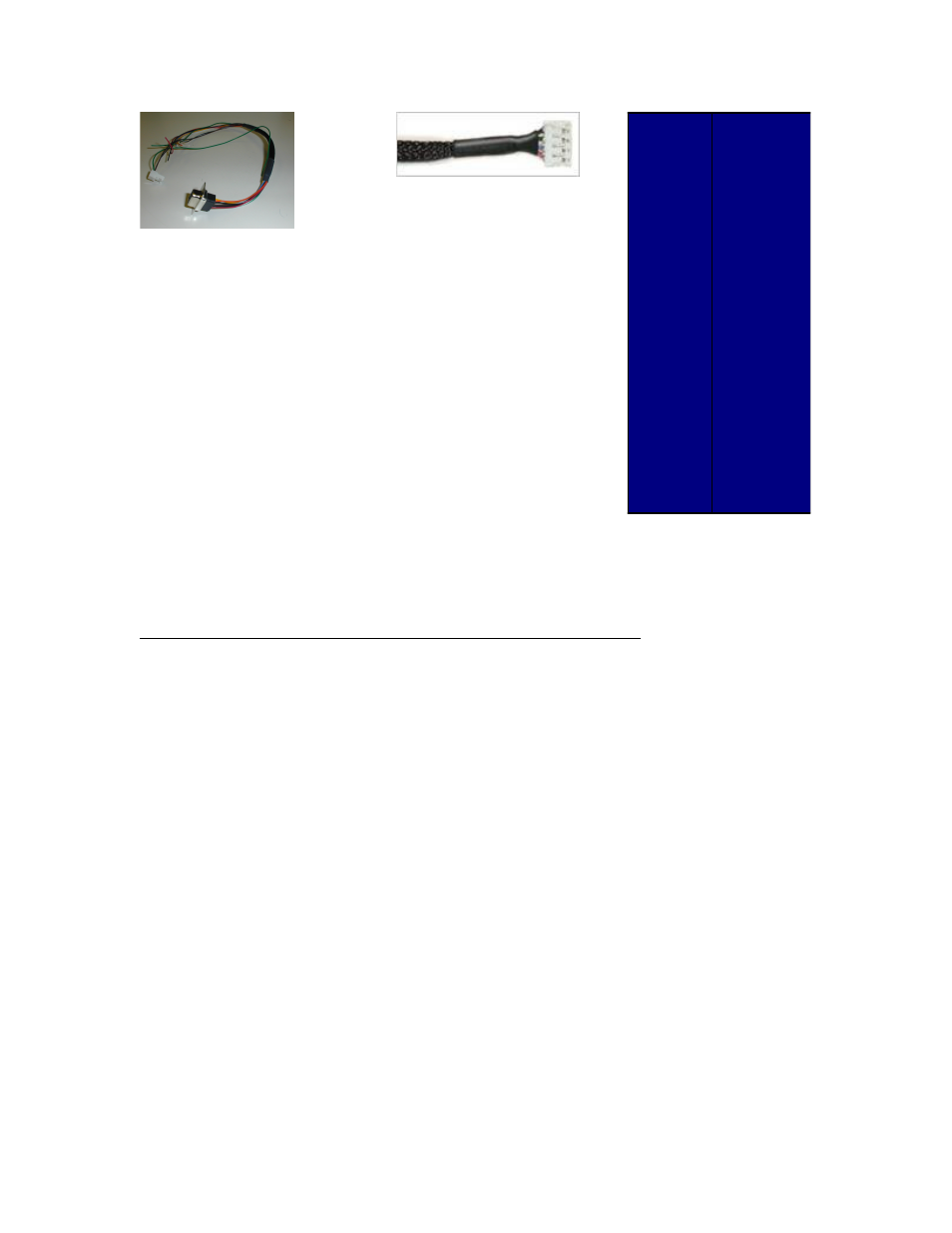

(Fig 7)
DB-9 cable with 3-pin header for
communication
(Figure 8) The table to the
right depicts the function
Part # 90-018
Color
Functio
n
Red
A+
Phase
Blue
A-
Phase
Green
B+
Phase
Black
B-
Phase
Table 5
7. CONFIGURING AND CONTROLLING THE R256
HyperTerminal Setup
Please follow these steps in order to properly set up HyperTerminal:
1. Open a terminal from your PC by following these steps: Start Menu  Programs 
Accessories  Communications  HyperTerminal
RMS Technologies Page 12 Version 1.05
R256 Controller Manual 4/3/2009
