Bell & Gossett VTP2006 Series VTP – Vertical Turbine Pumps User Manual
Page 9
9
HEAD ASSEMBLY
ITEM
DESCRIPTION
600
DISCHARGE HEAD
604
ADJUSTING NUT
608
HEADSHAFT
620
O-RING
623
TENSION NUT
625
TENSION PLATE
630
OILER
637
COLUMN FLANGE
730
GIB KEY
779
TENSION PLATE GASKET
COLUMN ASSEMBLY
629
TUBE NIPPLE
631
COLUMN NIPPLE
639
COLUMN LOCK RING
642
COULMN PIPE
645
COLUMN COUPLING
646
LINESHAFT
649
LINESHAFT COUPLING
654
OIL TUBE
656
LINESHAFT BEARING
658
TUBE STABILIZER
BOWL ASSEMBLY
659
COLUMN ADAPTER
660
BOWL SHAFT
661
DISCHARGE BOWL
664
DISCHARGE BEARING
665
OIL SEAL
668
TUBE ADAPTER BEARING
670
INTERMEDIATE BOWL
672
INTERMEDIATE BOWL BEARING
673
IMPELLER
677
TAPERLOCK
680
WEAR RING (OPTIONAL)
688
SUCTION BOWL/BELL
690
SUCTION BEARING
692
SAND COLLAR
698
SUCTION STRAINER
747
PLUG
760
HEX BOLT

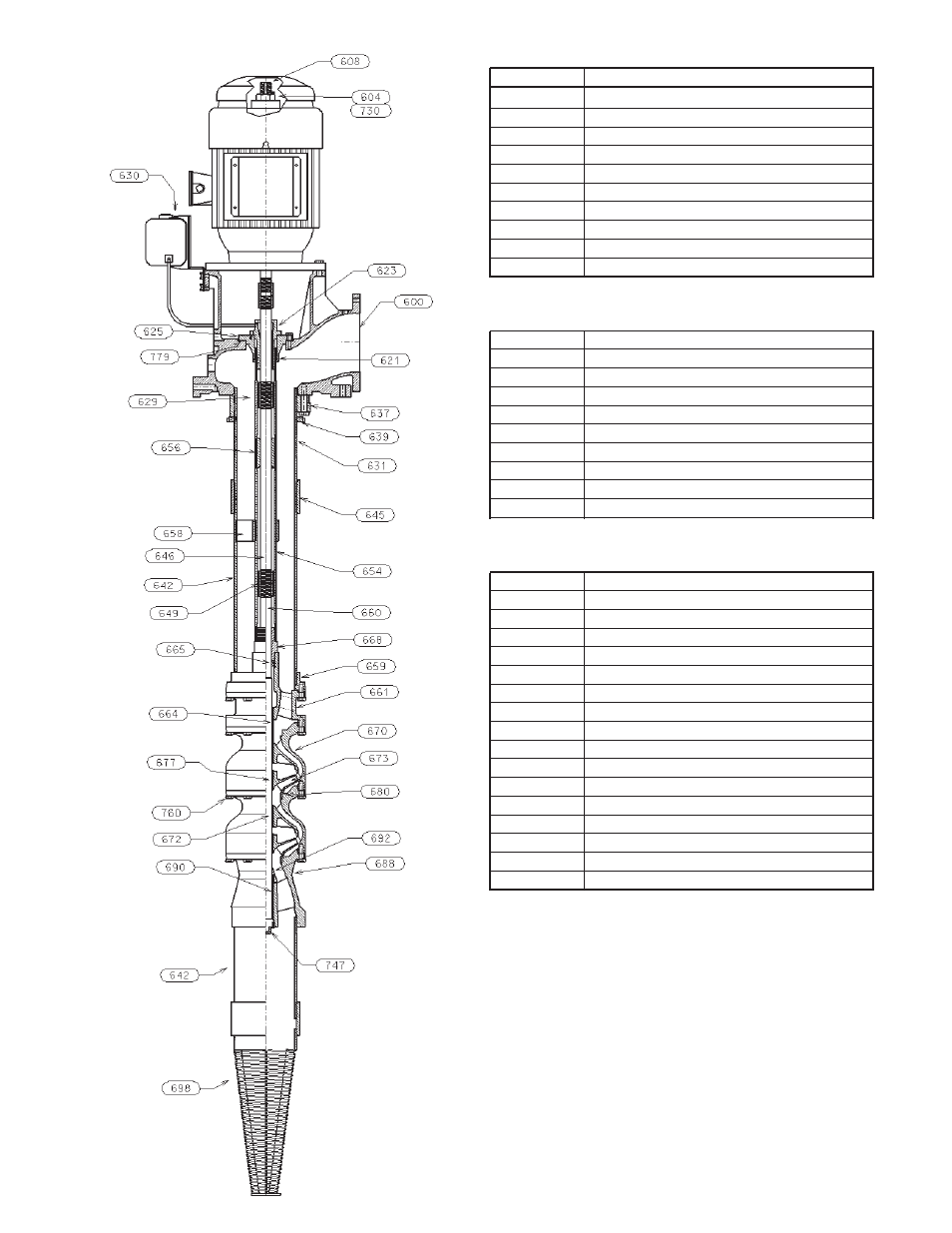

Figure 3 Enclosed Lineshaft Pump with
Threaded Column Pipe
