Bell & Gossett VTP2006 Series VTP – Vertical Turbine Pumps User Manual
Page 43
43
ENSAMBLE DE CABEZA
ELEMENTO
DESCRIPCIÓN
600
CABEZA DE DESCARGA
604
TUERCA DE AJUSTE
608
EJE SUPERIOR
620
EMPAQUE CIRCULAR
623
TUERCA DE TENSIÓN
625
PLACA DE TENSIÓN
630
ACEITERA
637
BRIDA DE LA COLUMNA
730
CHAVETA
779
JUNTA DE LA PLACA DE TENSIÓN
ENSAMBLE DE COLUMNA
629
ROSCA CORRIDA DE TUBO
631
COPLE DE LA COLUMNA
639
ANILLO SEGURO DE COLUMNA
642
TUBO DE COLUMNA
645
ACOPLAMIENTO DE COLUMNA
646
EJE INTERMEDIO
649
ACOPLAMIENTO DE EJE
INTERMEDIO
654
TUBO DE ACEITE
656
COJINETE DE EJE
INTERMEDIO
658
ESTABILIZADOR DEL TUBO
ENSAMBLE DE TAZONES
659
ADAPTADOR DE COLUMNA
660
EJE DE TAZONES
661
TAZÓN DE DESCARGA
664
COJINETE DE DESCARGA
665
SELLO DE ACEITE
668
COJINETE ADAPTADOR DEL TUBO
670
TAZÓN INTERMEDIO
672
COJINETE DE TAZÓN INTERM.
673
IMPULSOR
677
SEGURO CÓNICO
680
ANILO DE DESGASTE (OPCIONAL)
688
TAZÓN/CAMPANA DE SUCCIÓN
690
COJINETE DE SUCCIÓN
692
ANILLO PROTECTOR
698
COLADOR DE SUCCIÓN
747
TAPÓN
760
PERNO HEXAGONAL

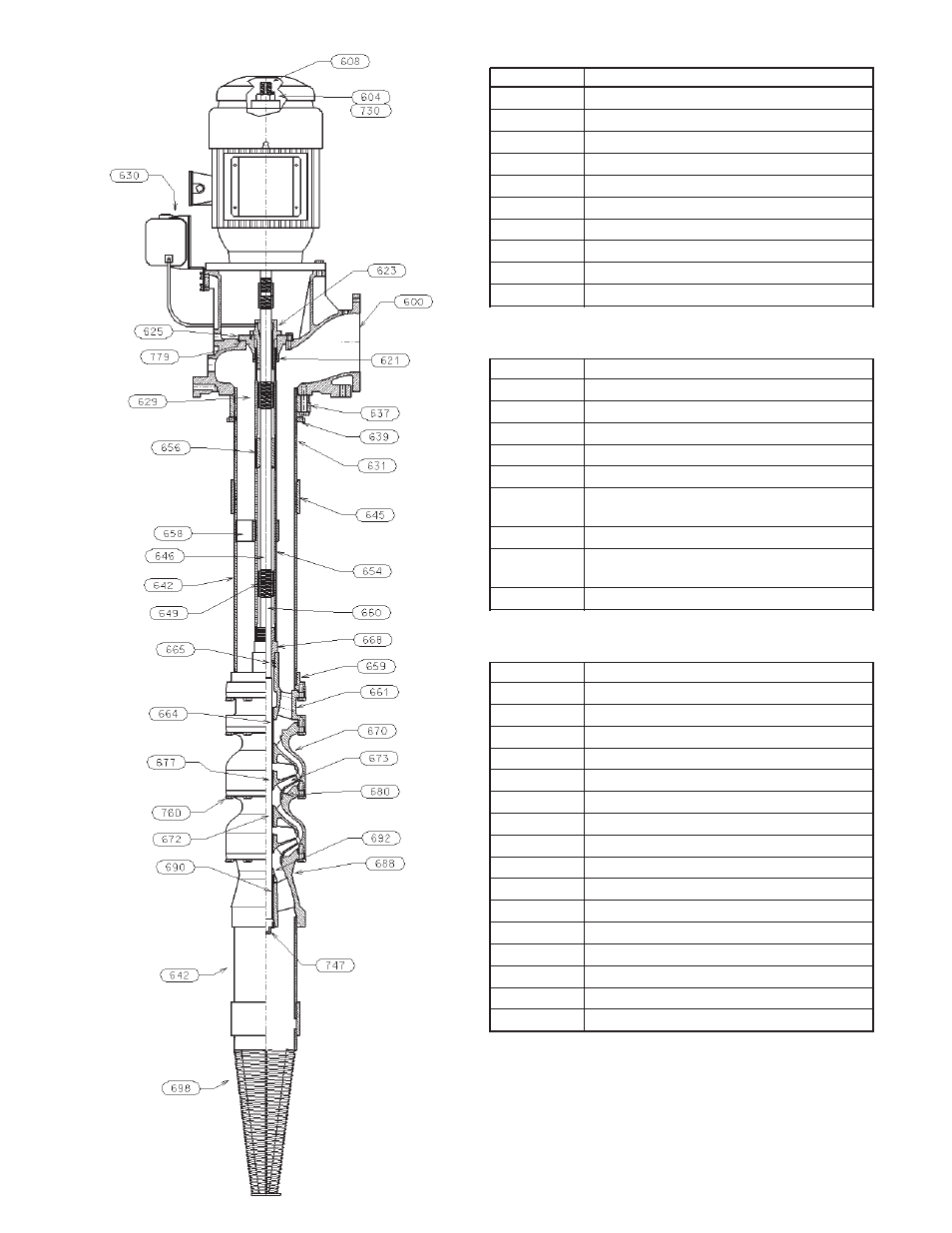

Figura 3 Bomba de eje intermedio cerrado
con tubo de columna roscada
