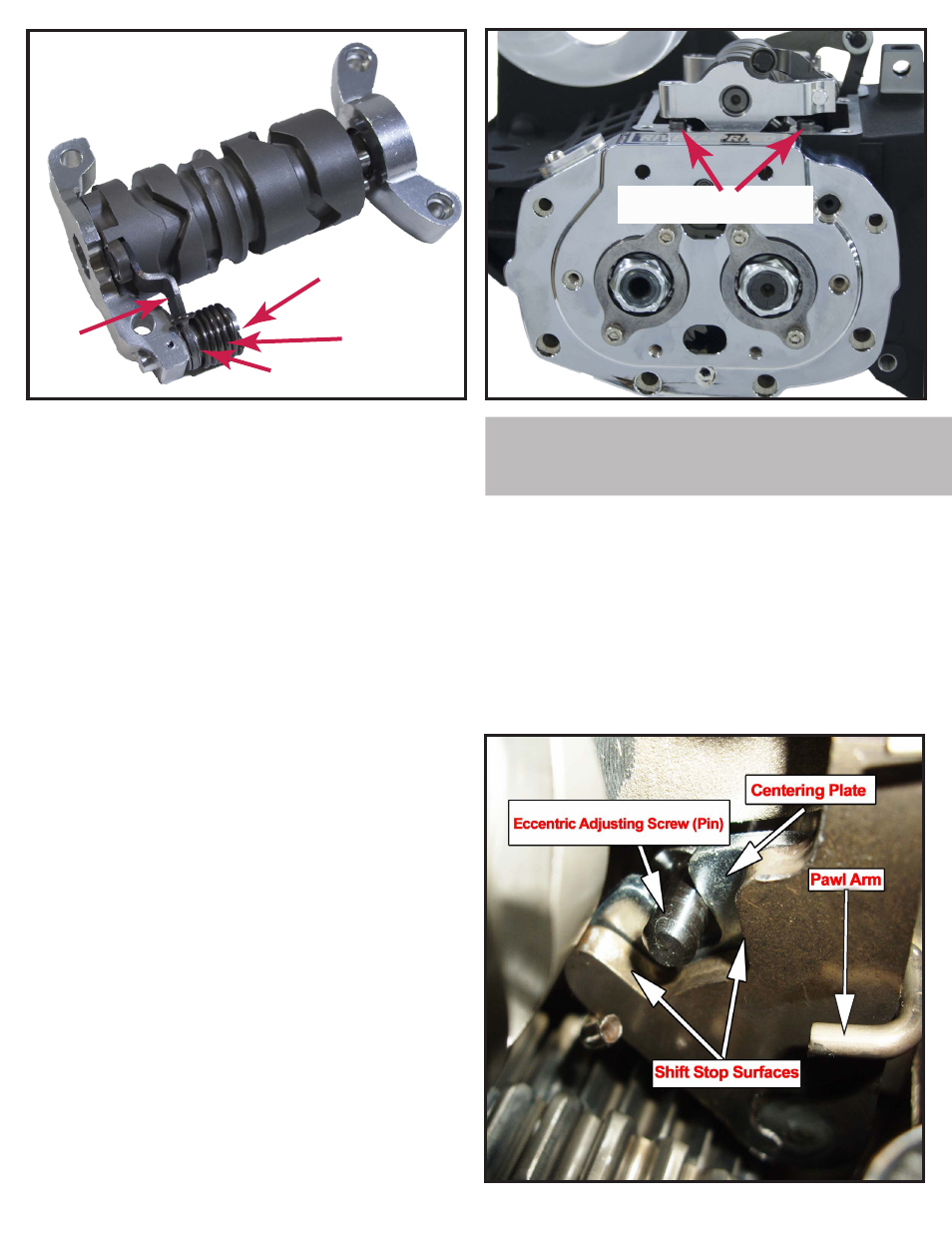

Spring Hanger

Spring

Spring Sleeve

Detent

Arm

Locating Dowels

Fig.11

Fig.12

Caution

Do not over tighten filler drain plugs as this may

cause leaks.

20. Install the transmission Lubricant drain plug and

tighten to 14-21 ft-lbs (19-28 Nm).

21. Fill the transmission with 20-24 oz. (590-710 ml) of

85/140 Bel Ray transmission lubricant from dry.

Install the transmission filler plug/dipstick in the

clutch release cover. Tighten the plug to 25-75 in-lbs

(2.8-8.5 Nm).

22. Adjust the clutch cable.

Fig. 13

1108-0033

13. Neutral safety switch installation is as follows:

a.Verify that the transmission is in neutral.
b.Lubricate the neutral safety switch O-ring with

clean transmission oil.

c.Using appropriate size box end wrench, install

neutral switch with O-ring in the transmission top

cover. Tighten to 120-180 in-lbs (13.6-20.3 Nm.)

d.Install the connector/s on neutral switch stud/s.
14. Install Clutch cable fitting into clutch release cover.

Do not tighten at this time.

15. Hold clutch cable coupling with button facing out-

board. Place cable end in recess of coupling. With

ball sockets facing outboard, place hook of inner

ramp on button of coupling. Holding inner ramp

and coupling together, turn the assembly over.

Place the inner ramp (ball socket side down) over

balls in outer ramp sockets. Install the retaining

ring so that the opening is above and to the right

of the outer ramp tang slot in the clutch release

cover.

16. Verify that the two locating dowels are in place on

the transmission side door. Place a new gasket on

the dowels.

17. Holding the clutch release cover in position

against transmission side door, Install six socket

head screws, then alternately tighten screws to

120-144 lbs (13.6-16.3 Nm)

18. Tighten the clutch cable fitting to 36-60 in-lbs (4-7Nm).
19. Install the transmission drain plug using Teflon

tape or pipe compound to seal. (1/8” NPT fitting).
