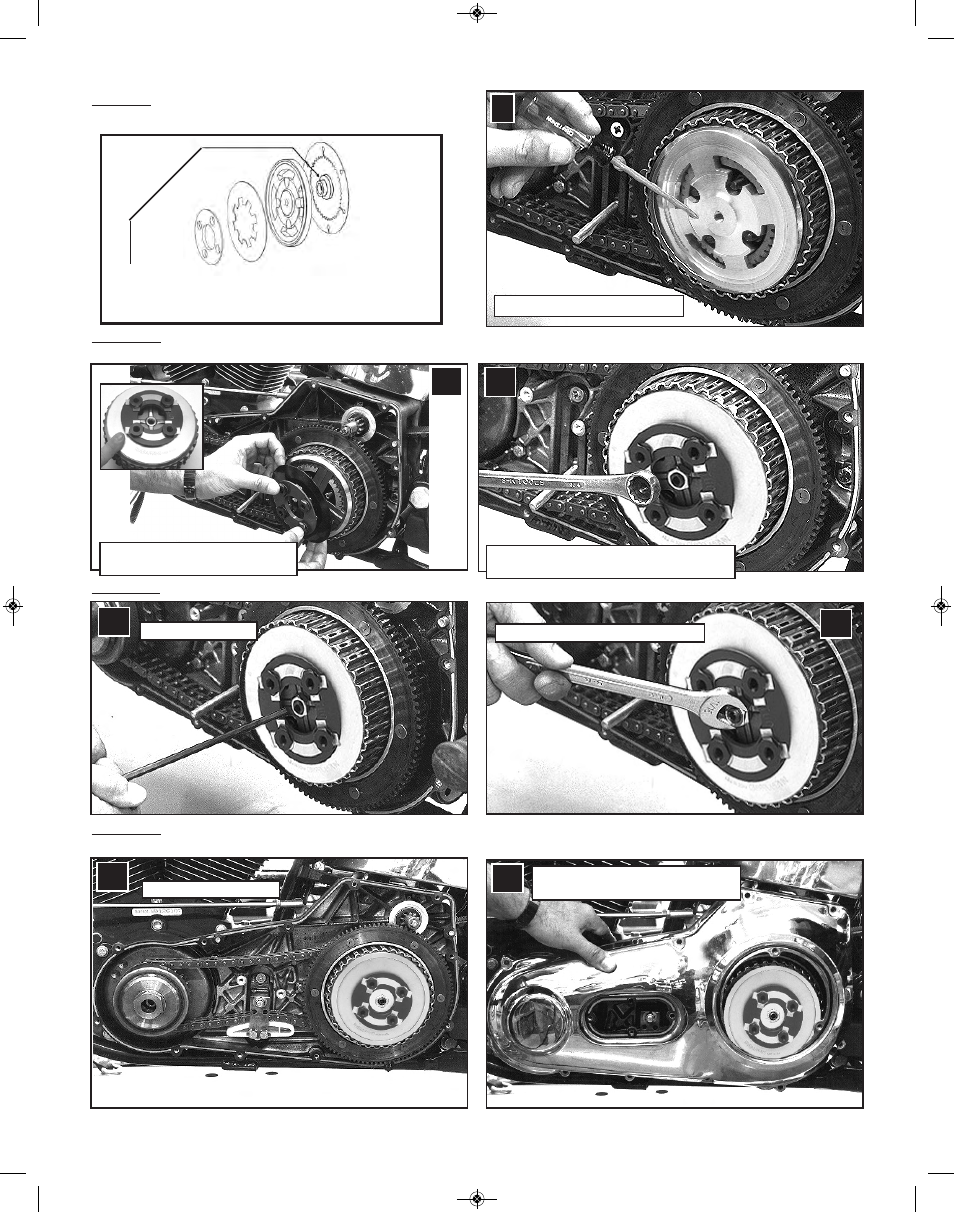

STeP 10:
The diaphragm spring & spring retainer are installed next. (spring retainer goes beveled side in). Tighten the shouldered
nuts equally (cross pattern) until they bottom.
Spring retainer beveled side in
with lock tabs in place as shown
Tighten shouldered nuts until they
bottom, bend over locking tabs.
Install the pressure plate!
9
10
STeP 9: Install the pressure plate as shown!
Use your OEM adjuster screw!
STeP 12: Check and adjust primary chain tension as needed. Re-install the outer primary cover using a new gasket,
and fill the chain case with Dextron III ATF to the bottom of the ring gear.
Re-install the outer primary cover.
Fill with ATF, go riding! Adjust chain tension.
12
Tighten the adjuster screw lock nut.
STeP 11:
Adjust the clutch as you would normally using the center bolt adjuster.
Adjust the clutch
11
The rivera Pro-Clutch TM 1056-0003 requires that the
clutch hub nut spacer (2057-0006) be installed with
the big-end towards the transmission as shown.
