PAGE 12 IN600 INSTALLATION AND OPERATION MANUAL
INTERNAL ADJUSTMENTS
1 Mic/Line HPF
Each of the 4 mic/line inputs has a 150Hz HPF. Moving the jumper to the
IN position will enable the fi lter. The factory default is OUT.
2 Mic/Line mix to...
The mic/line mix can be sent to the the surround sound left and right and/or the
sub output. There are 3 jumpers with two postions, on or off. The default setting
is off.
3 Stereo channels to surround output
The stereo mixed signal can be routed to the rear surround left and right outputs.
There are 2 jumpers with two positions. The left input will go to the left surround
output when the left jumper is set and the right input will go to the right surround
output when the right jumper is set. The default setting is off.

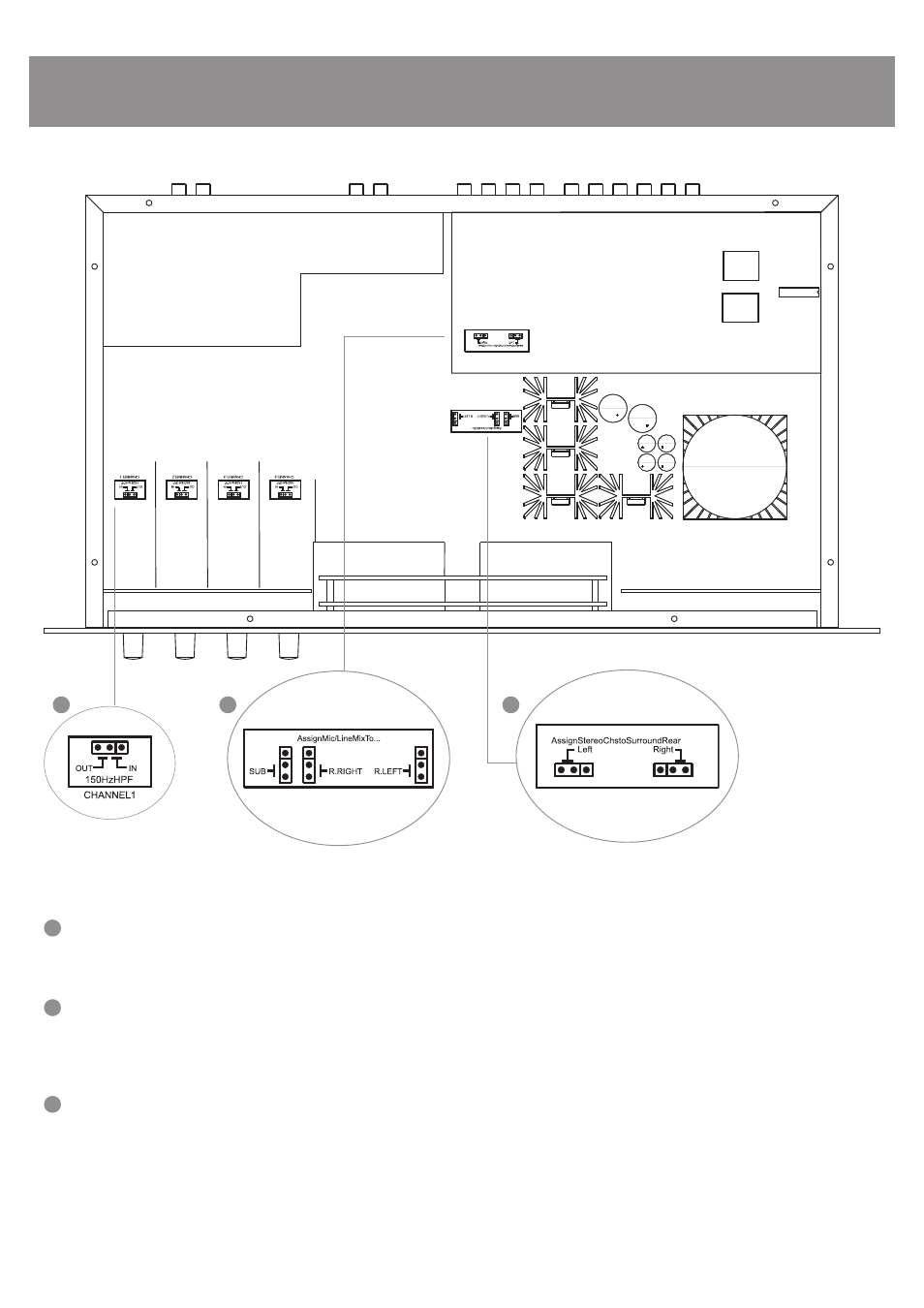

The following routing confi gurations can be made inside the IN600. Access to the inside the the IN600 should only be performed by a qualifi ed person.
1 2 3
