- 26 -
400-A400 Ultimate Roller Stand
Assembly Instructions
Kit Contents:
16ea. 5/16-18x1/2 HHCS
2ea. 3/8-16x4 HHCS,
2ea. 3/8-16x1-3/4 HHCS
4ea. 3/8 Flat Washers
4ea. 3/8 Lock Washers
4ea. 3/8-16 Nuts
2ea. Swivel Casters, Locking
2ea. Solid Casters
1ea. Instruction Sheet
1.
Uncrate the stand. Tip the stand up onto its end by lifting the round tube handle.
2.

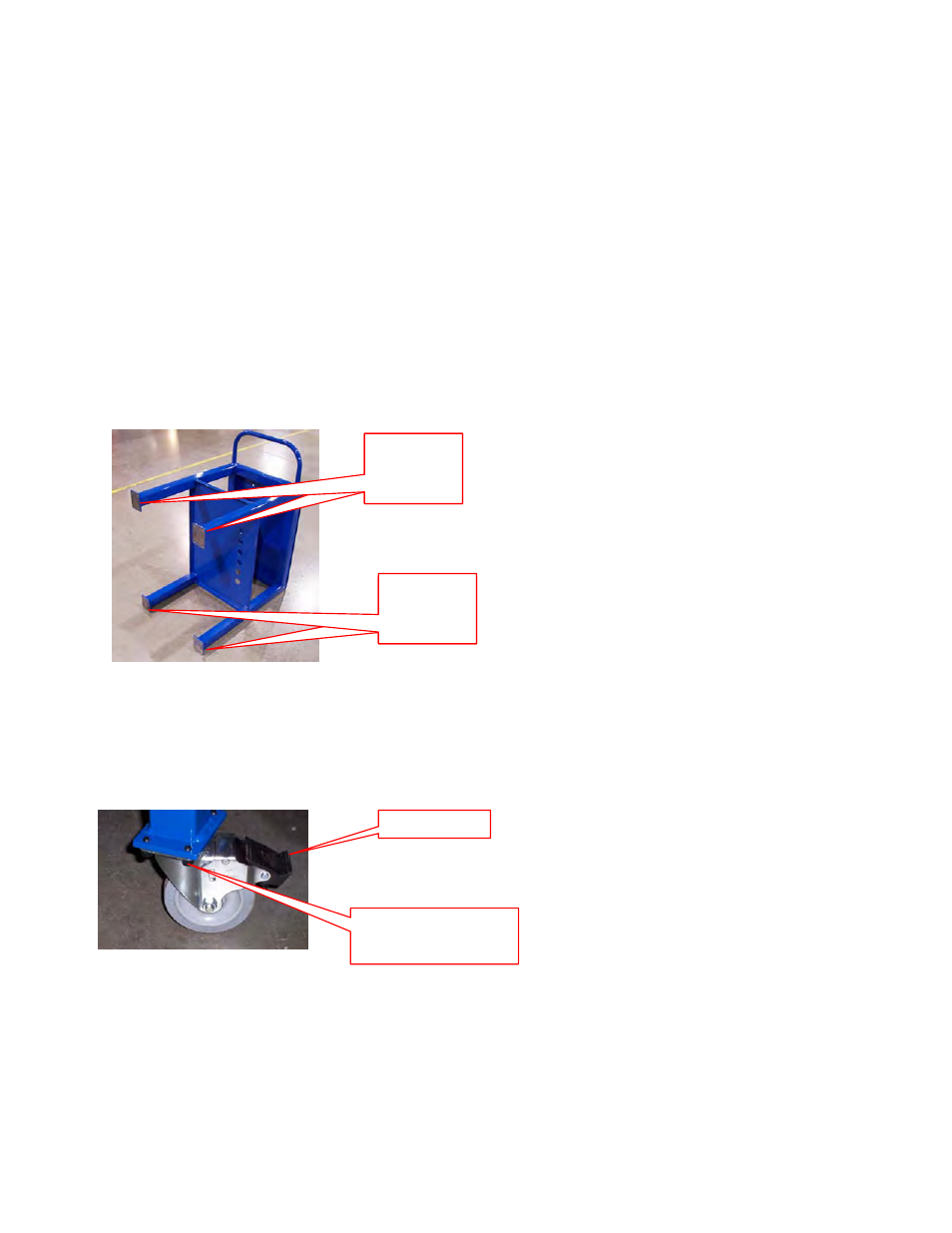

Using the 5/16” X 1/2” Long Hex Bolts attach the Swivel Casters to the legs on the same end as the handle. Install the
bolts from the wheel side and thread into the threaded mounting plate. Attach the solid caster to the opposite legs as
shown above. These bolts also thread into the mounting plate from the wheel side. Tighten all bolts.
3.
Turn the stand upright and check caster movement. Be sure the wheel locks work correctly. These casters, when
locked, stop the wheel from rolling as well as the locking the swivel.
Solid
Casters
This end
Swivel
Casters
This end
Swivel
Casters
This end
Solid
Casters
This end
Bolts installed
from wheel side
Wheel Lock
