400 Single Speed to Variable Speed Conversion
#400-202

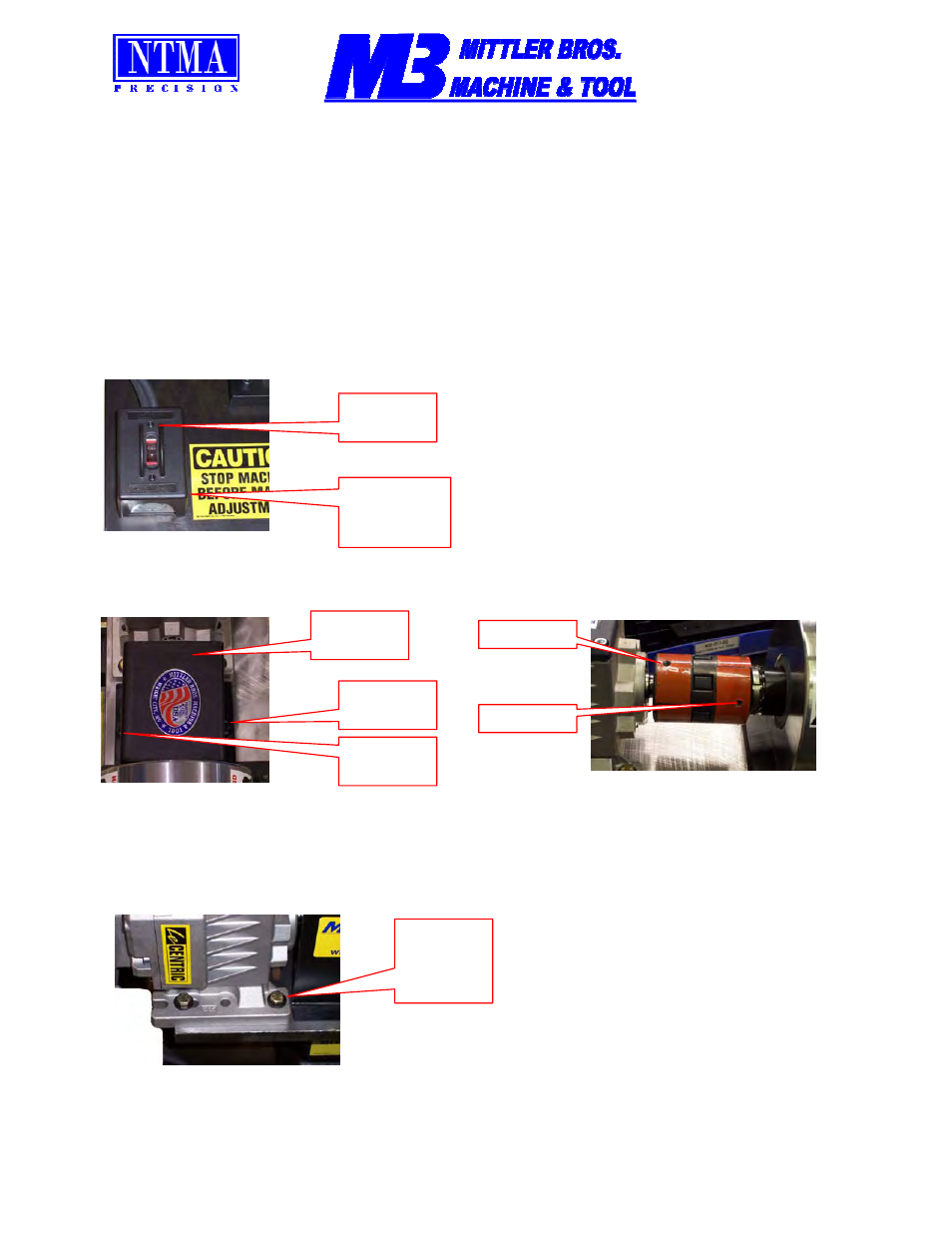

1. Unpack the boxes and be sure all the parts are included. See the list at the end of these
instructions.
2. Unplug the machine from any power source. Remove the switch box from the base plate by
removing the cover and unscrewing from the base plate.
Remove
Cover
Unscrew
from Base
Plate
3. Remove the Love Joy Cover by removing the two screws. Then loosen the set screws on each
half of the Love Joy coupling.
Love Joy
Cover
Set Screw
Remove
Screw
Remove
Screw
Set Screw
4. With someone holding up the end of the motor remove the four (4) bolts holding the motor /
gearbox assembly to the mounting plate. Remove the complete motor, gearbox, cord & switch
assembly from the machine. Save the mounting bolts to remount the motor / gearbox.
Mounting
Bolts. 2
on Each
Side
5. Remove the Love Joy coupling half from the spindle shaft if it did not slide off in step 4.
