- 25 -

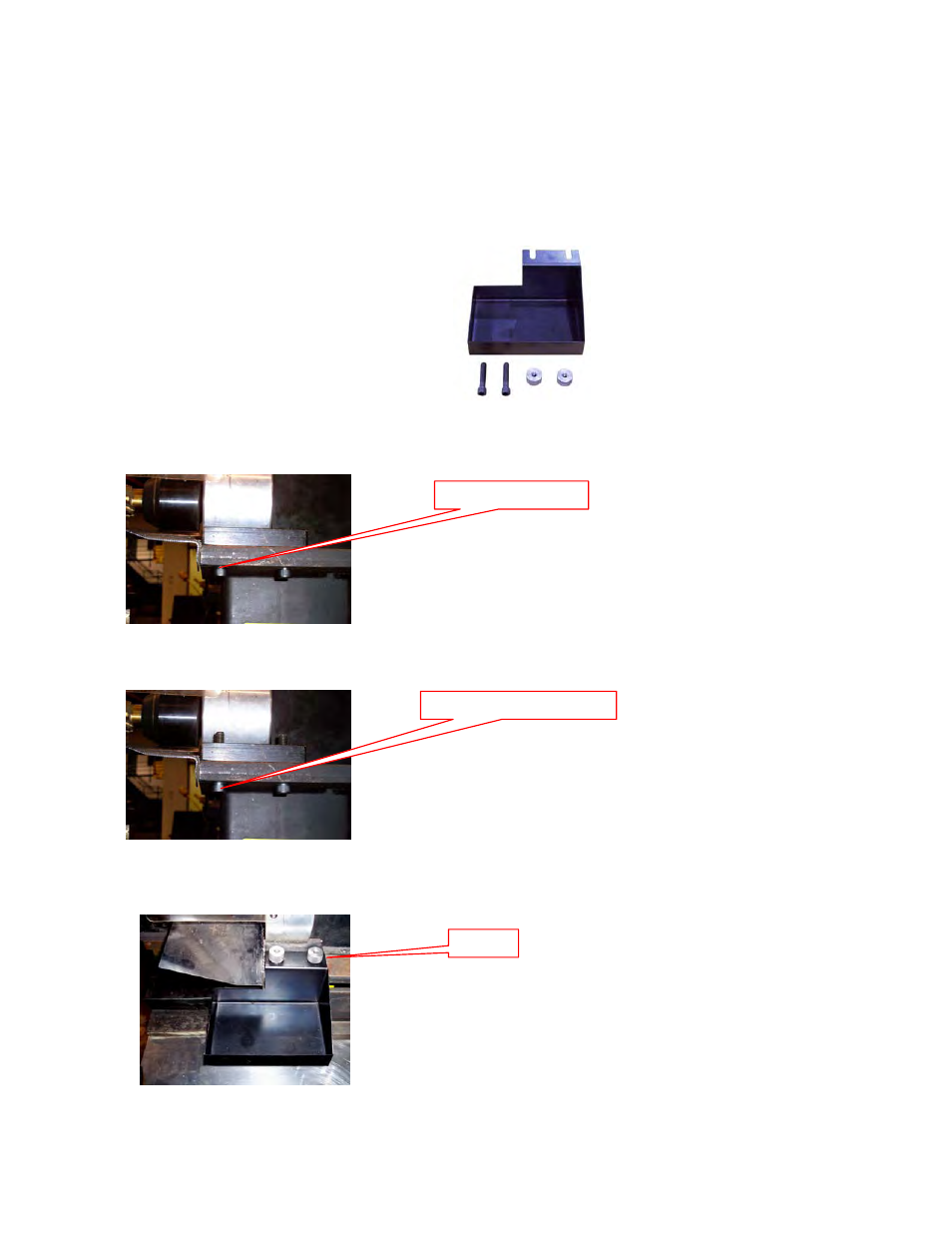

Optional Ultimate Tube Notcher Accessories
400-100 Chip Tray
Installation Instructions
Kit Contents:
1ea. Tray
2ea. 3/8-16 x 2” SHCS
2ea. Nuts
1ea. Instruction Sheet
1. Loosen and remove one of the Spindle Bearing Block mounting bolts as shown. Be sure to
remove only one bolt.
2. Replace the removed bolt with one of the supplied 2” long SHCS as shown below. Tighten the
bolt.
3. Repeat steps 1 & 2 above for the remaining bolt.
4. Slip the Chip Tray over the protruding threads and secure with the supplied nuts
Nuts
Remove one bolt
Replace with 2” SHCS
