Part description 3796
3196
3796
HT 3196
CV 3196
LF 3196
3198
NM 3196
Casing Impeller Cover Power end

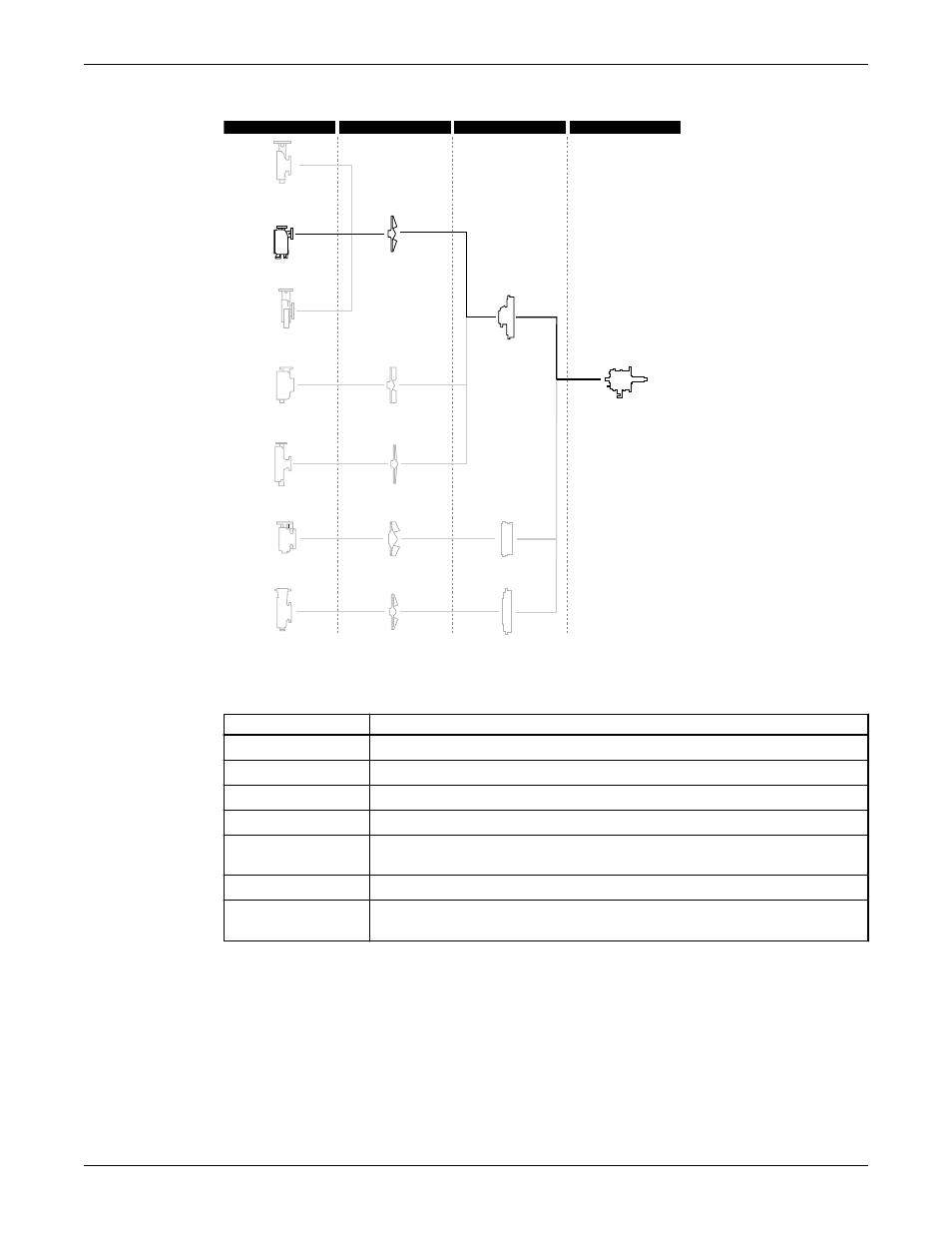

Figure 6: 3796 part description
This table describes the pump casing parts.
Table 3: Casing
Part Description
Discharge Top-centerline
Casing ventilation Self-venting
Priming chamber integrally cast allowing the pump to evacuate air to prime itself
Gasket fully confined
Mounting method Integral foot support for maximum resistance to misalignment and distortion due
to piping loads
Standard flange ANSI class 150 raised-face serrated flange
Optional heater Immersion heater to prevent the liquid in the priming chamber from freezing in
outdoor applications
Impeller
The impeller is
• fully open
• screwed onto the shaft
The threads are sealed from the pumped liquid by a Teflon O-ring.
Product Description (Continued)
