6 L25-007 Rev. 2
5. Full Hood for the CG-60
The CG-60 hood frame is designed only for use on the CG-60. It cannot be used on the CGL or LPAGA/LPG models.
Step 1 The Windguard
Assemble the front and rear wind guards using the ½” long ¼-20 screws and the acorn nuts from the hardware bag in the wind
guard package. Mount the wind guards on the charbroiler frame using the ¾” screws and the hex nuts, as illustrated in the
close-up.
Step 2 The Hood
The hood mounting frame has hood brackets that are already welded in place. Place the frame over the installed front and rear
wind guards and fit into place. With a minimum of two persons, lift the hood onto its brackets, making sure the pivot
bushings sit in the bracket cradle on each side, as shown in a close-up illustration on a page above.

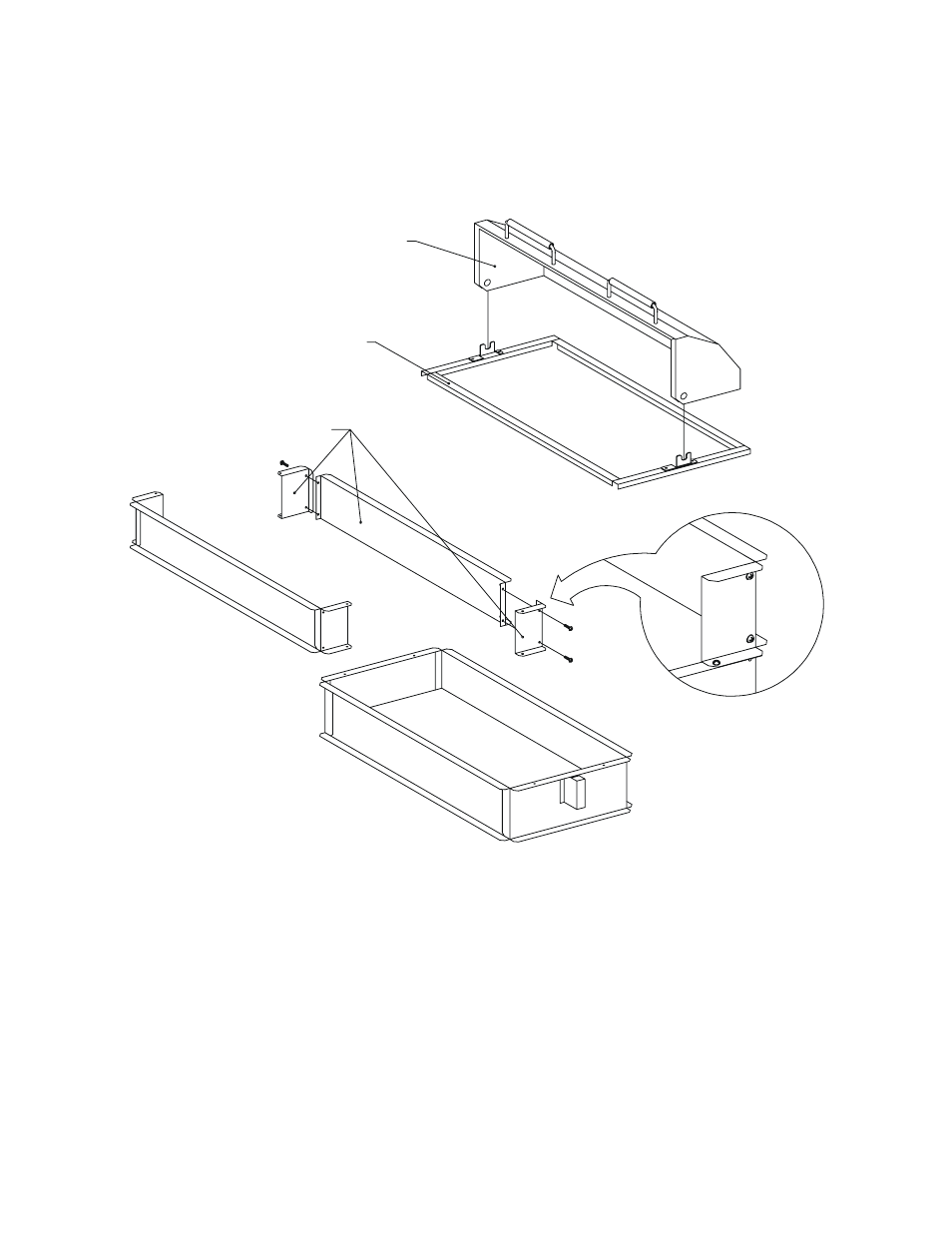

9806-0427000
60” HOOD ASSEMBLY
5113-0345001
HOOD MOUNTING FRAME
9810-0426600 (60”)
3-PIECE WINDGUARD SET
ASSEMBLED CORNER
10545C7.DWG
CHARBROILER
FRAME
