4 L25-007 Rev. 2
3. Single Hood for the LPAGA/LPG-30

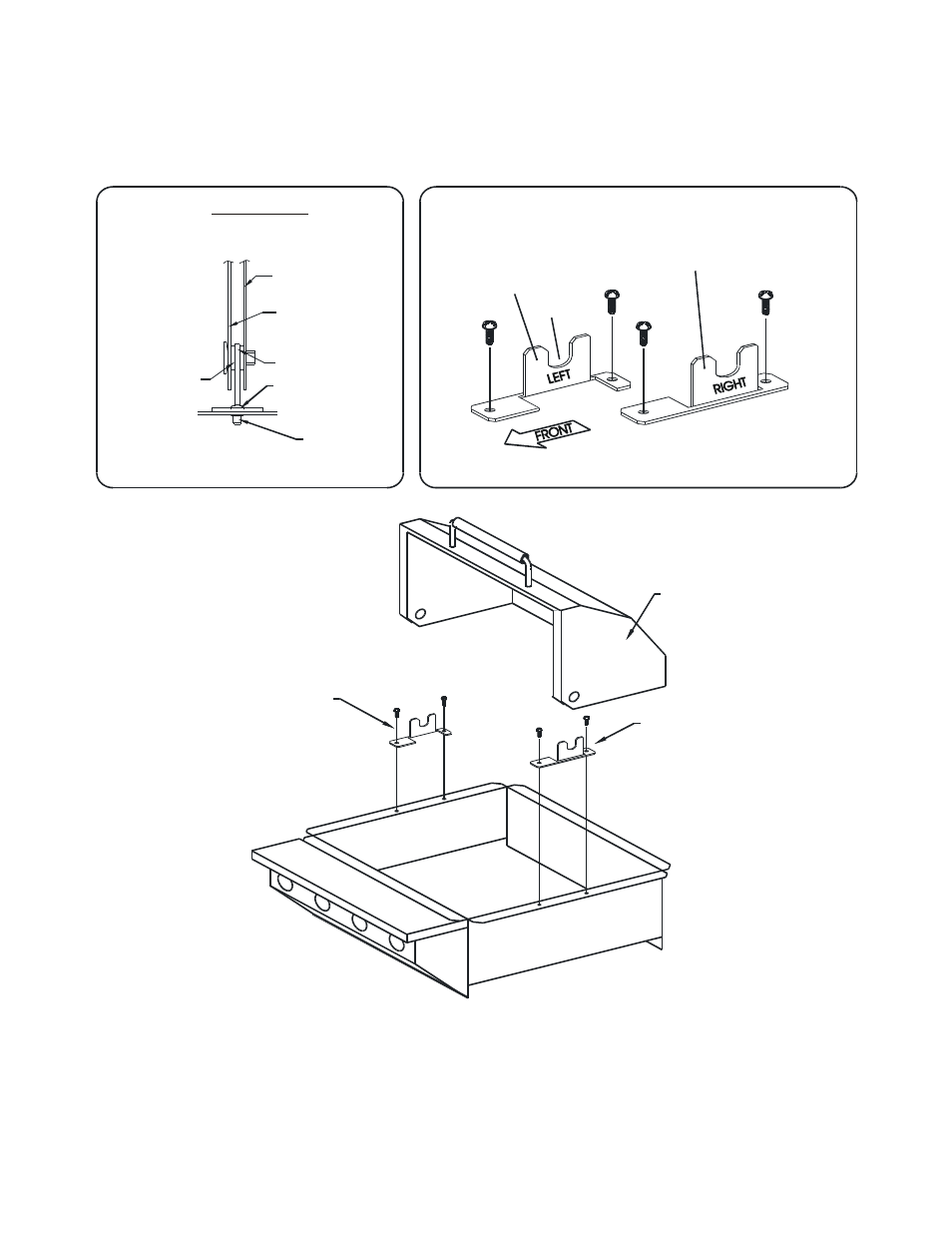

Mount a pair of outer hood brackets as shown. Lift the hood onto its brackets, making sure the pivot bushings sit in the
bracket cradle on each side, as shown in the close-up illustration above.
BRACKET
MOUNTING
FRONT VIEW
INNER HOOD
OUTER HOOD
PAN HEAD
SCREW
RIV-NUT
PIVOT
BUSHING
CRADLE
5402-1187701
HOOD, BRACKET
OUTER LEFT
5402-1187702
HOOD,BRACKET
OUTER RIGHT
UNIT BACK
UNIT FRONT
10545C3.DWG
RIGHT OUTER
MOUNTING BRACKET
LEFT OUTER
MOUNTING BRACKET
9806-0965100
30” HOOD ASSEMBLY
