Magikitch'n CG - Manual (Page 5)

3 L25-007 Rev. 2

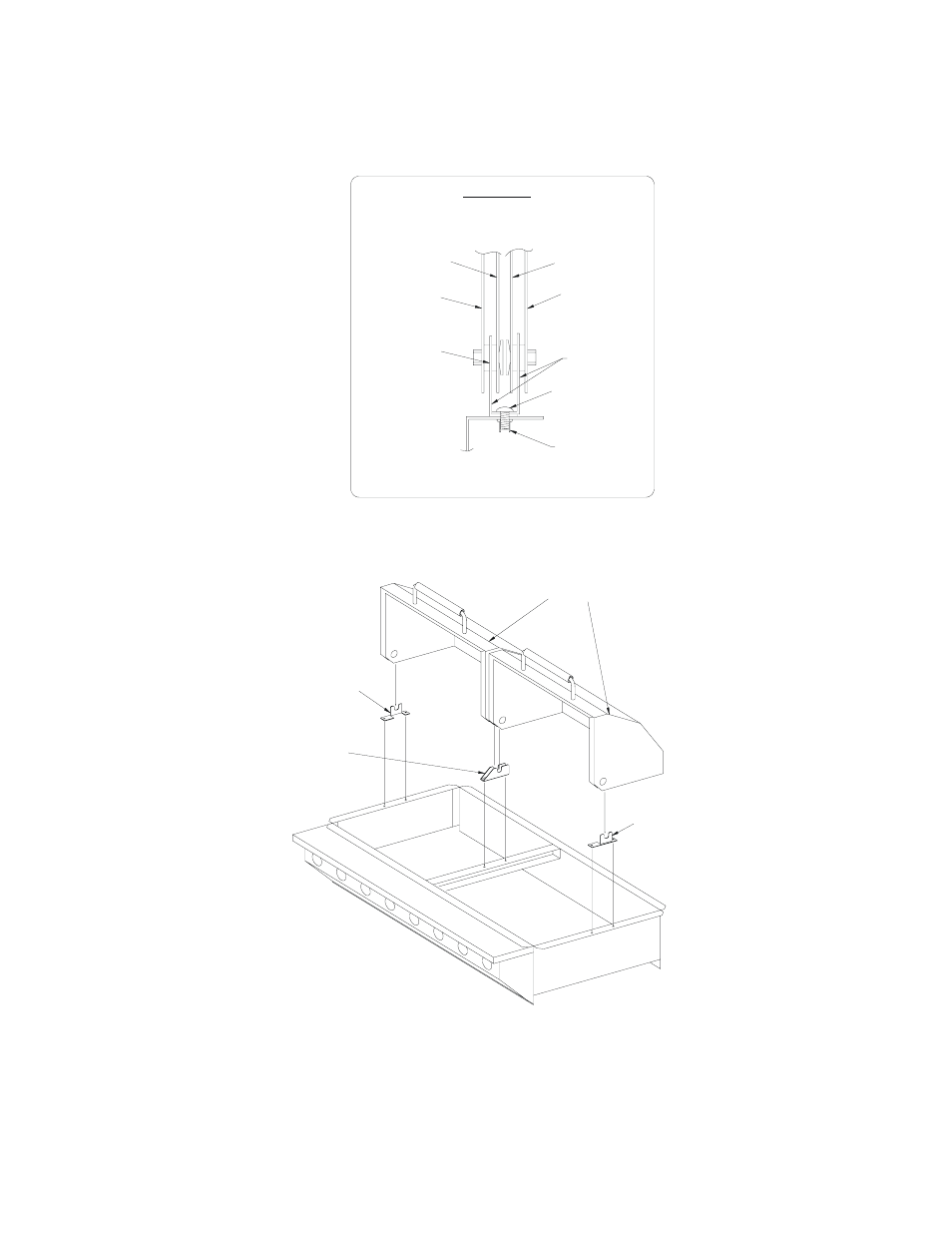

2. Twin Hoods for the LPAGA/LPG-60
Mount a pair of outer and a pair of center hood brackets as shown above. Lift the hoods, one at a time, onto their brackets,
making sure the pivot bushings sit in the bracket cradle on each side, as shown in the close-up illustration above.
(CENTER MOUNTING BRACKET SHOWN)
FRONT VIEW
10545C1.DWG
RIGHT SIDE
RIGHT SIDE
INNER HOOD
OUTER HOOD
LEFT SIDE
PIVOT BUSHING
INNER HOOD
OUTER HOOD
LEFT SIDE
PAN HEAD SCREW
CRADLES
RIV-NUT
UNIT FRONT
UNIT BACK
10545C1.DWG
LEFT OUTER
RIGHT OUTER
CENTER MOUNTING BRACKETS,
(1) LEFT AND (1) RIGHT
9806-0965100
30" HOOD ASSEMBLIES
MOUNTING BRACKET
MOUNTING BRACKET
