8 L25-007 Rev. 2

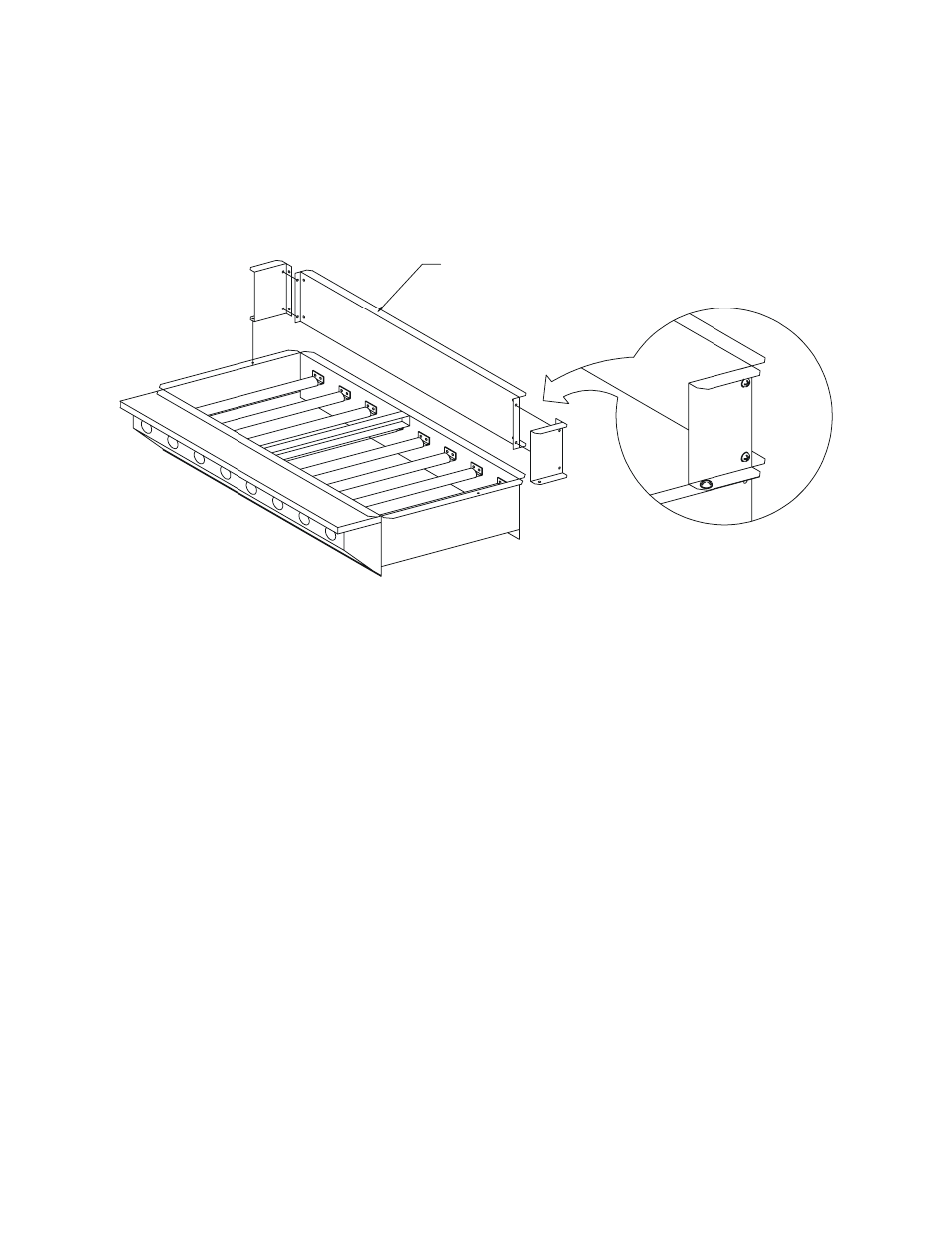

7. The Windguard Option
Assemble the Windguard ends to the back using the ½” long ¼-20 screws and the acorn nuts from the hardware bag in the
Windguard package. Mount the Windguard on the charbroiler frame (either at the back or in the front) using the ¾”
screws and the hex nuts, as illustrated in the close-up.
10545C9.DWG
ASSEMBLED CORNER
9810-0426500 (30”)
9810-0426600 (60”)
3-PIECE WINDGUARD SET
