Team Associated TC6.2 - Manual (Page 9)

9

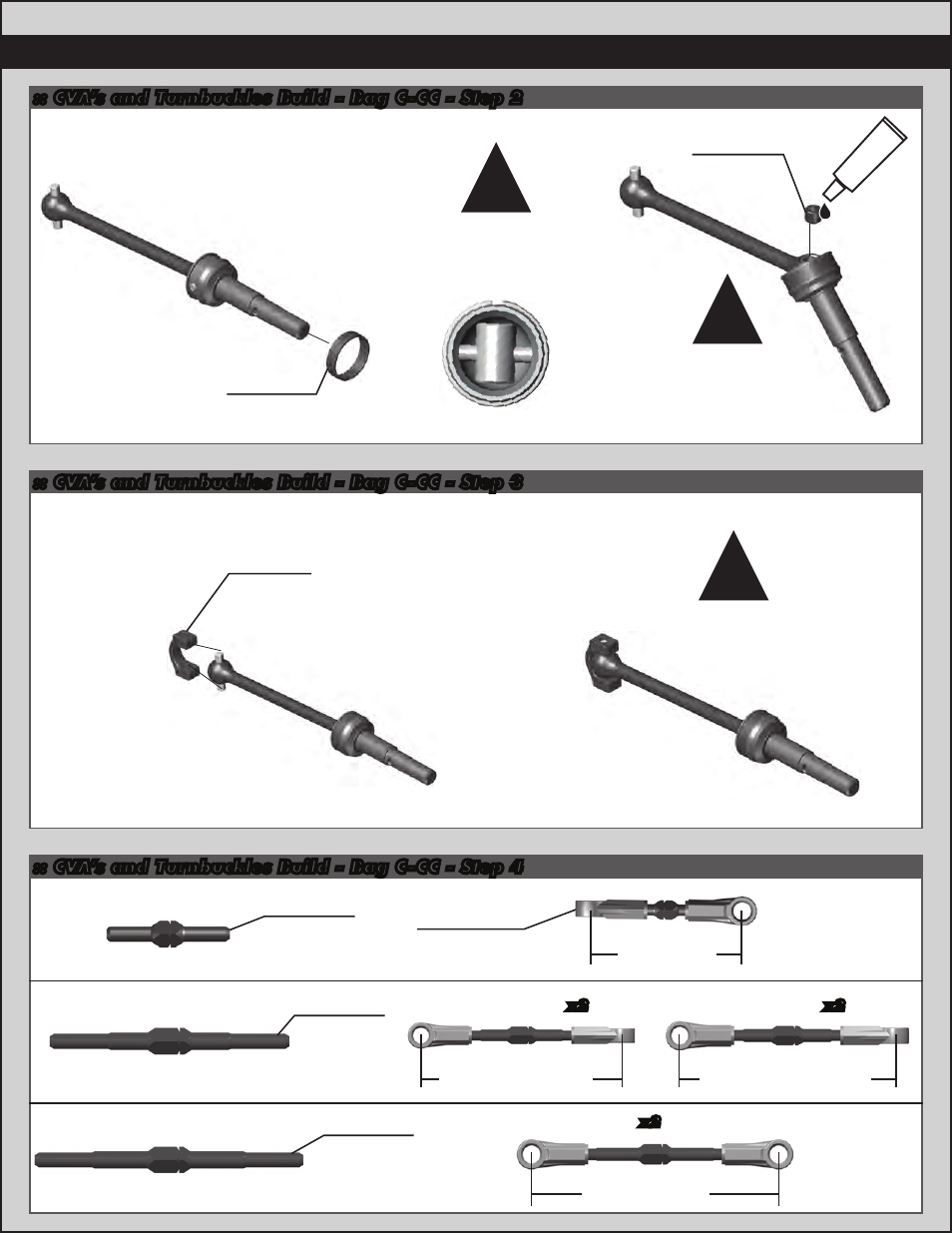

:: CVA’s and Turnbuckles Build - Bag C-CC - Step 2
:: CVA’s and Turnbuckles Build - Bag C-CC - Step 3
:: CVA’s and Turnbuckles Build - Bag C-CC - Step 4
Servo Turnbuckle
Steering Turnbuckle
Camber Turnbuckle
34.65mm
1418
0.825”
turnbuckle
1402
1.375”
turnbuckle
1405
1.875”
turnbuckle
49.50mm
57mm
x2
46mm
x2 x2
31305
Turnbuckle
eyelet
Front Rear
31238
CVA blade
31237
retaining
clip
31500
M3x2.5mm
setscrew
Build four
CVA’s
Note!
Align the gap in the
pin retainer to be
opposite of the CVA
pin.
!
! #1596
thread lock
Thread lock
not included!
!
