Team Associated TC6.2 - Manual (Page 15)

15

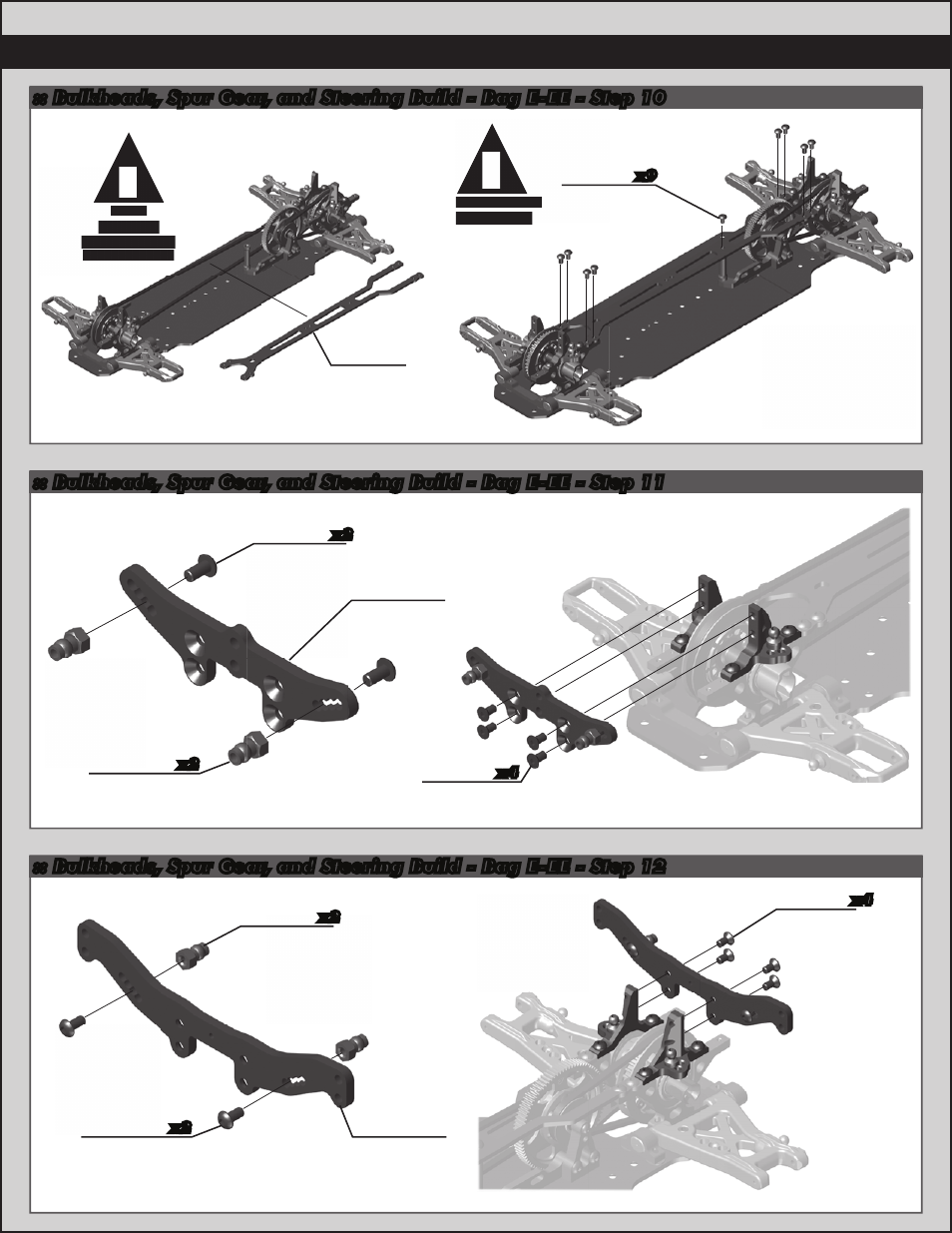

:: Bulkheads, Spur Gear, and Steering Build - Bag E-EE - Step 10
:: Bulkheads, Spur Gear, and Steering Build - Bag E-EE - Step 11
:: Bulkheads, Spur Gear, and Steering Build - Bag E-EE - Step 12
Note!
Place top
plate between
the front belt.
!
Belt hidden for
view clarity!
!
x9 31530
M3x5mm
bhcs
31531
M3x6mm
bhcs
31250
Shock
bushing
31541
M3x6mm
fhcs
31541
M3x6mm
fhcs
x2
x2
x4
x4
31250
Shock
bushing
31531
M3x6mm
bhcs
x2
x2
31601
TC6.2
top plate
31604
TC6.2 front
shock tower
31605
TC6.2 rear
shock tower
