Team Associated TC6.2 - Manual (Page 10)

10

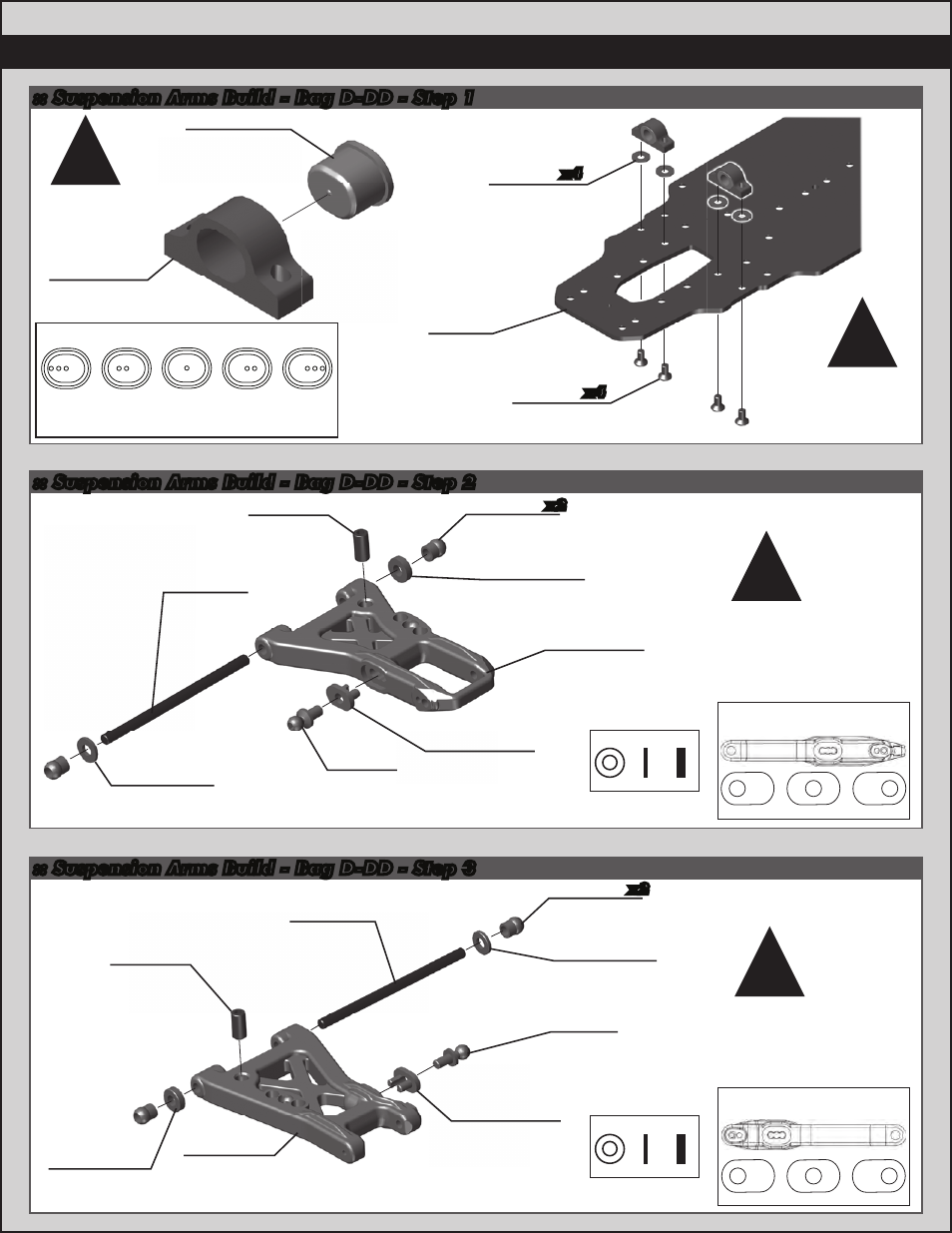

:: Suspension Arms Build - Bag D-DD - Step 1
:: Suspension Arms Build - Bag D-DD - Step 2
:: Suspension Arms Build - Bag D-DD - Step 3
Build left
and right
sides
Build four
inner arm
mounts
Install
front and
rear
Build left
and right
sides
!
!
!
!
Wheel Base Shims
1mm 2mm
Wheel Base Shims
1mm 2mm
31280
5mm
ballstud
(short)
31221
Inner
hinge pin
31200
Wheelbase
shim (1mm)
31200
Wheelbase
shim (1mm)
31200
Wheelbase
shim (2mm)
31200
Wheelbase
shim (2mm)
25227
M4x8mm
setscrew
31356
Front
suspension
arm
31356
Front
suspension
arm insert
(B)
31221
Inner
hinge pin
25227
M4x8mm
setscrew
31283
5mm
ballstud
(long)
31357
Rear
suspension
arm
31357
Rear
suspension
arm insert
(B)
x4
x4
x2
x2
31541
M3x6mm
fhcs
31600
TC6.2
chassis
4617
Front
bulkhead
shim
(0.5mm)
31619
TC6.2 Inner
arm mount
31621
Inner hinge
pin ball
31621
Inner hinge
pin ball
31620
TC6.2 arm
mount insert
(1 dot)
Suspension Arm Insert
(front)
A
A
B
B
C
C
C B A
A
B
C
Suspension Arm Insert
(rear)
Arm Mount Inserts
Negative to the inside of vehicle.
Positive to the outside of vehicle.
1 DOT
0 °
-2 DOT
-1/2 °
+2 DOT
+1/2 ° -1 °
-3 DOT +3 DOT
+1 °
