Team Associated TC6.2 - Manual (Page 17)

17

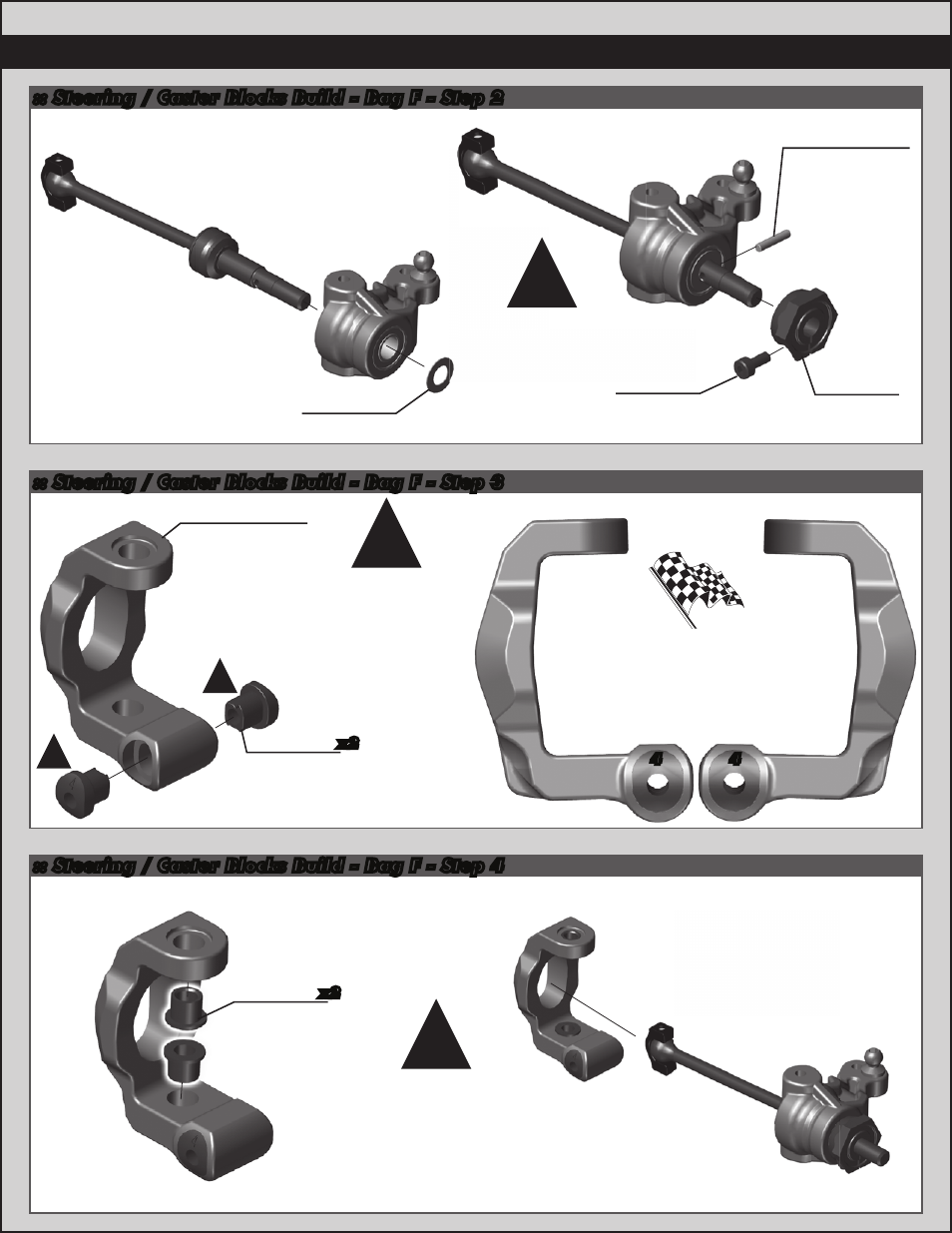

:: Steering / Caster Blocks Build - Bag F - Step 2
:: Steering / Caster Blocks Build - Bag F - Step 3
:: Steering / Caster Blocks Build - Bag F - Step 4
31214
Caster
block
bushing
x2
Use the supplied
symmetric inserts to
select caster angle. When
viewed from the front, the
number should be located
on the top side of the pin,
as shown in the view to the
right. When viewed from
the rear, the number should
be located on the bottom.
!
!
!
31358
TC6.1 caster
blocks
(left and right)
31358
TC6.1 caster
block
inserts
(4 deg)
x2
4
Right
4
Left
31162
Axle shim
31112
1/16” x 5/16”
dowel pins
31234
Clamping
wheel hex
31511
M2x5mm
shcs
Build left
and right
sides
Build left
and right
sides
!
!
RACERS TIP:
Use small amount ca glue to
permanently secure the caster
block inserts in the caster
blocks.
