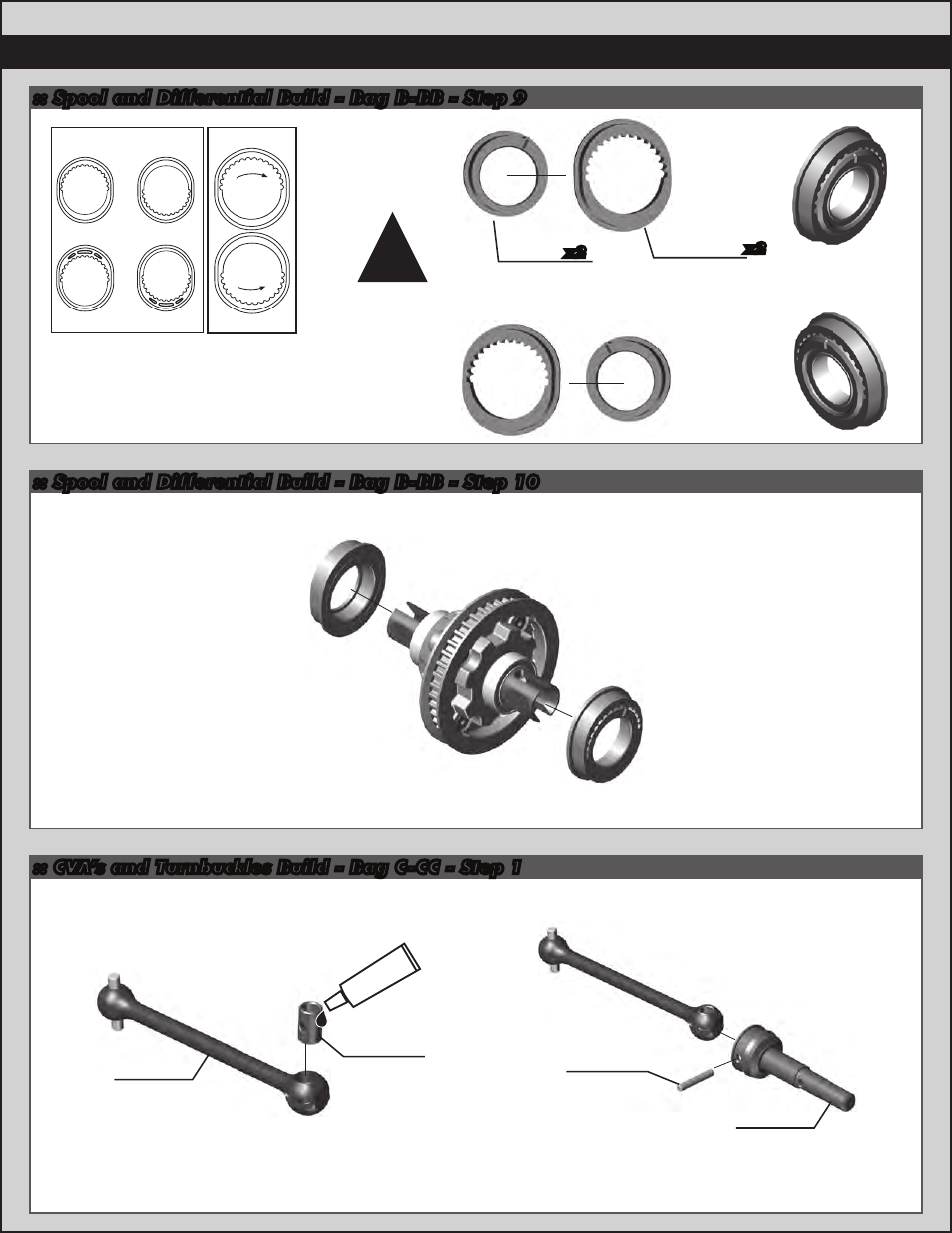

:: Spool and Differential Build - Bag B-BB - Step 9
:: Spool and Differential Build - Bag B-BB - Step 10
:: CVA’s and Turnbuckles Build - Bag C-CC - Step 1
31367
TC6.1 CVA
coupler
31367
CVA
cross pin
31368
TC6.1 CVA
bones
31369
TC6.1 CVA
axle
#6588
black grease
Use belt tension
position 7 for
standard setup.
!
Note!
Always use the same
cam position on both
sides of the car.
Right Side
Left Side
31615
Diff
bearing
cam
31615
Cam
holder
(mid-low)
x2 x2
Belt Tension
Number
View from left
side of car
17 32
16 1
Cam Position
Mid-Low Mid-High
Low High
