Team Associated TC6.2 - Manual (Page 16)

16

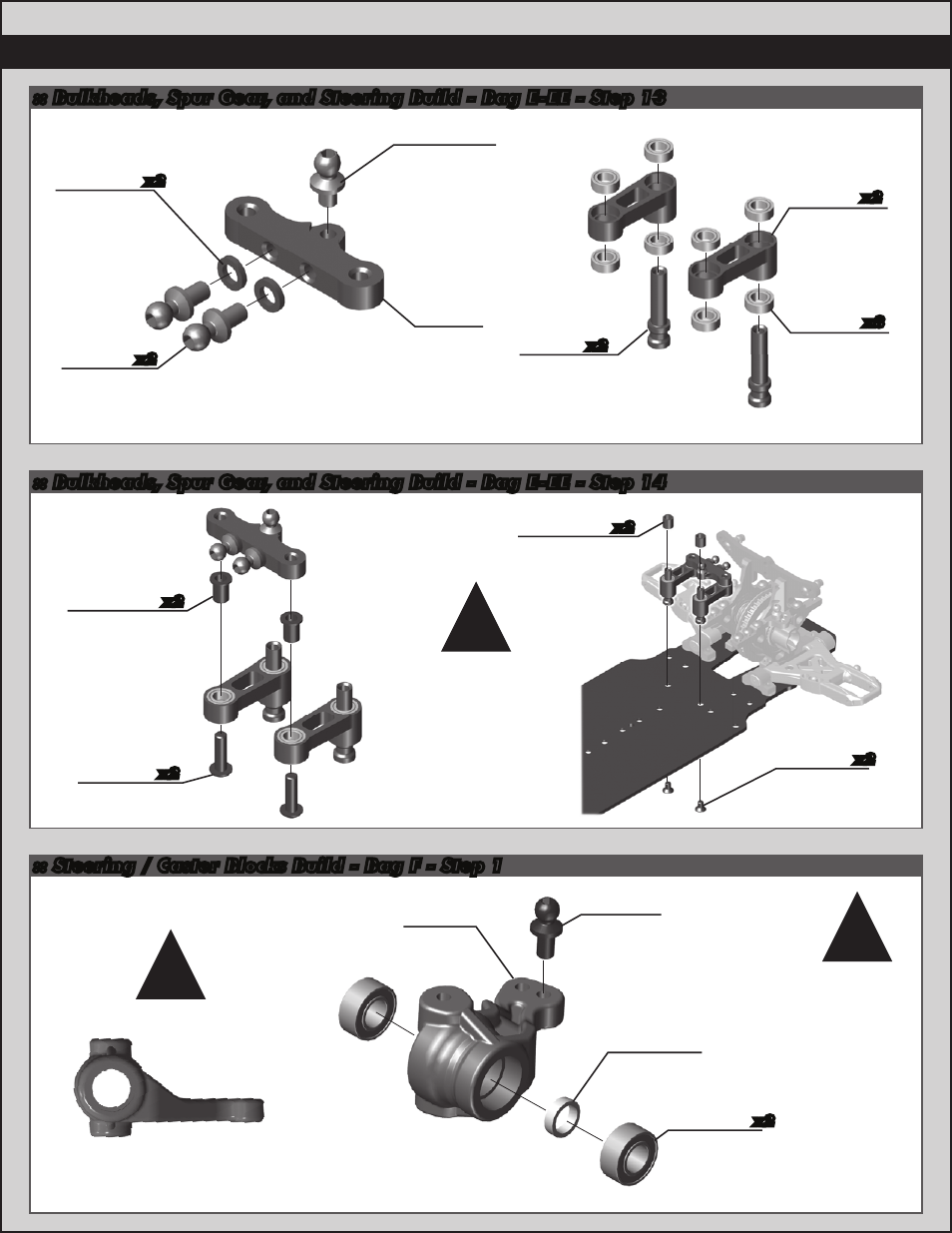

:: Bulkheads, Spur Gear, and Steering Build - Bag E-EE - Step 13
:: Bulkheads, Spur Gear, and Steering Build - Bag E-EE - Step 14
:: Steering / Caster Blocks Build - Bag F - Step 1
Note offset
(Left side shown)
!
25237
5x10mm
bearing
x2
31280
5mm
ballstud
(short)
31370
TC6.1
axle crush
tube
31360
TC6.1
steering
blocks Build left
and right
sides
!
31611
TC6.2 steering
rack hat
bushing
31609
TC6.2 steering
bellcrank post
spacer
25211
M3x10mm
bhcs
31609
TC6.2
steering
bellcrank
post
31403
Bearing,
4 x 7mm
31610
TC6.2
steering
bellcrank
31611
TC6.2
steering
rack
x2
x2
x2
x2
x8
x2
31286
FT ballstud
washer,
aluminum
(1mm)
31283
Ballstud,
long,
5mm
x2
x2
31374
TiN 3.25mm
ballstud,
short neck
31540
M3x5mm
fhcs
x2
Top Plate and
Belts hidden for
view clarity!
!
