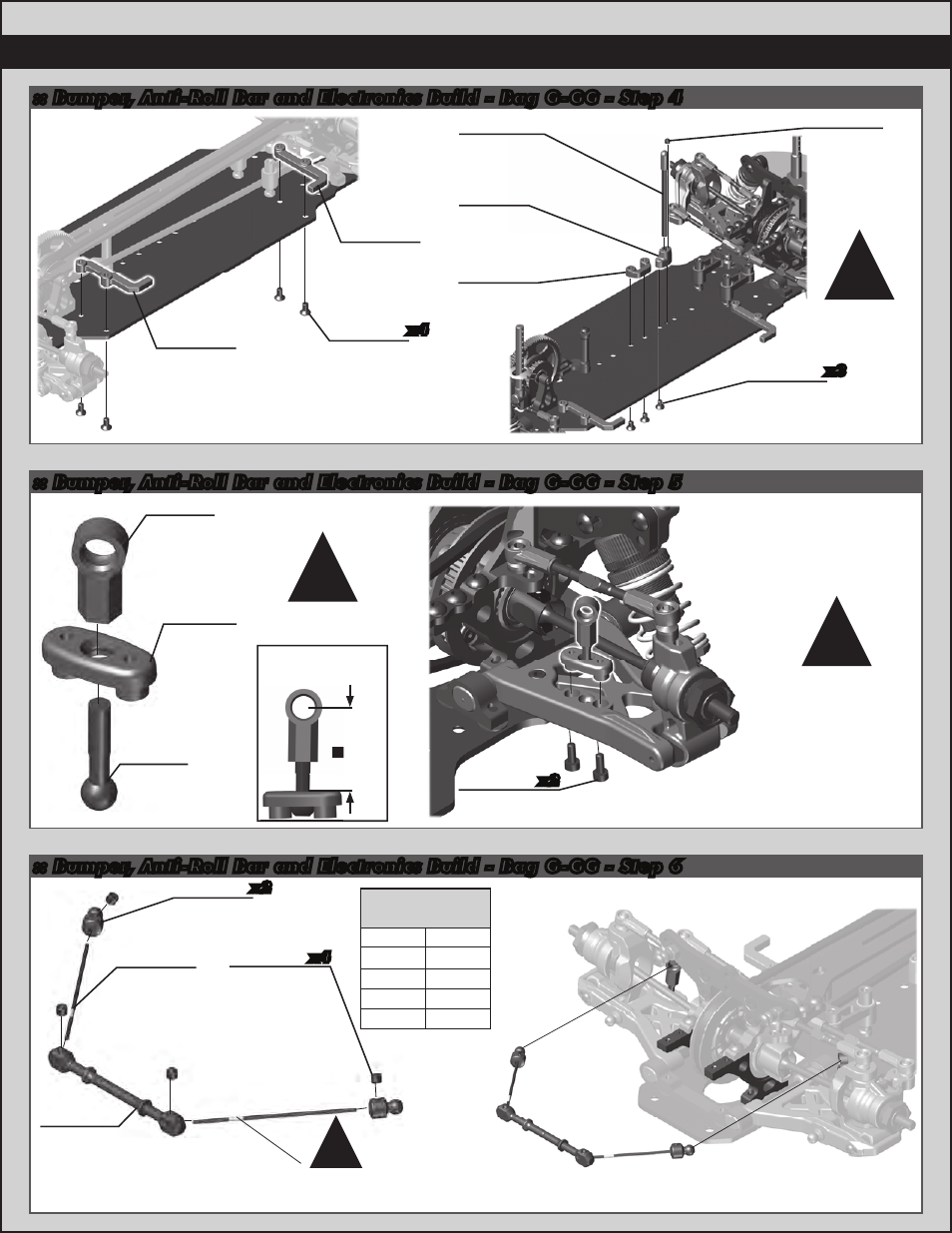

:: Bumper, Anti-Roll Bar and Electronics Build - Bag G-GG - Step 4
:: Bumper, Anti-Roll Bar and Electronics Build - Bag G-GG - Step 5
:: Bumper, Anti-Roll Bar and Electronics Build - Bag G-GG - Step 6
8828
Anti roll
bar cups
31269
Anti roll
bar pivot
mount
31058
Anti roll
bar
ballstud
Build four anti-
roll bar mounts
!
14mm
Anti Roll Bar
Link Adjust ment
Front 31628
Anti roll
bar pivot
31364
1.1mm
roll bar
(yellow)
31627
TC6.2
anti roll
bar tube
x4
x2
31500
M3x2.5mm
set screw
Shrink the colored
heat shrink tubing to
the anti roll bar!
!
x2 31511
M2x5mm
shcs
Install four
anti-roll bar mounts,
two for the front
arms and two for
the rear arms.
!
Anti Roll Bar
Color/Size Chart
Green
White
Blue
Yellow
Red
0.8mm
0.9mm
1.0mm
1.1mm
1.2mm
31540
M3x5mm
fhcs
31541
M3x6mm
fhcs
31626
TC6.2 lipo
brace
(offset)
31626
TC6.2 lipo
brace
31500
M3x2.5mm
set screw
31626
Inner lipo
brace
31626
Antenna
mount
6338
Antenna
tube & cap
x3
x4
Top Plate and
Belts hidden for
view clarity!
!
