Drawings
Beijer Electronics, MAEN983B 53

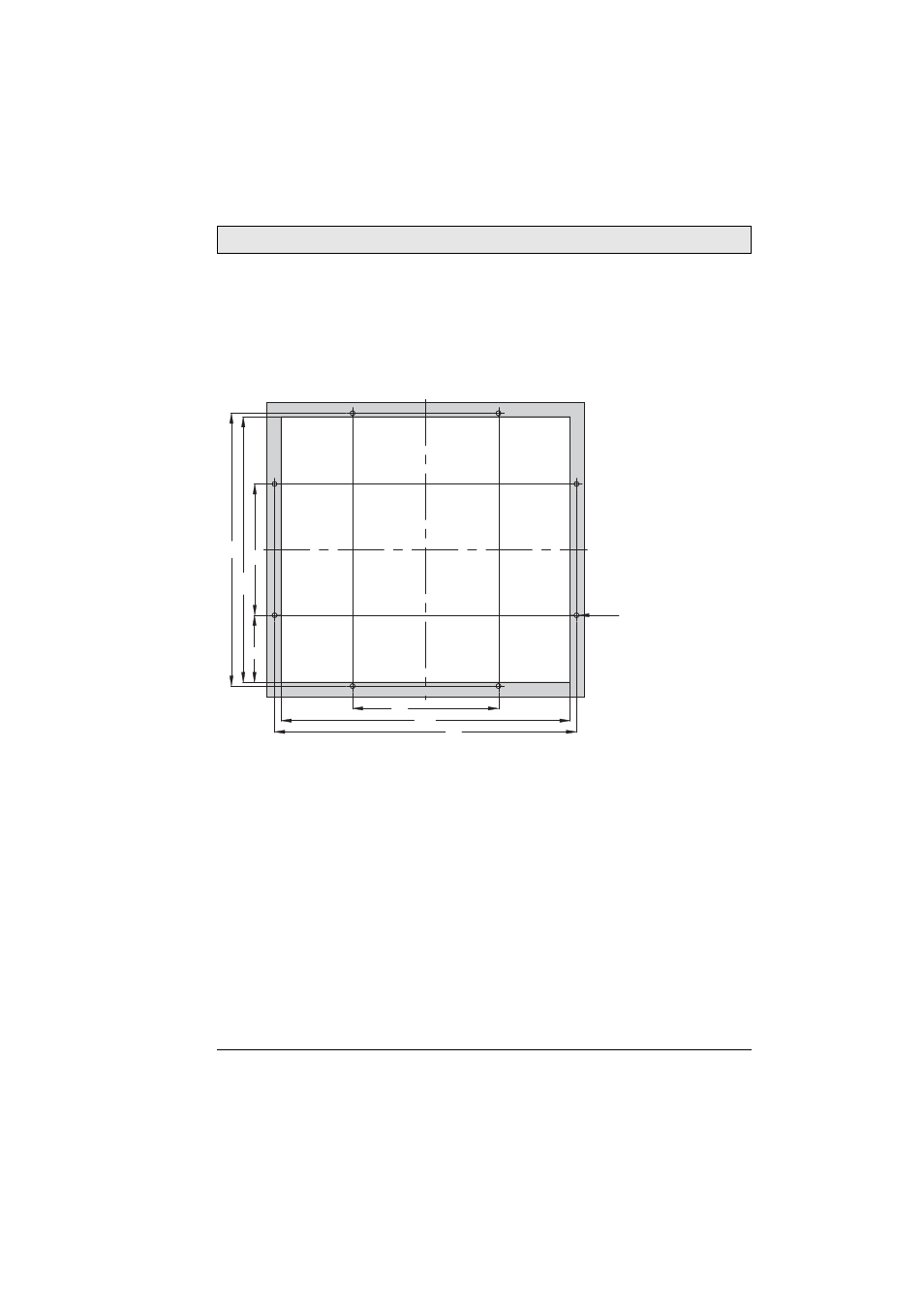

8.5 MTe 170/T170 Nautic Cut Out
Drawing
Cut out dimensions: 396.0 x 364.0 mm, tolerance +1 mm. 15 mm is required
for mounting screws on all sides = 426.0 x 394.0 mm
Front plate dimensions: 430.0 x 390.0, tolerance ±0.2 mm.
Mounting method: 8 x M6x25 steel screws DIN 6912. Screws and o-ring seals
are included.
Max. 8 mm thick mounting frame.
180
364
+1 0
374
92
200
396
+1
0
414
8 x holes Ø 6.5 mm
