Drawings
50 Beijer Electronics, MAEN983B

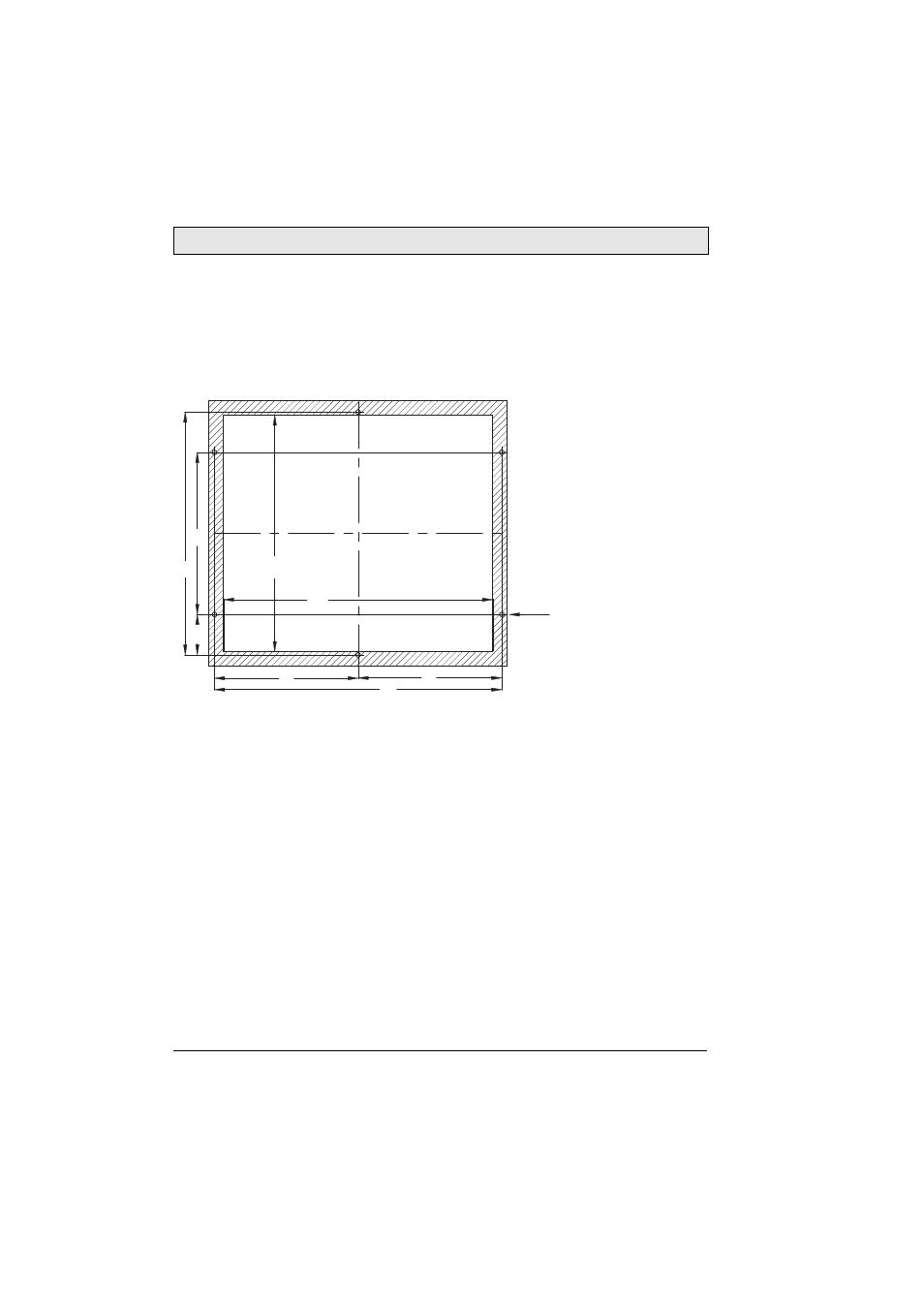

8.2 MTe 150/T150 Nautic Cut Out
Drawing
Cut out dimensions: 369.0 x 324.0 mm, tolerance +1 mm. 15 mm is required
for mounting screws on all sides = 399.0 x 354.0 mm.
Front plate dimensions: 412.0 x 351.0, tolerance ±0.2 mm.
Mounting method: 6 x M6x25 steel screws DIN 6912. Screws and o-ring seals
are included.
Max. 8 mm thick mounting frame.
222
333
197
394
6 x holes Ø 6.5 mm
369
+1
0
324
+1 0
55.5
197
