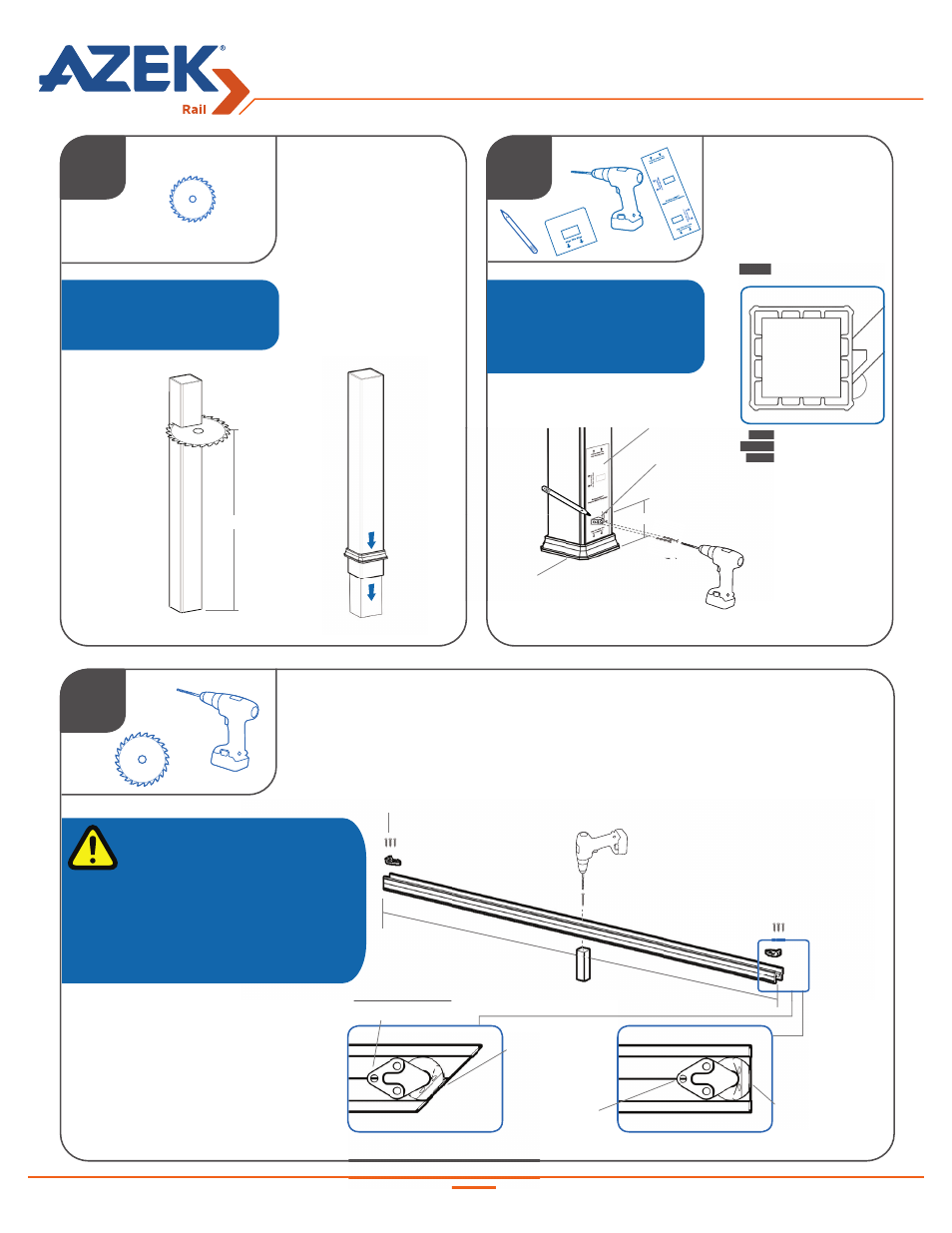

Installing AZEK Rail with CableRail by Feeney ®
40” above deck surface is
optimal for 36” railing heights. If you do not have a the
template, position
the top of the Support Block 4”
above the deck.
INSTALL LOWER
SUPPORT BLOCK
• Position template at
bottom of post
sleeve above post
skirt.
• Trim Post Sleeve to
desired length.
INSTALL POST
SLEEVE
• Slide Post Sleeve and
Post Skirt over post
(do not force).
• Ensure posts are
square and plumb.
Optimal 40”
45°
For angled rail installations
- align angled face of Support
Block parallel to rail section.
CUT AND ASSEMBLE BOTTOM SUPPORT RAIL
•Cut the Bottom Support Rail to length.
3
1 2
Straight Section Angled Section
Center screw aligned
to rail centerline
Center screw
aligned to rail
centerline Bracket set
fl ush to rail
face
Bracket set
fl ush to rail
face
Foot Block
7/64” Pre-drill
#8 x 3” Coated
Screws
7/64” Pre-drill
#8 x 3/4” Coated Screws
1/2
1/2
4”
Template
Support
Block
Post
Skirt
7/64” Pre-drill
#8 x 3” Green
Coated Screws
For sections up to 6’: Place one Foot
Block in the center of the rail.
For sections 6’ to 8’: Space two Foot
Blocks approximately at 1/3 intervals on
the rail.
For sections 8’ to 10’: Space three Foot
Blocks approximately at 1/4 intervals on
the rail.
