Installing CableRail by Feeney ® Stairs for AZEK Rail
Leave about 1” of machine thread
exposed for cable take-up.

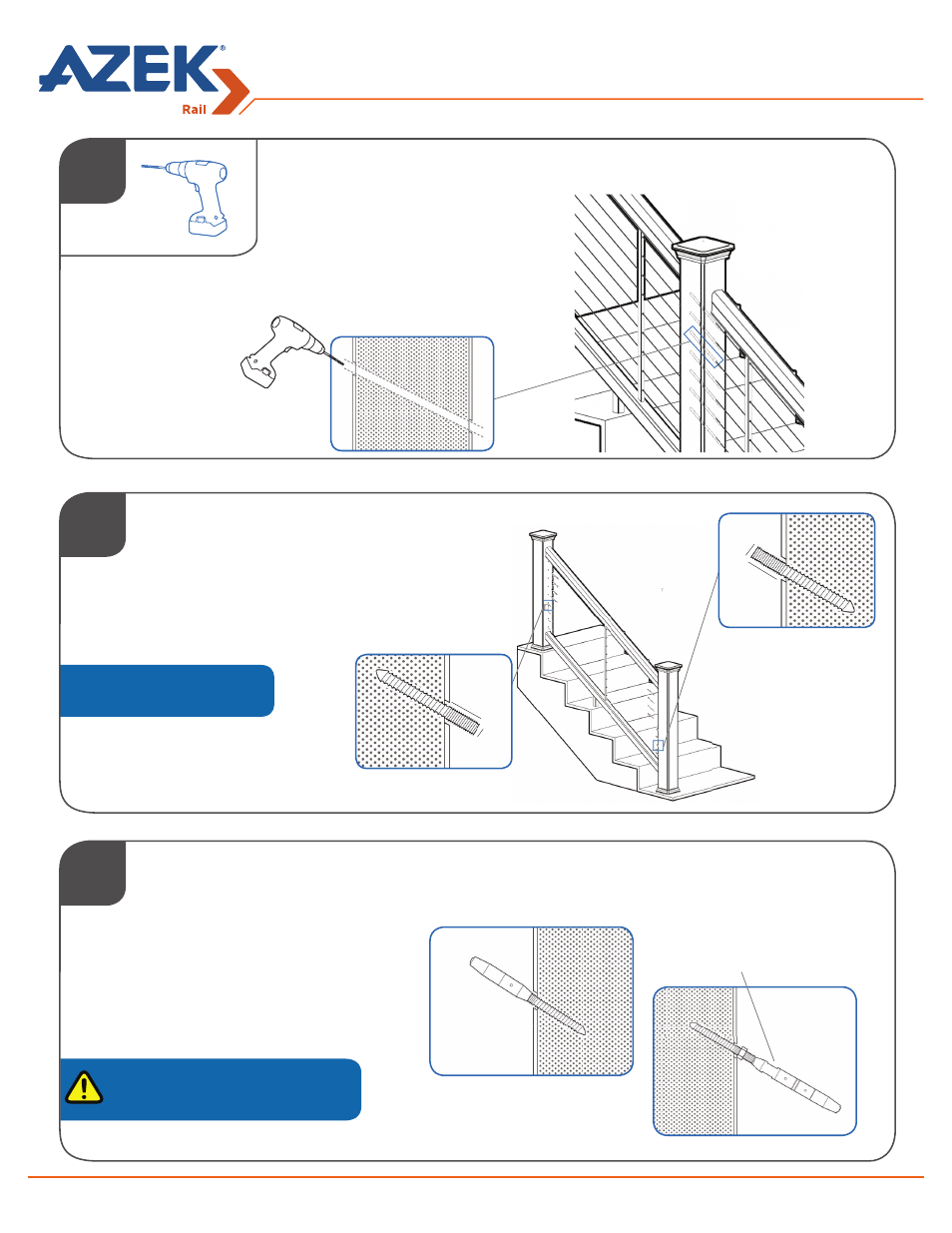

PRE-DRILL THROUGH POST SLEEVES
• Drill a 1/4” hole through both
the Post and Post Sleeve at
stair angle.
2
1/4”
DRIVE IN HANGER BOLTS
3
• Screw Hanger Bolts into the
pilot holes at the same angle of
the stairs using the Hanger Bolt
Installation Tool.
Top Anchor Post
1/4”
1”
Bottom Anchor Post
1/4”
1”
ATTACH QUICK CONNECT FITTINGS 4
• Place one Quick-Connect fi tting at one end and the Quick-Connect Swivel fi tting
on the opposite end.
One side of the railing will be only
Quick-Connect fi ttings, the other side will be
Quick-Connect swivel fi ttings and lock nuts
Quick-Connect
fi tting with Lock
Nut
On the side with the lock nuts, screw on
the Quick-Connect fi ttings after the lock
nuts, onto the hanger bolts
