Installing AZEK Rail Stairs with CableRail by Feeney

®

Pre-drill 7/64”
#8 x 3/4” Coated

Screws

Center screw
aligned with rail
centerline

4

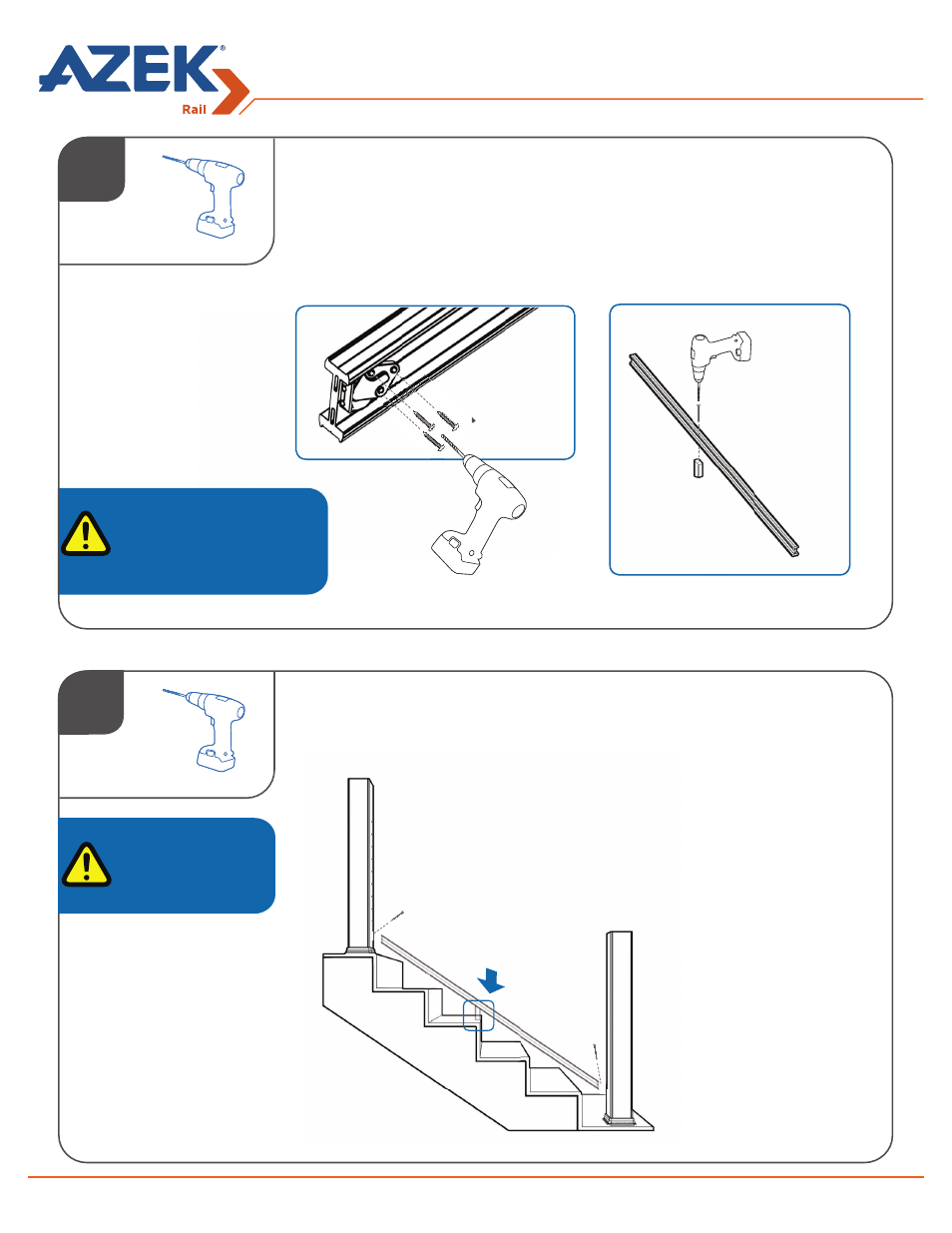

PREP BOTTOM SUPPORT RAIL

• Trim and Attach Foot

Blocks.

Pre-drill 7/64”
#8 x 3” Green
Coated Screws

Pre-drill through
Bottom Support Rail
with 3/16” bit

Bottom Support
Rail

#8 x 3” Coated
Screws

• Attach Mounting Brackets to

Bottom Support Rail.

For sections up to 6’: Place one Foot
Block in the center of the rail.

For sections 6’ to 8’: Space two Foot
Blocks approximately at 1/3 intervals
on the rail.

4

Brackets must be
installed to the stair
tread side of the rail.

5

INSTALL BOTTOM SUPPORT RAIL

• Secure Mounting Brackets.
