Assemble Bench Hanger Brackets (x2 Per Planter)
Then Assemble Planter Tub and Top Frame
Assemble Bench and Planters
2 People
Required
#10 3/4” Flat Head
Phillips Wood
Screws
(x4 Per Planter)
Top Frame
Planter Tub
9
Planter
Final
Step
Drill
1
/
4
” Diameter
Holes
1/4-20
Hex Nut
(x4)
1/4-20
Split Lock
Washer
1/4-20 Flat
Washer
(x4)
1
/
4
-20 x 1
3
/
4
” Hex
Head Screws (x4)
Hanger
Bracket
(x2)
Omit Hanger Brackets
if only building Planter.
Planter A
Planter B
Insert
vent or
plug
#3
7/16”

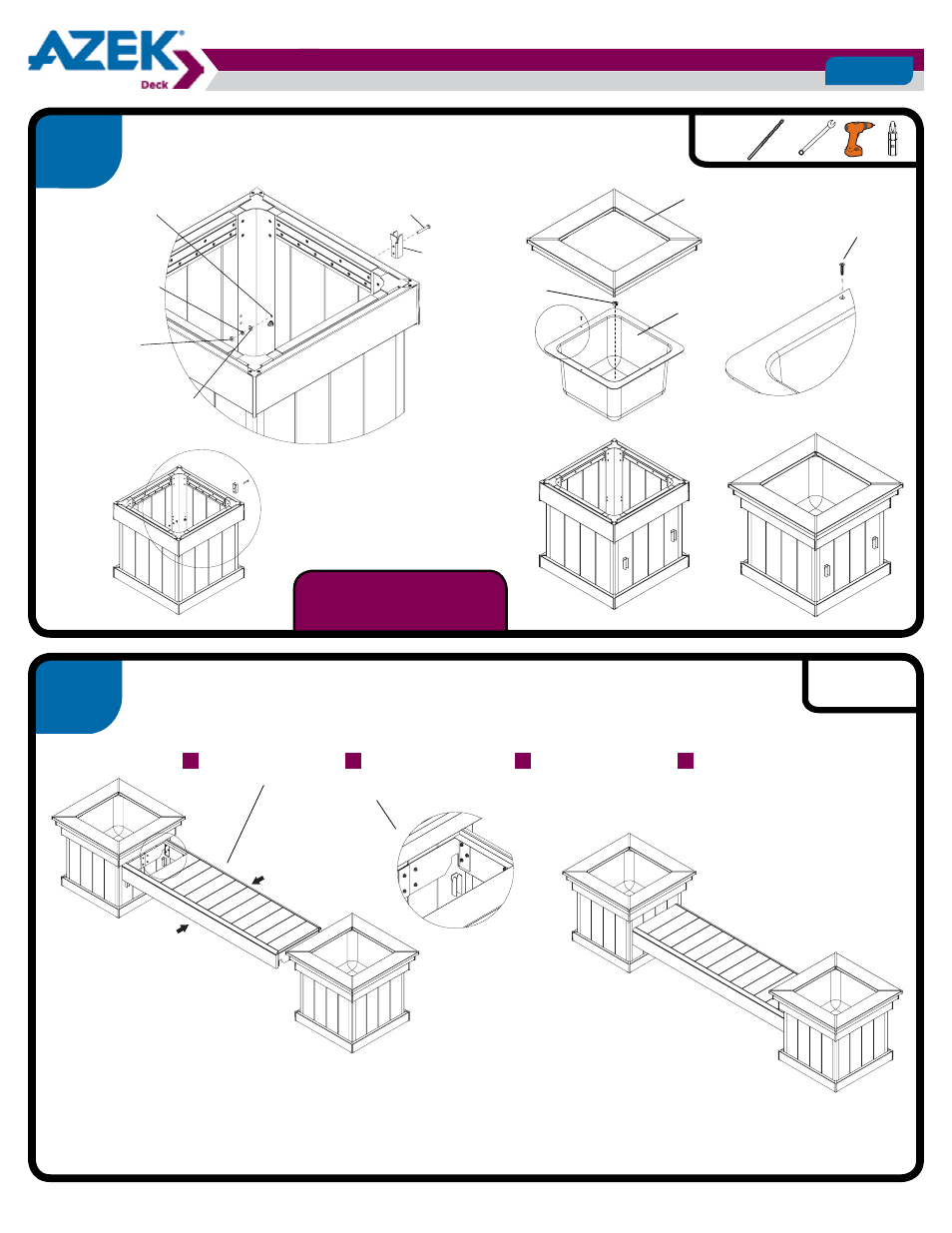

BENCH/PLANTER INSTALLATION GUIDELINES for
Arbor Collection
‰
/ Harvest Collection / Terra Collection
‰
Page 8
!
1/4 Drill Bit
1.
Position Bench
Between Planters
2.
Lower Bench onto
Planter A Hanger
Bracket.
3.
Push in Planter B.
4.
Lower Bench such that
the End Caps Engage
Hanger Brackets on Planter B.
