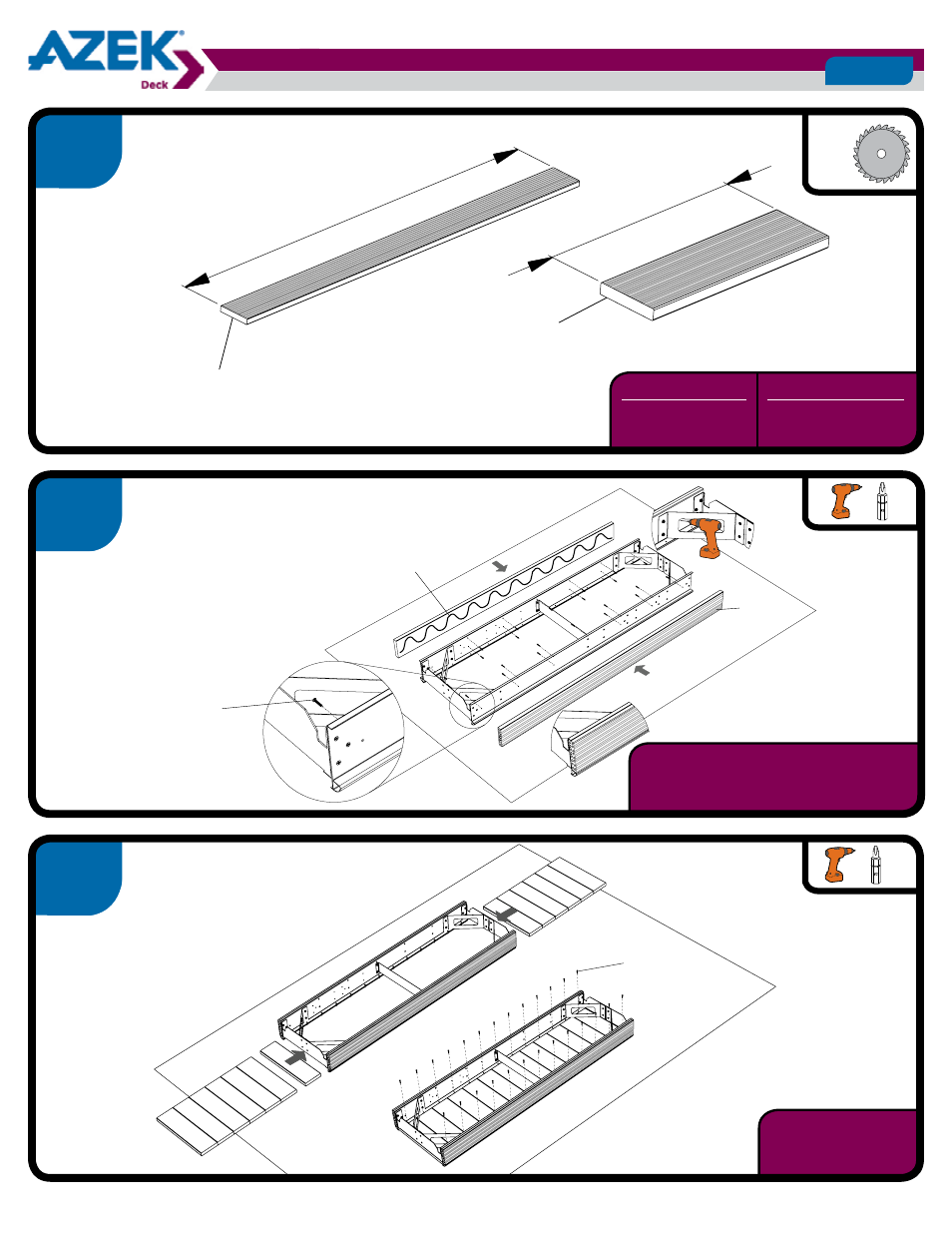

AZEK Bench Planter - Manual (Page 3)

Adjust spacing
approx. 1/32”
4
5
3
Assemble AZEK Deck Boards
Assemble AZEK Deck Boards
Use Deck Boards from Cut List
See Table at Righ
t
19”
Step 3
See Table at Righ
t
19”
Step 3
#8 x 3/4” Pan
Head Phillips
Wood Screws
Sharp Tip (x36)
Bench Trim (x2)
Bench Board
Board is flush with end and bead.
1. Lay down protection.
2. Flip unit over.
3. Apply exterior construction
adhesive.
4. Assemble Deck Boards.
Grain Side
Bench
Bench
Bench
#8 x 3/4” Pan
Head Phillips
Wood Screws
Sharp Tip (x26)
Grain side down.
Be sure to apply exterior construc-
tion adhesive to the back side of
both 72” long deck boards.
#2
Use exterior
construction
adhesive. !
#2
Bench Trim (x2)
6’ 5’ 4’
72” 61” 50”
19” Bench Boards
6’ 5’ 4’
(x13) (x11) (x9)
BENCH/PLANTER INSTALLATION GUIDELINES for
Arbor Collection ‰ / Harvest Collection / Terra Collection ‰ Page 3
© 2011 All rights reserved. AZEK Building Products, Inc. www.AZEK.com
Miter/
Chop
Saw
